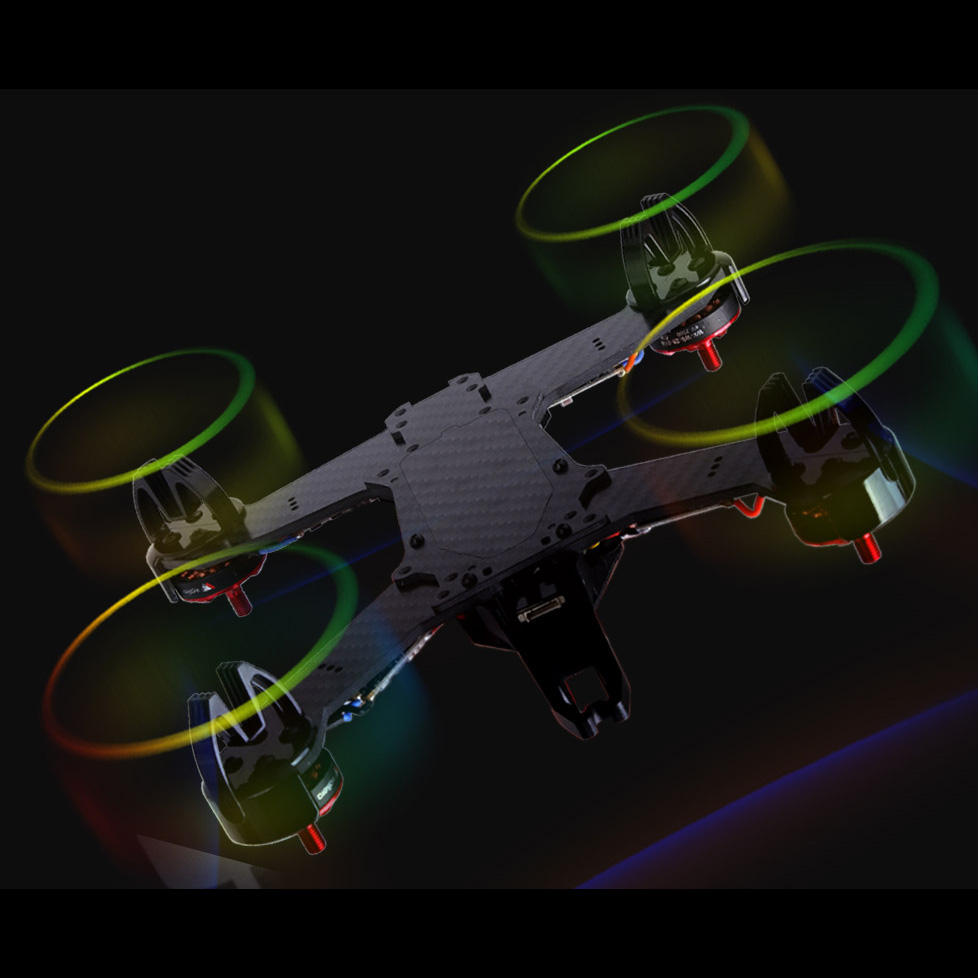

New 3D capable version of Walkera's great entry level F210 mini racing drone. The Walkera F210 3D features a strong 3mm carbon frame developed by Walkera from years of experience in structural design. Fitted with a high performance, optimized discharge Lipo battery to give extended flight times. Comes ready-to-fly with controller/transmitter included at a great price!
Features include multiple flight modes, with full aerobatic 3D capability - using direction switching motors/props - allowing flips, rolls and inverted flight. On-screen display and alarm warning indicators for better control and safety. High spec cameras with wide angle lenses offer 120 degree field of view - and night-vision capability.
This impressive packages makes an awesome fun quad flyer or full on mini racing drone. It's modular design and robust build quality offering outstanding value for demanding pilots. Optional extras include Walkera Goggle 4 FPV goggle.
Equidistant Axis Design
Standard axis equidistant design from independent research and development.Provides better agility and flexibility, while faster and easier to fly.
Demanding Flight Support
With Brushless motor plus guarded landing cushion frame design, the F210 3D edition passed various rigorous reliability tests, including drop test, crash test, bending resistance test, high and low temperature test and humidity test, which guarantee the racer’s high quality and safe flight.
Modular Design
A combination of different modules, enclosed modular design, F210 3D edition is safe, and anti-crash, easy to install and disassemble. With the latest F3D flight system, the professional speed controller and 5.8G image transmission, the pilot sets the speed freely according to their needs. By selecting and combining modules, the player can DIY the F210 3D edition to different products.
Optimized Receiver
The receiver has been optimized to improve the speed of response even faster than before, RX response 5 ms, 4 times faster in speed.
F3D Flight Control
Flight Control adopts the latest F3D flight control system, it’s design for providing a high-performance flying experience to pilot, it has a proven sensor algorithms, while providing unparalleled high performance experience, the use of a new generation of CPU concentrating all design onto a lightweight flight control, F3D flight control system will give your aircraft all the functionality required, whether you are doing FPV competitions, aerobatics, aerial photography, it will be perfect. Player can also adjust parameters according to their needs.
Brushless ESC
Small size, high efficiency, full-featured, light weight, easy to install, good stability, it has many years of experience in ESC manufacturing and high-quality technical support services, by optimizing not only can improve the positive and negative acceleration, but also improve the highly resistant of current capability, and and better capability of resisting disturbance, greatly reduce the possibility of loss of control. Let F210 3D Edition become more stable and can break the routine play in racing flight.
On-Screen Display
F210 3D edition with OSD bring you more novel and convenient interactive experience. Optimzed OSD, Lock/Unlcok, Low battery indication, Horizon line and Signal receiver alarm functions Get more information in-flight. Making racing drone control easier and safer with Optimized OSD.
Mushroom Antenna
Ultra-long transmission range, real-time obtain the flight status and flight data, transmission distance over 800 meters, even in the FPV flight, the screen effect is very smooth,
Night Vision HD Camera
The camera has one million pixels, high-definition night vision lens and high-performance sensors, its photosensitive sensors can automatically adjust according to the brightness of light. When in dark places, the chip can easily switch to infrared surveillance mode to ensure the aircraft traverse normally. There is no restriction to the light, so the players can fly the racer at daytime or at night.
Super Vision Camera Lenses
In pursuit of larger vision and clearer pictures, the Walkera F210 3D uses a night vision camera lens which has a large field of view of up to 120 degrees. The camera will give you strong visual impact and make the flights even more impressive. An additional camera mount also allows the fitting of a GoPro or similar sized camera.
Specifications
|
Main Rotor Dia |
128mm |
|
Overall (L x W x H) |
182x182x103mm |
|
Weight |
370g(Battery included) |
|
Remote Controller |
DEVO 7 / DEVO F7 |
|
Receiver |
DEVO-RX713 |
|
Main Controller |
FCS-F210(F3D) |
|
Transmitter |
TX5825(FCC)/TX5824(CE) |
|
OSD |
F210 OSD |
|
Brushless Motor |
WK-WS-28-014A(CW/CCW)KV2500 |
|
Brushless ESC |
F210 3D(CW/CCW) |
|
Battery |
14.8V 1300mAh 40C 4S Li-PO |
|
2D Flight Time |
8~9mins |
|
3D Flight Time |
About 5mins |
|
Working environment |
-10℃ ~ +40℃ |
Camera（700TVL）
|
Horizontal Resolution |
700TVL |
|
System Commitee |
PAL/NTSC |
|
Video Out |
1.0Vp-p/75Ω |
|
Power Input |
DC 12V |
TX5825(FCC)/TX5824(CE) transmitter
|
5.8G wireless |
image transmission |
|
TX5825(FCC) Bind B section |
4 channels |
|
TX5824(CE) Bind B section |
8 channels |
|
TX5825(FCC) output power |
≤200mW |
|
TX5824(CE) output power |
≤25mW |
