Almost as if it came out of the "honey, I shrunk the kids" movie from 1989. Things are getting big!

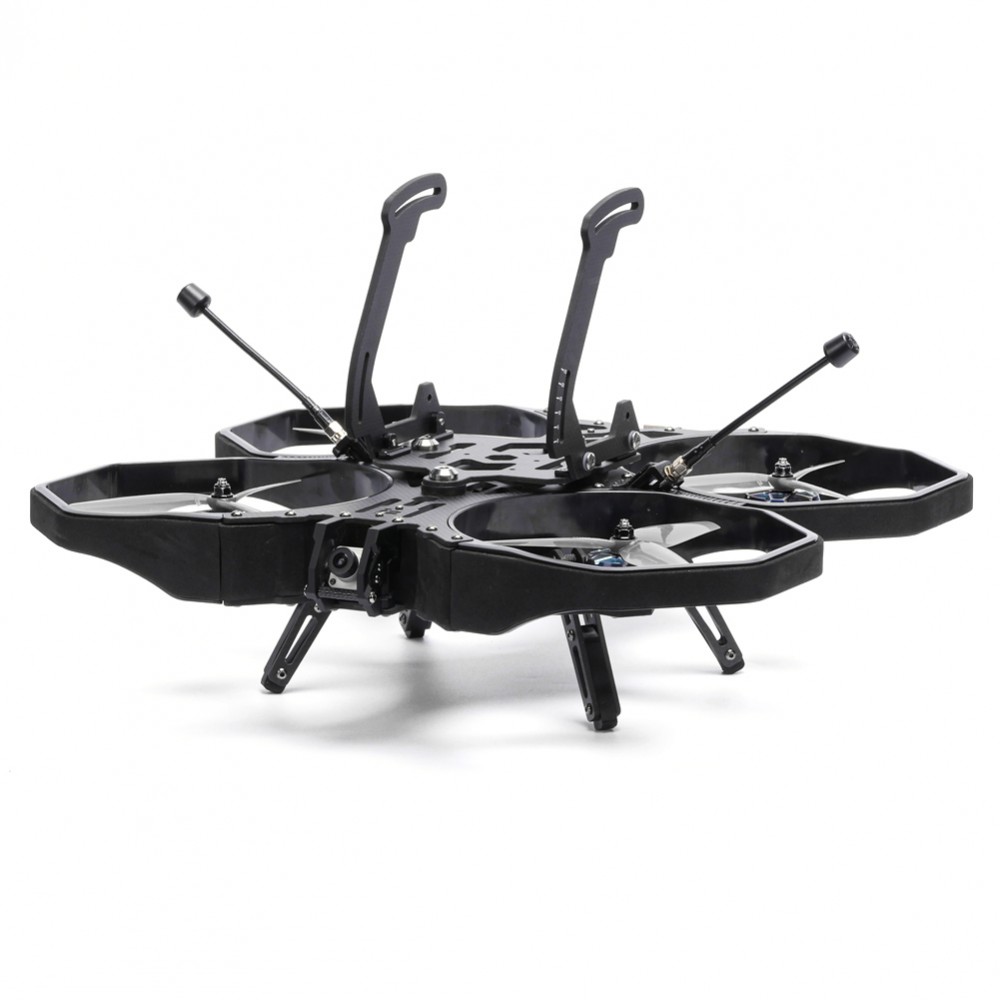

Let's introduce our latest member to our ProTek family, the all-new iFlight ProTek60 Cinelifter!
We've came a long way with action cameras, offering outstanding quality with little weight and a small footprint. But do you want to get professional or shoot some commercials, maybe get into cinema videography? Well, then you need to step up your game. Those cameras offer higher quality but bigger lenses, higher weight in exchange with all the dynamic range, color profiles and crisp footage you might possibly want.

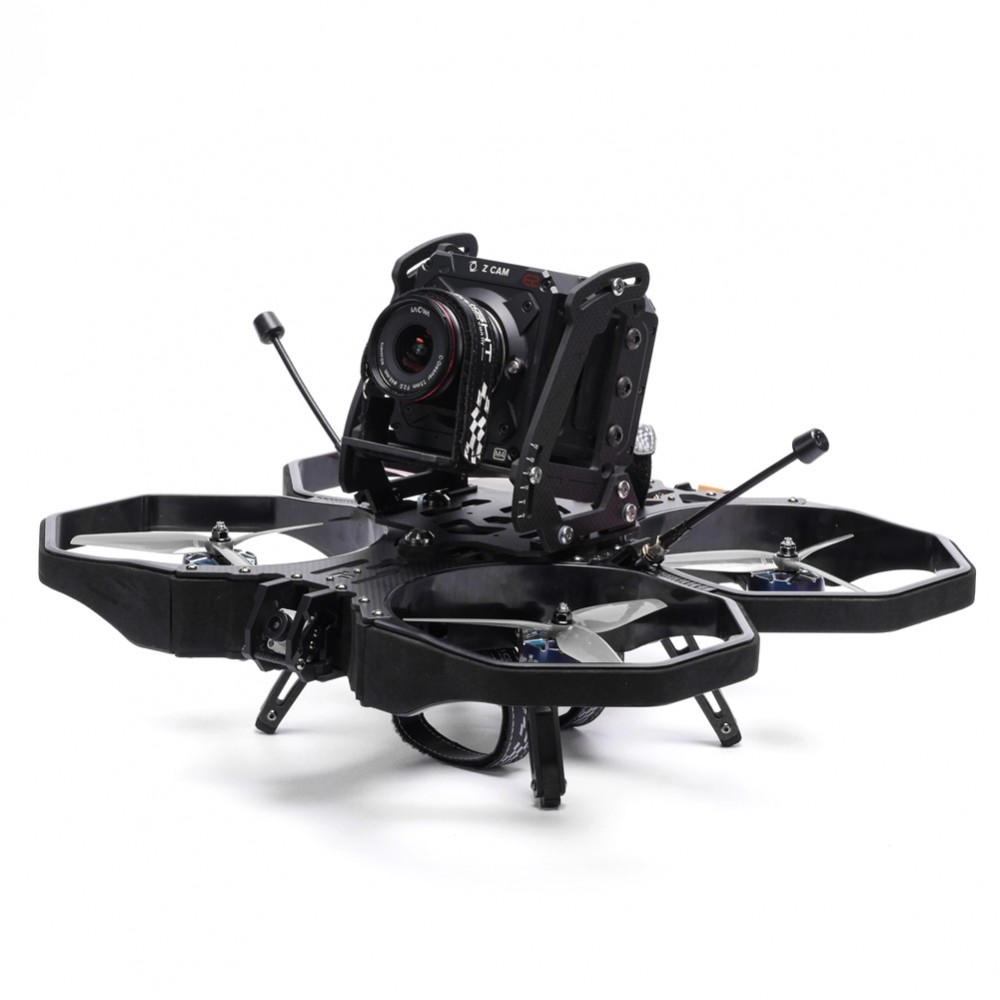

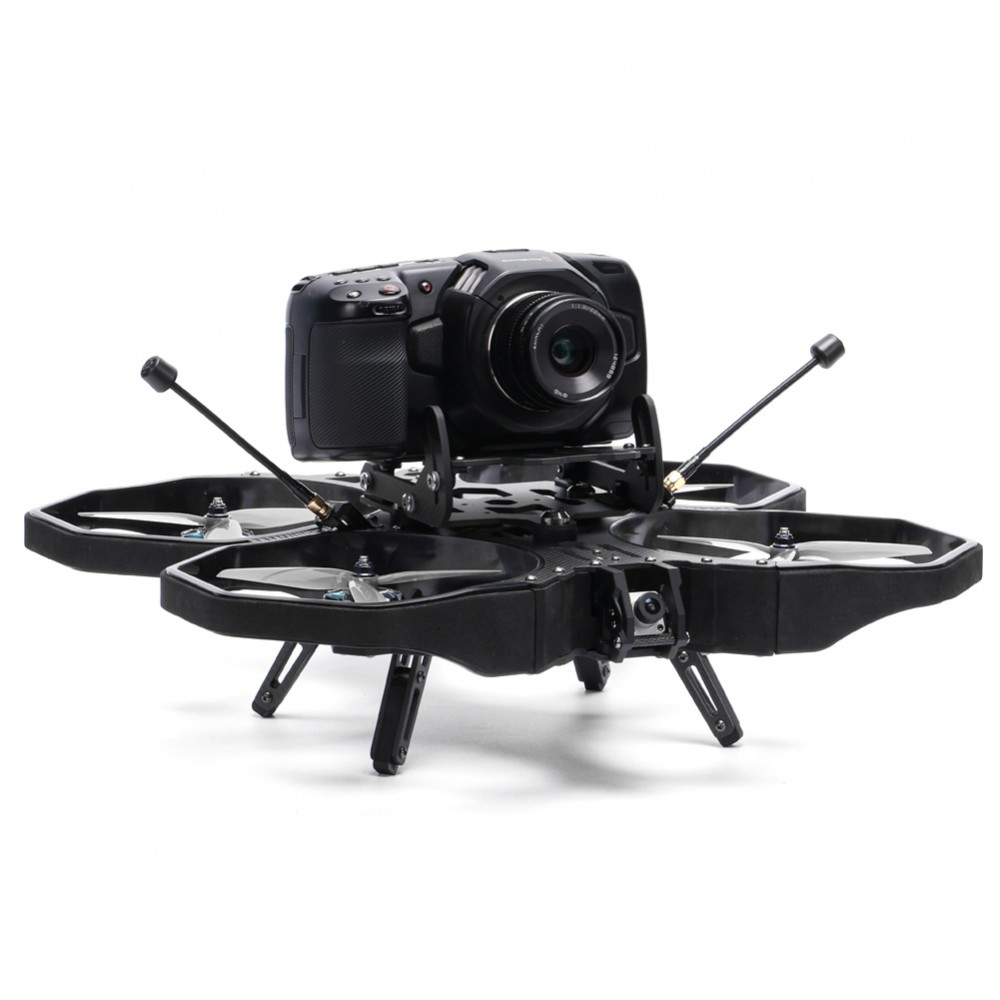

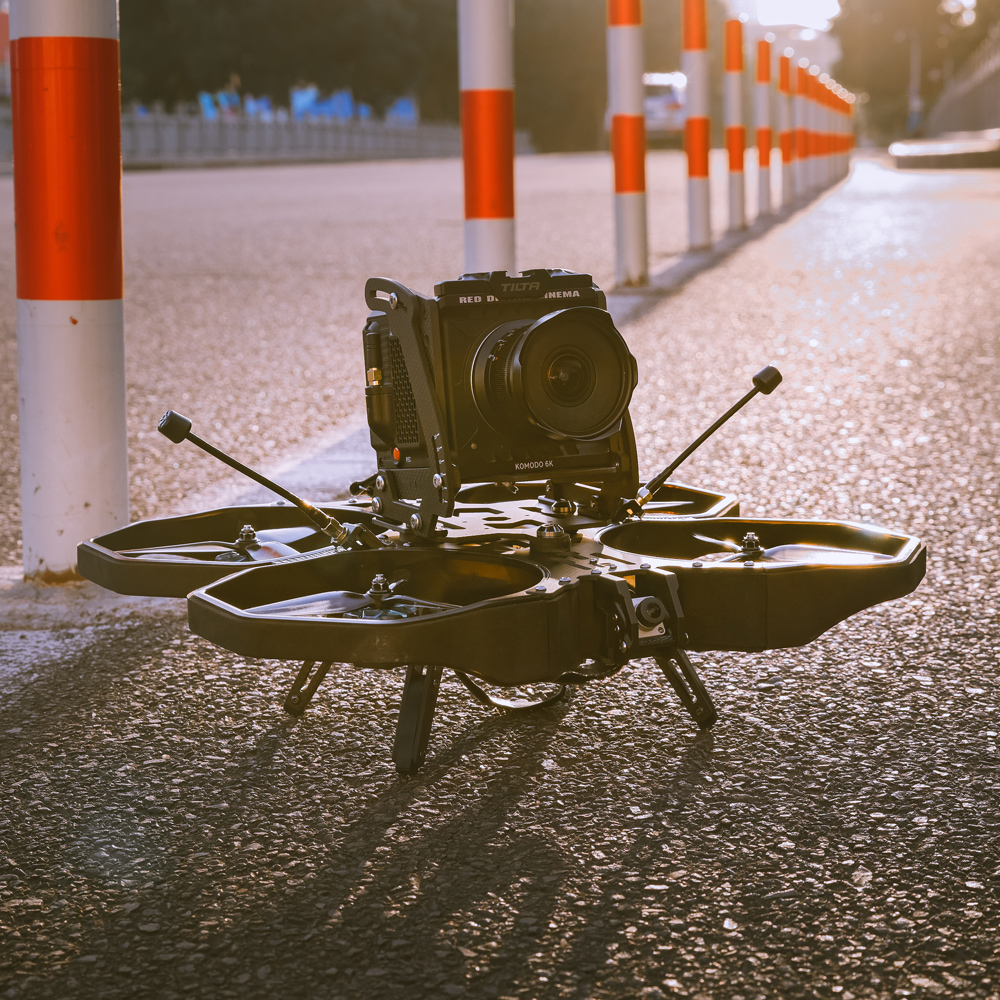

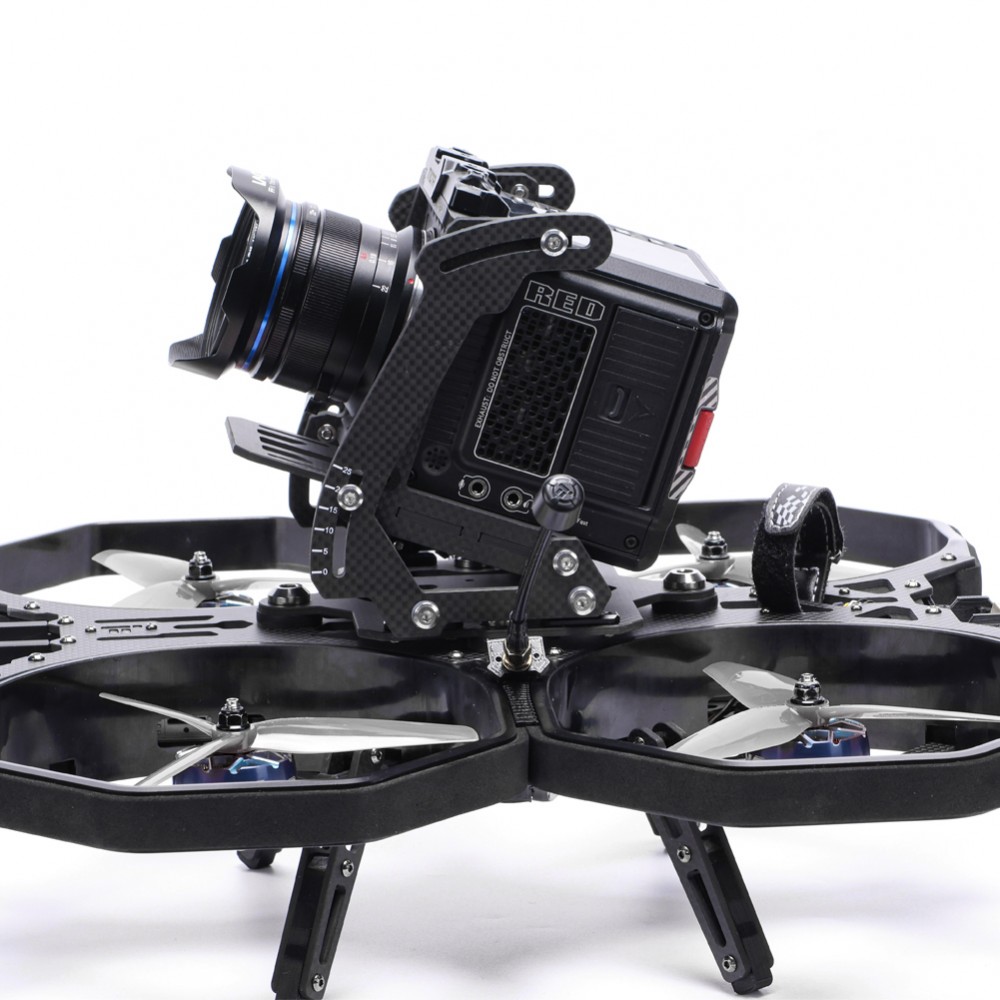

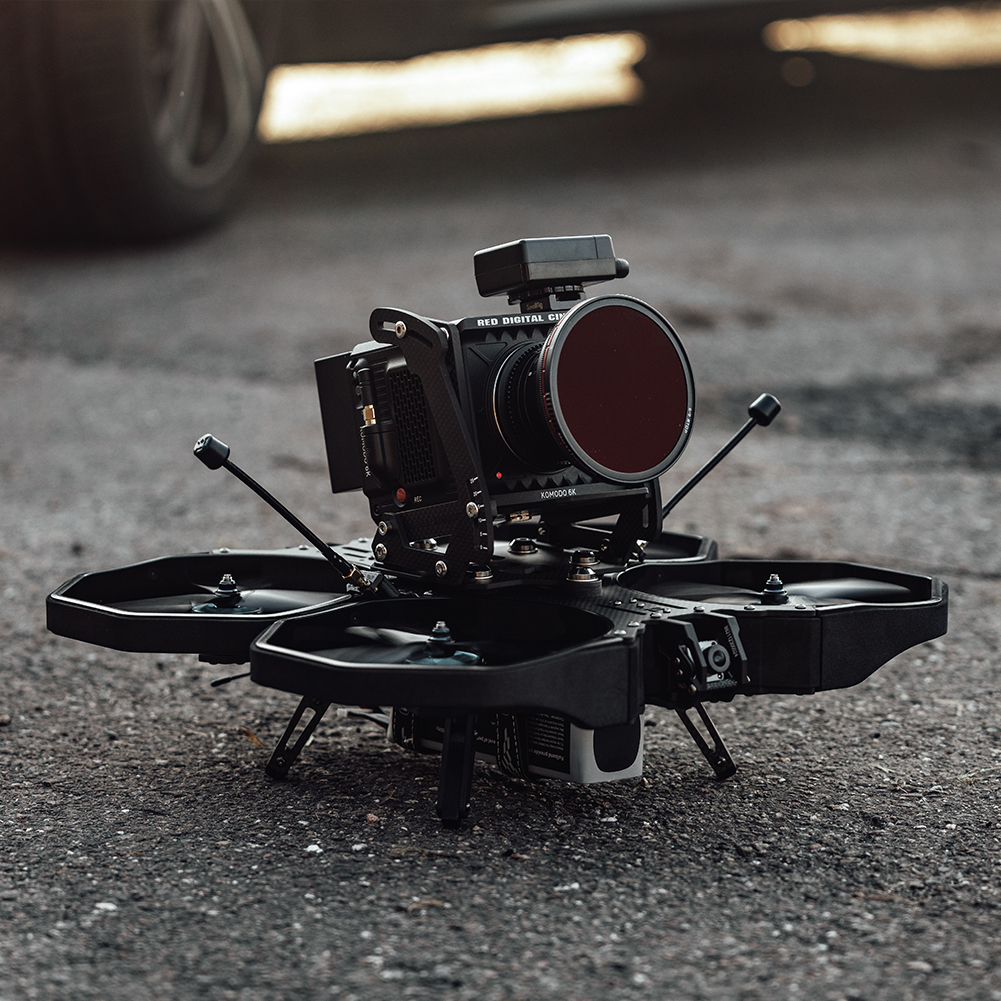

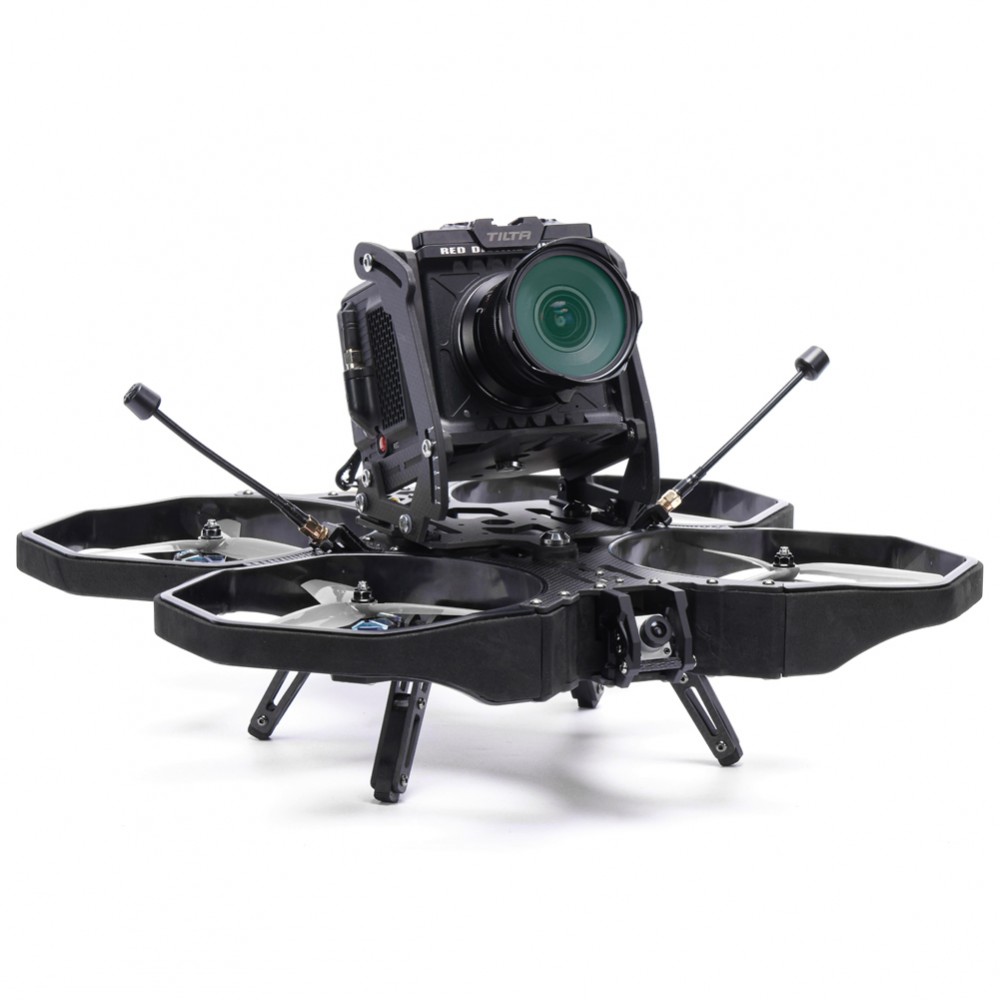

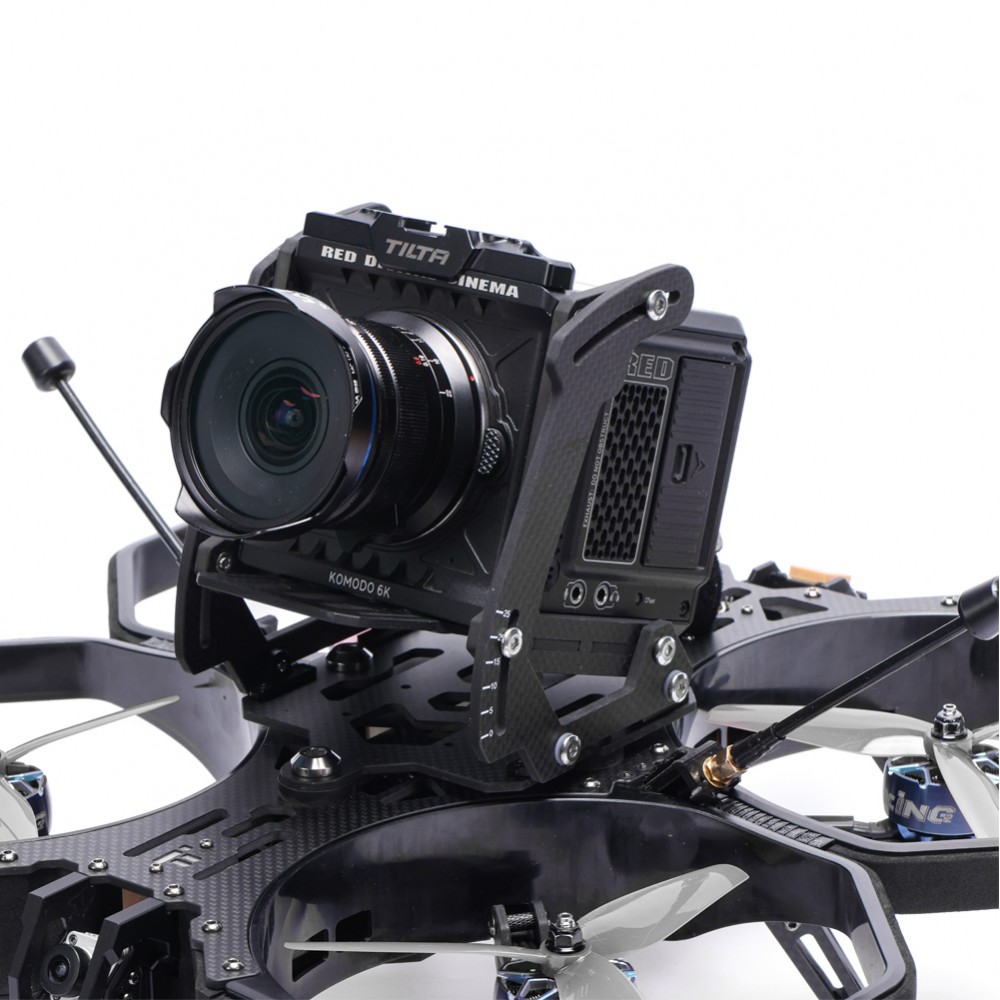

This rig was designed for a Komodo, Zcam, BMPCC or even a GH5. It fits right onto, safe and tight.
Recommended battery size: 6S 3700mAh - 6S 4500mAh
Estimated flight time: 3-6 min (depending on battery and your take-off weight)

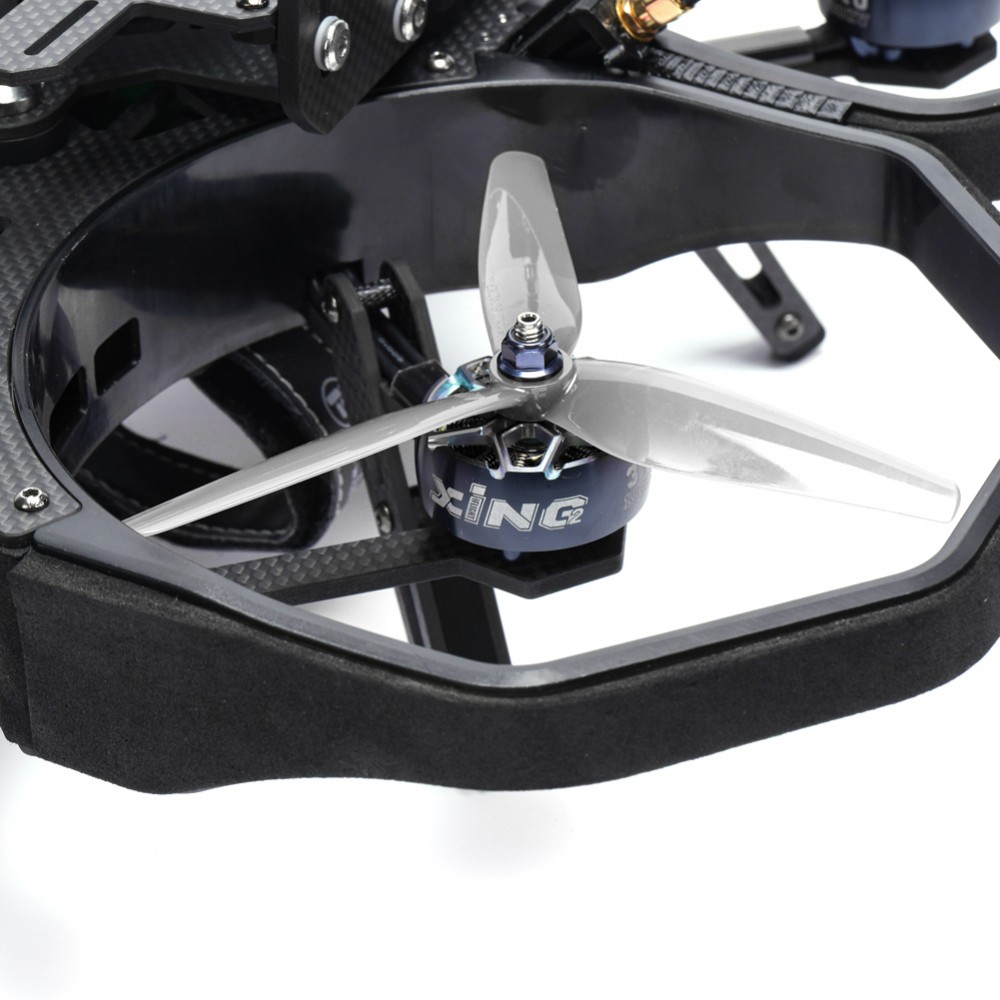

Highlights and Features:- Protected Propellers for indoor and outdoor use, protecting whatever you might bump into from nasty cuts

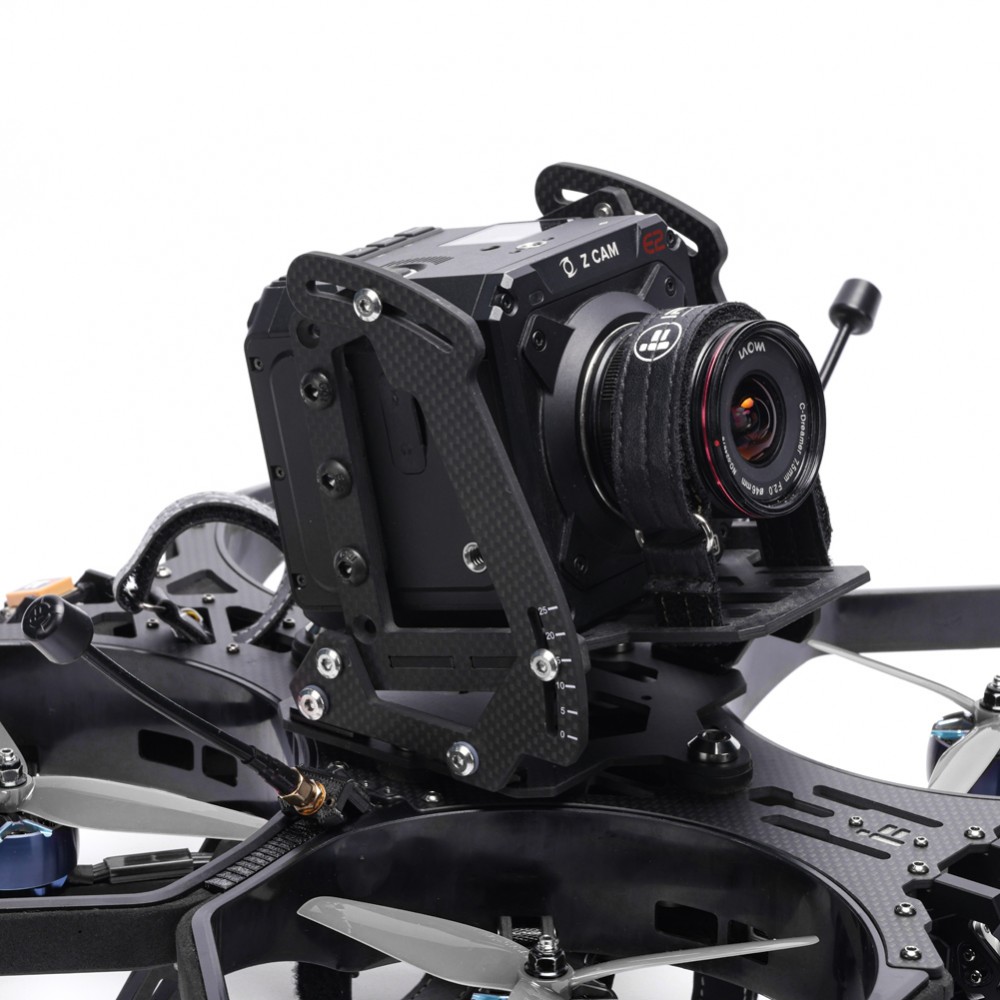

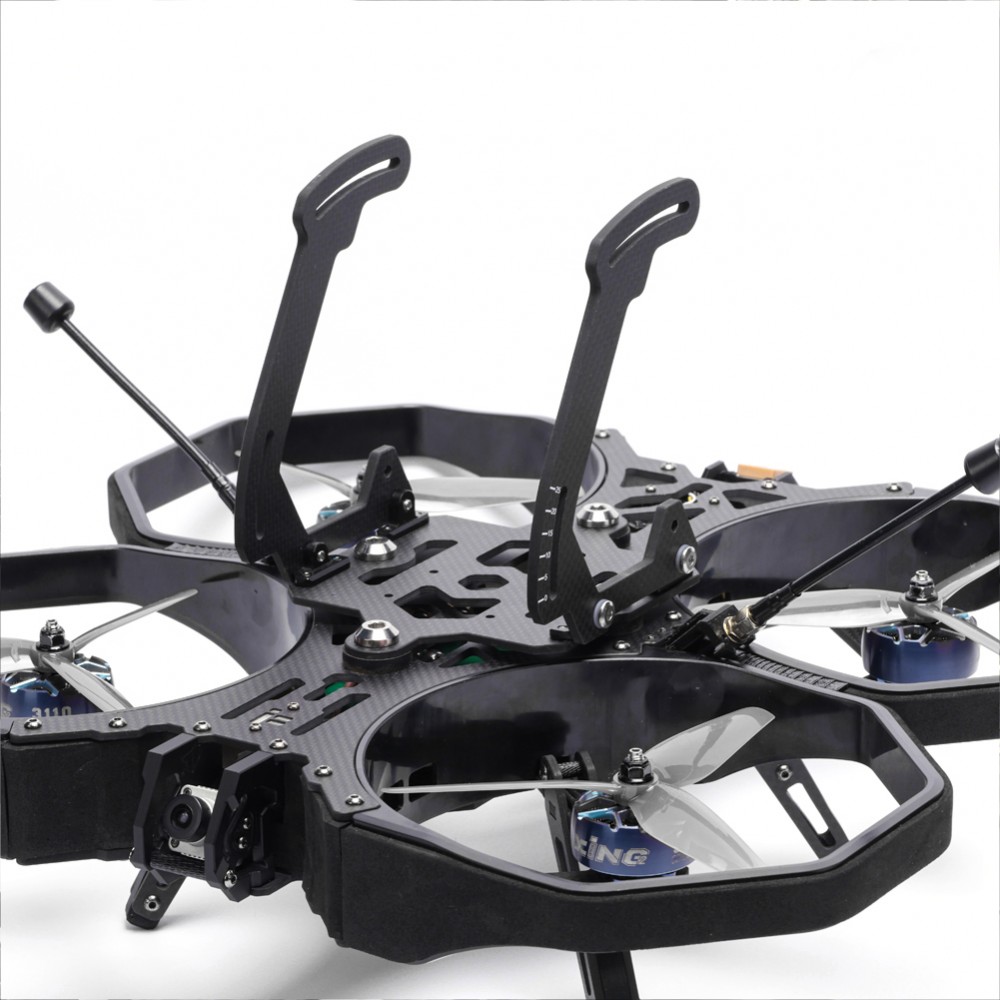

- Universal camera mount and accessories for a wide range of cameras to install

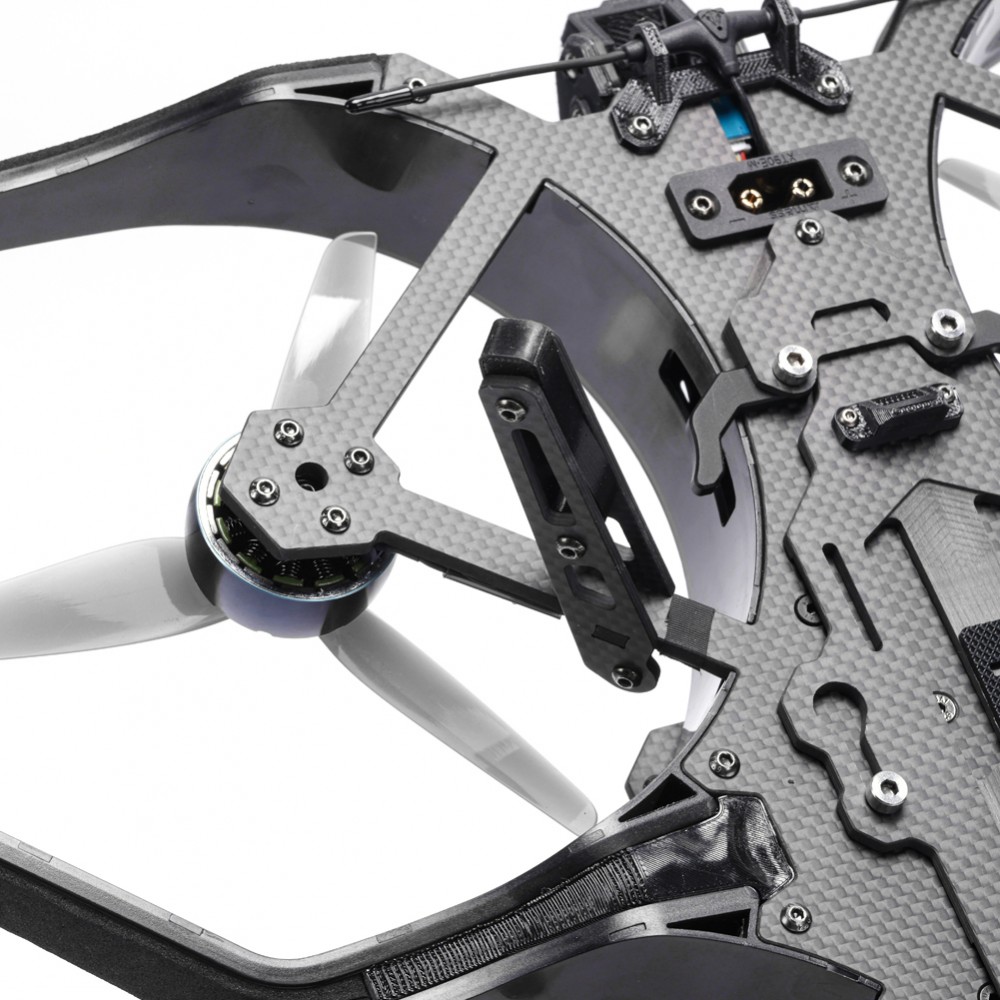

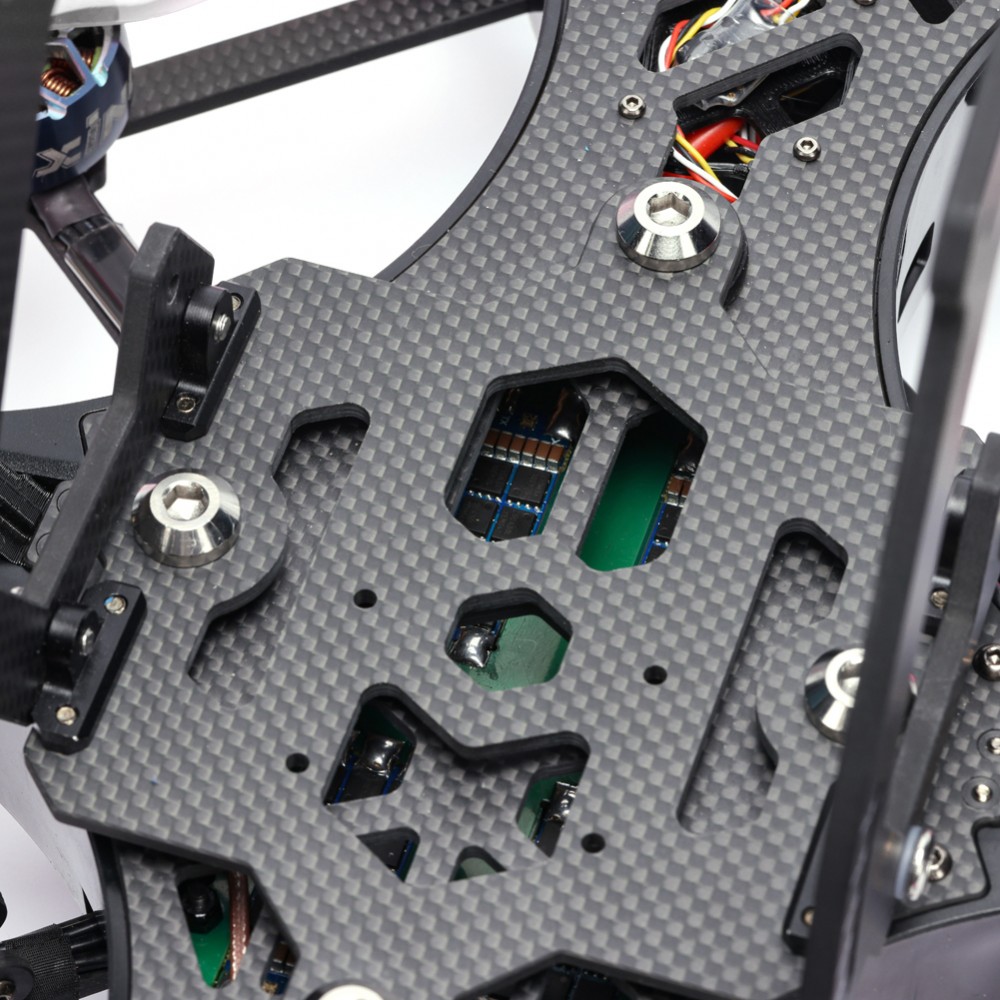

- iFlight ESC Commander PCB // Power distribution board with high capacitance and heat dissipation
- Single X-Class grade ESC motor drivers for more power and reliability
- Big size XING2 3110 // The power motors with extreme lift and flight performance
- GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)
- Up to 110 km/h // 1.5 kg payload // Total lift off weight up 3.5 kg (recommended max. MTOW)
ProTek60 Pro BNF Specs:- BLITZ F7 Flight Controller
- SucceX X80A X-Class ESC
- Motor: XING2 3110 1600KV
- GPS module: iFlight M8Q-5883-GPS & Compass V2.0 (LINK)
- Wheelbase: 282mm
- Body Size: 380*351mm
- Top and bottom plate spacing: 35mm (aluminum standoff height)
- Propeller size: 6 inch
- Weight: 1330g (without battery)
FC // BLITZ F7- MCU: STM32 F722
- Gyro: MPU6000
- Baro: NO
- OSD: AT7456E
- BEC:5V 2.5A
- BlackBox:32MB
- UARTs: 6
- Smart audio / IRC Tramp VTX protocol supported
- WS2812ledStrip: Yes
- Bepper: Yes
- Firmware Target: IFRC-IFLIGHT_BLITZ_F722
- Mounting pattern: 30.5*30.5mm/φ4
- Dimensions: 36.5*35mm
- Weight: 7.8g
ESC // iFlight ESC Commander PCB (4x SucceX X80A)- MCU: G071
- Capacitance per ESC: total 240UF Low ESR
- Current Sensor: Yes
- Input: 2-8S LIPO
- BlHeli32 telemetry: Yes
- BEC: No
- Supports up to DShot DShot150/300/600/1200/MultiShot/OneShot PWM Drive
- Firmware Target: iFlight-BL32-PRO
- Weight:8.1g
- Dimension: 40*17mm
ProTek60 Pro HD BNF Included Components and Parts1x Pre-built and tested ProTek60 Pro
1x Fullsend X 6S 75C 4500mAh
1x DJI FPV Air Unit Module + Camera
2x Albatross LHCP 5.8GHz 100mm SMA FPV Antenna
4x 6x4x3 Propellers (Color may vary)
2x iFlight Lipo Strap 20*295mm (Black)
1x Battery Quick Mount
1x Prop Wrench
1x XT90 Male to XT60 Female Adapter Wire
Note:All iFlight BNFs are tested before shipment to guarantee the highest quality.
If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
iFlight takes no responsibility for issues with DJI or Caddx 3rd party gear (Video transmitters, Goggles, Radios, etc) and must be directly reported to www.caddxfpv.com/pages/contact-us or www.dji.com/support.
Tips: If you choose an aluminum case, we will pack the ProTek60 in the aluminum case for delivery.
