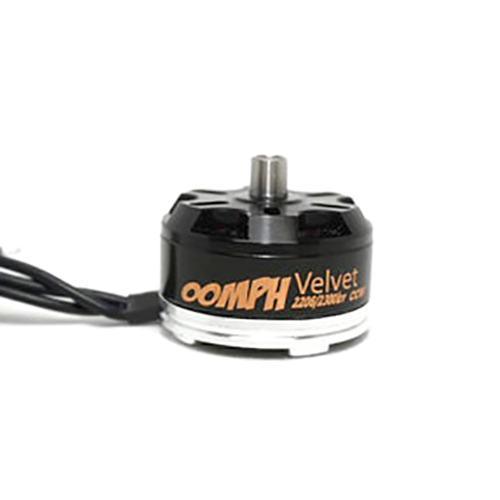

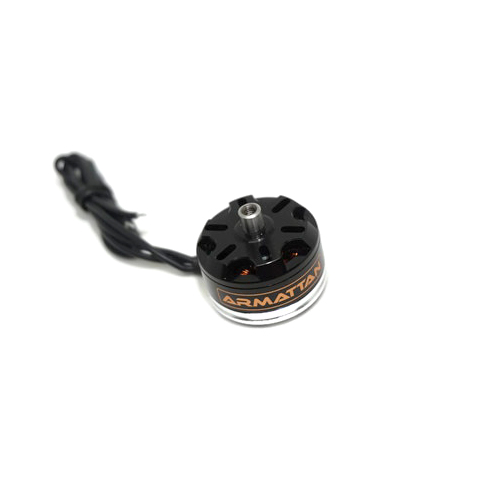

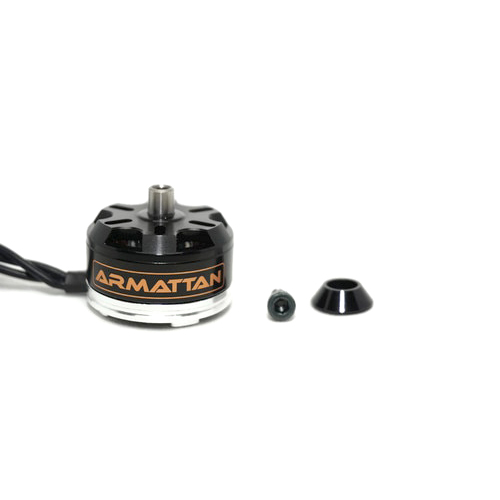

*Please select clockwise/anti-clockwise variant from option aboveIntroducing the latest addition to the Armattan Oomph line of motors. The construction of these motors was carefully selected with smoothness in mind. A lot of motors offer insane performance these days, but that usually comes with multiple drawbacks. High amp draw is the first conce... More Details
The construction of these motors was carefully selected with smoothness in mind. A lot of motors offer insane performance these days, but that usually comes with multiple drawbacks. High amp draw is the first concern. Noise and vibrations making tuning a more tedious task is another concern. And of course, if you have noise on your build, or if it is not well tuned, it affects HD footage greatly.
In other words, really high output motors are not suited for freestyle flying. They are better for racing. Flights are too short and the footage is only "OK."
-Low amp draw. Check!
-Low noise. Check!
-Low vibration. Check!
Results: Easy to tune, smooth as butter, and crisp HD footage. No less.
Motor Specicifaction
Stator Diameter
22mm
Stator Height
6mm
KV (rpm/Volt)
2300
Weight
Around 29 grams with trimmed wires
Recommended Props
5 or 6 inch
LiPo Compatibility
3-4S
Prop Mount Height
5mm
Prop Mount Diameter
Interior Threading
CW or CCW
Magnets
N54H magnets
Stator Laminations
Laminated for smoothness
Winding
Single Wire
Bearing
684 NSK 4x9x4
