*Please select clockwise/anti-clockwise variant from option aboveArmattan Introducing the latest addition to the Armattan Oomph line of motors. Titans! Much like its smaller brother, the Oomph Velvet, this 2306 version is also designed for smoothness, but with a fair bit more torque. While we continue to use our unique prop mounting sy... More Details

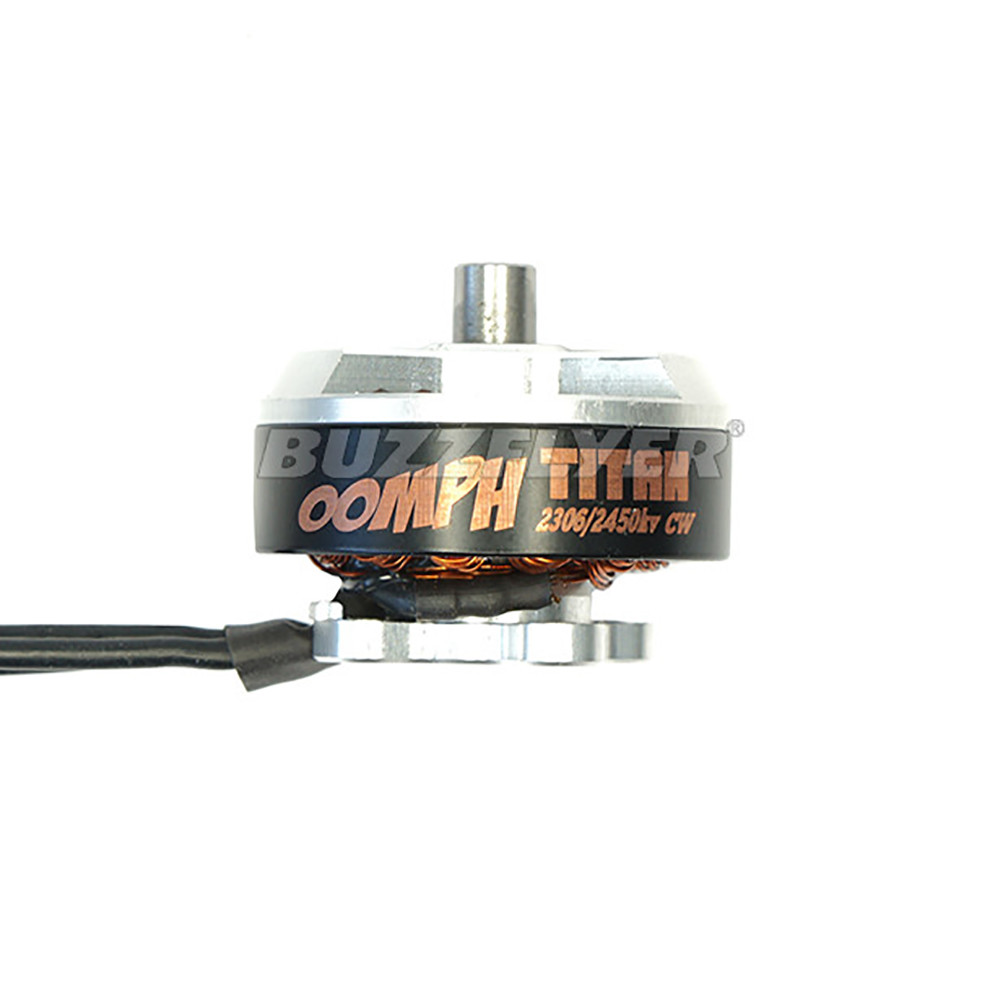

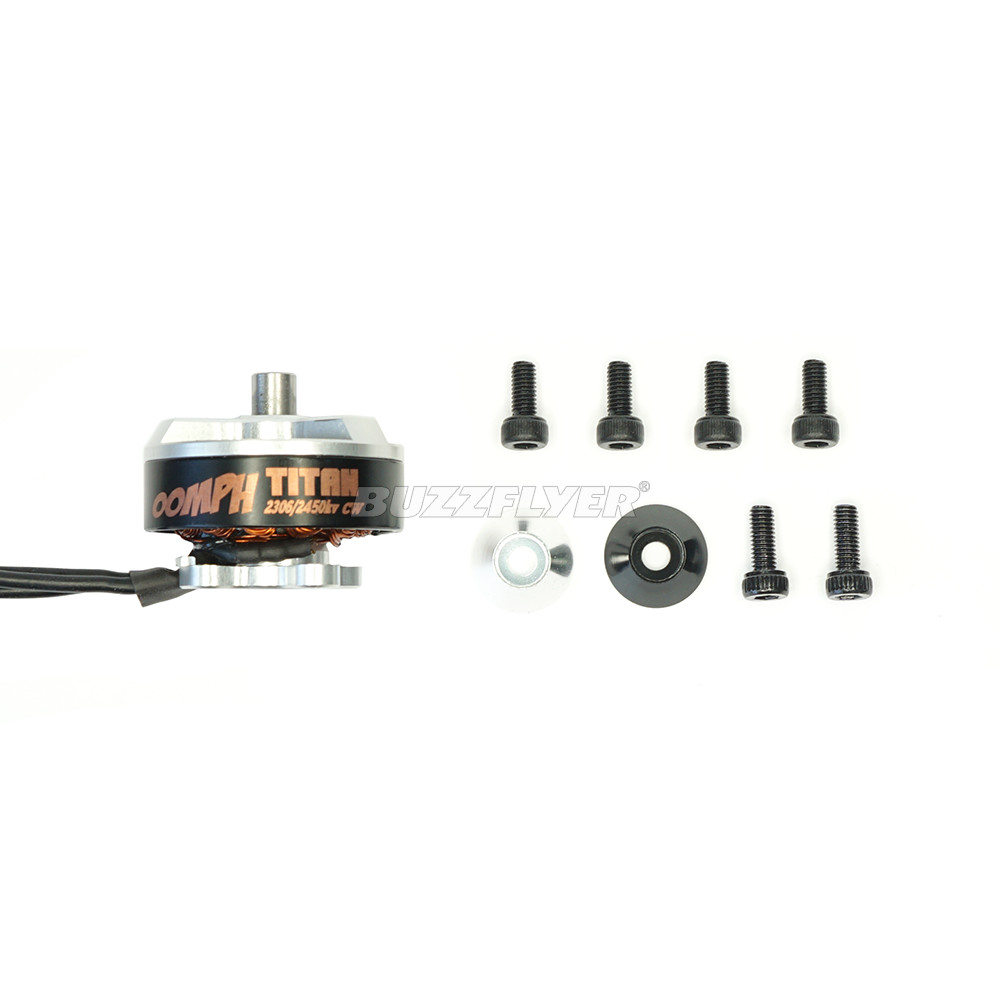

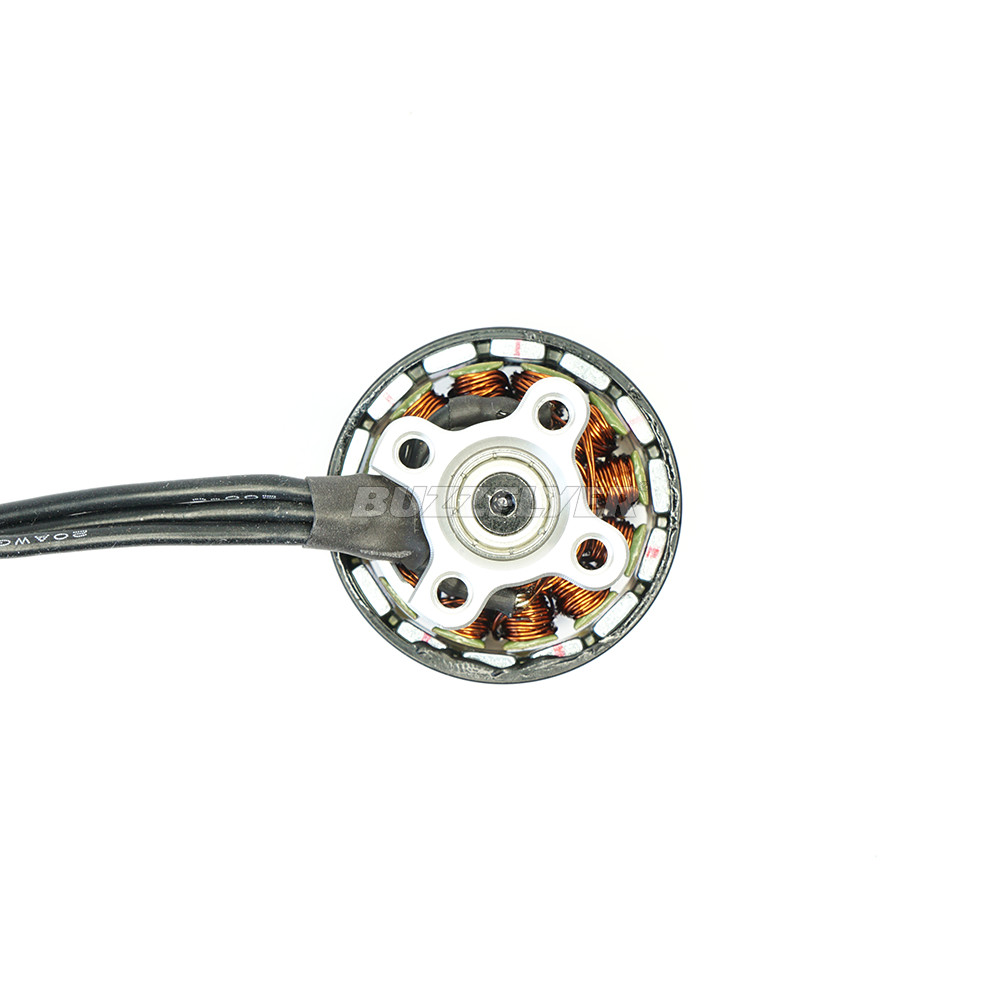

Introducing the latest addition to the Armattan Oomph line of motors. Titans!

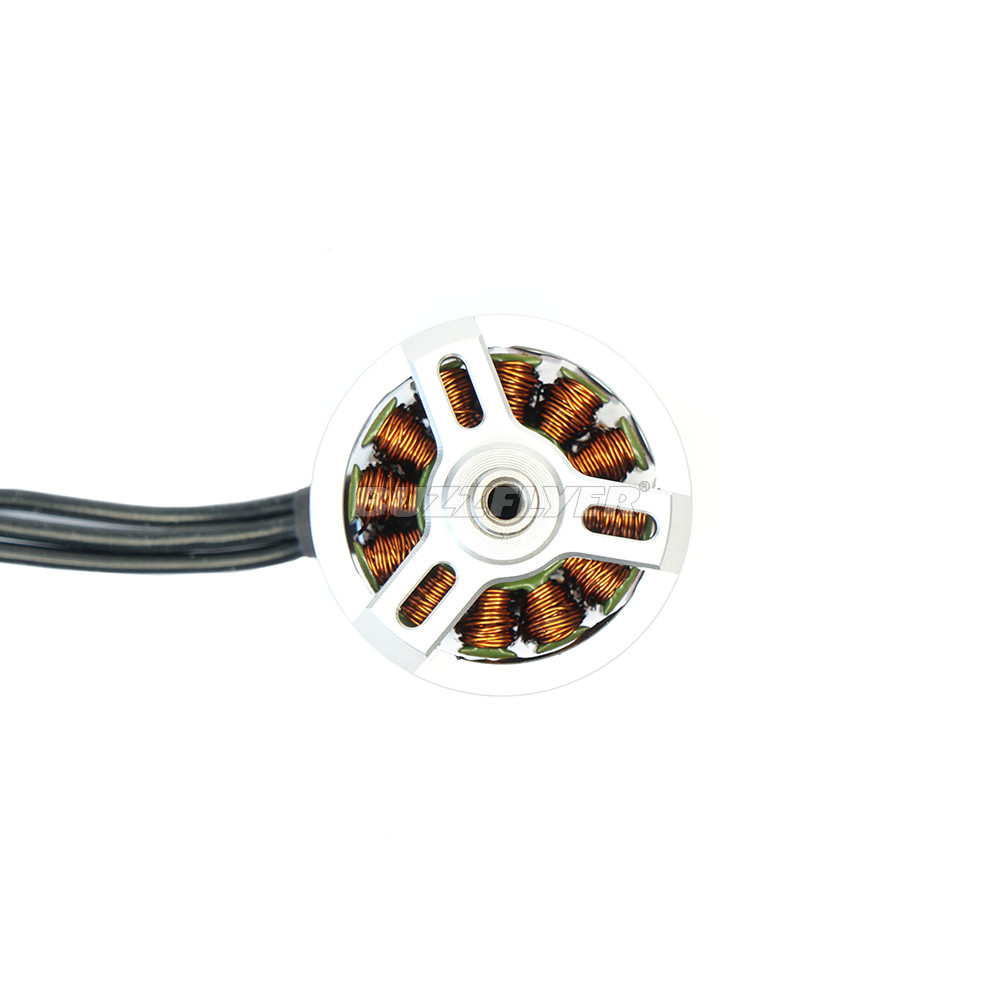

Much like its smaller brother, the Oomph Velvet, this 2306 version is also designed for smoothness, but with a fair bit more torque. While we continue to use our unique prop mounting system, we allowed ourselves to be inspired by a lightweight, 3 prong motor top design that was first introduced by RotorRiot Hypetrain Motors. We use the same prong as we do on all our Oomph motors, except we reduced it to only 3 of them and we also also shaved off the motor base to save even more weight.
Efficiency, lightweight and low amp draw and low cost without compromises is what we wanted in this motor. While we think it is better suited for freestyle, many racers will appreciate the low end torque of this new Oomph motor.
Motor Specifications
Stator Diameter
23mm
Stator Height
6mm
KV (rpm/Volt)
2450
Weight
Around 30.5 grams with trimmed wires
Wire Length
19cm (untrimmed)
Recommended Props
5 or 6 inch
LiPo Compatibility
3-4S
Prop Mount Height
5mm
Prop Mount Diameter
Interior Threading
CW or CCW
Magnets
N54H magnets
Stator Laminations
Laminated for smoothness
Winding
Single Wire
Bearing
684 NSK 4x9x4
