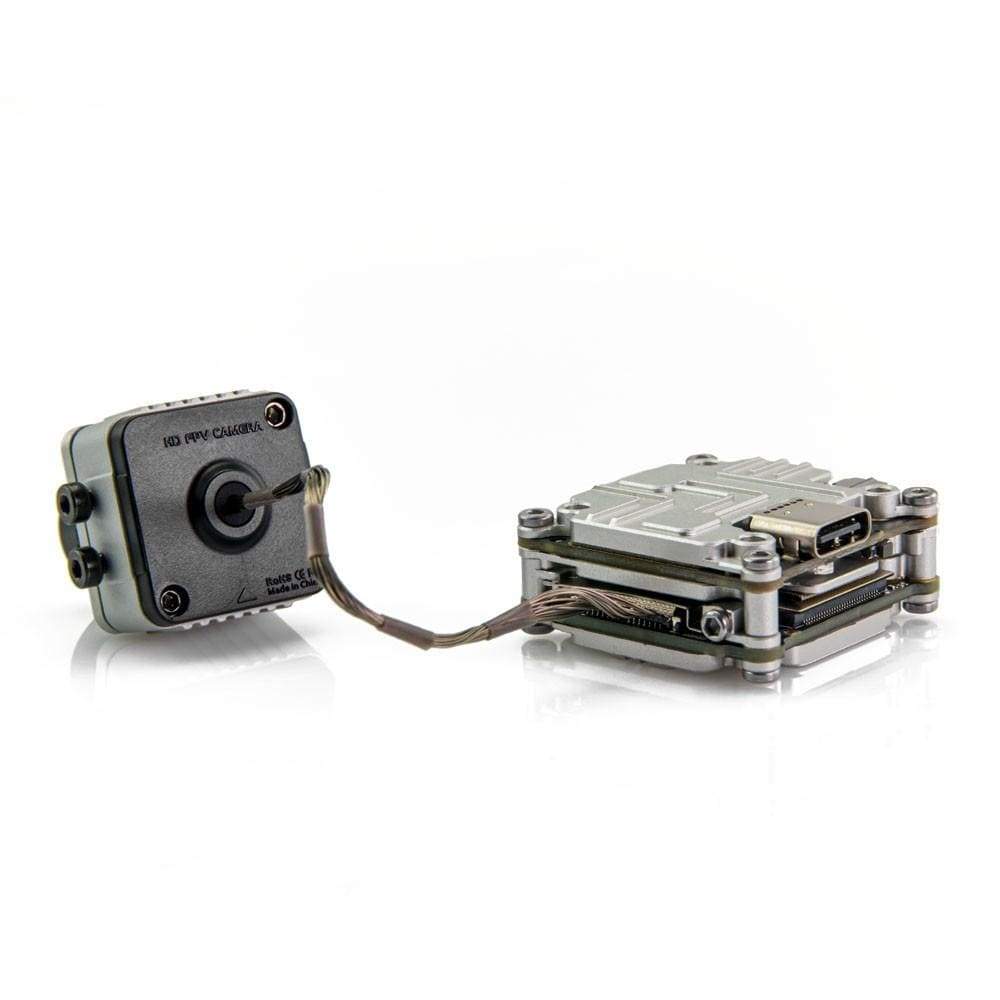

Caddx Vista

Caddx has worked with DJI to release a new generation of digital HD FPV transmitters. The Vista was fully authorized by DJI and compatible with their HD FPV System. Even better, the Caddx Vista was engineered to be lighter and smaller than the DJI Air Unit Module and also comes with mounting holes for easier installation onto your quad.

Small size, big world

• The Vista HD System is designed for small drones and whoop drones
• It can work with DJI FPV System
• Compatible with two sizes, 20x20mm/25.5x25.5mm
• Compatible with toothpick drones

Stable and Clear HD Video
User can choose 25mW/200mW/500mW/700mW from DJI FPV Goggles settings
Single-Antenna
The Vista with only one antenna, max range is up to 4 kilometers

8 Channels, 8 Drones
The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel. This helps to reduce cross-interference and provide an optimal racing experience.

Embedded Remote Controller Receiver
Users can wirelessly connect their Vista Kit to the DJI FPV Remote Controller without having to purchase additional receivers. This reduces flight preparation time significantly.
Specifications

Dimensions
Module: 30.45 x 29 x 13mm
Weight: 29g (inc. camera); Module: 19g
Antenna Connector: u.FL
Operating Frequency: 5.725-5.85GHz
Transmitter Power (EIRP)
FCC/SRRC/MIC: <20dBm
CE: <14dBm
I/O Interface: USB-C, IPEX, 3-in-1 Port
Min. Latency: Low Latency Mode (720p 120fps): 21-28ms
High-Quality Mode (720p 60fps): 30-40ms
Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7km
Input Power: 7.4-26.4v

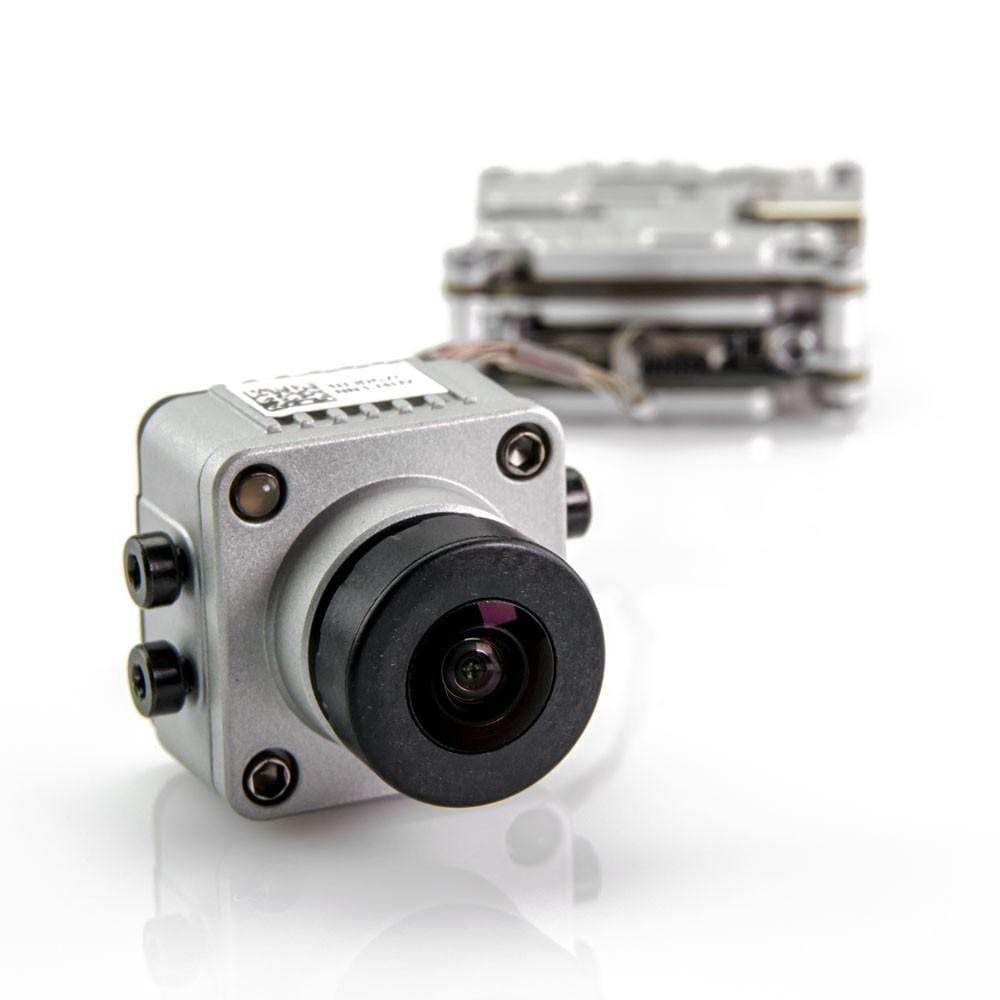

DJI Camera

Sensor: 1/3.2" CMOS
Effective Pixel: 4M
Lens: 2.1mm f/2.1
Shutter: Rolling Shutter
ISO: 100-25600
