Premium Controller with Quality Parts and FeaturesFeaturing F4 Processor and 40Amp BLheli32 with NewBeeDrone Smoov-certified hardware design that supports up to 3-6S batteries to provide the best and reliable quality and performance for either freestyle or racing.

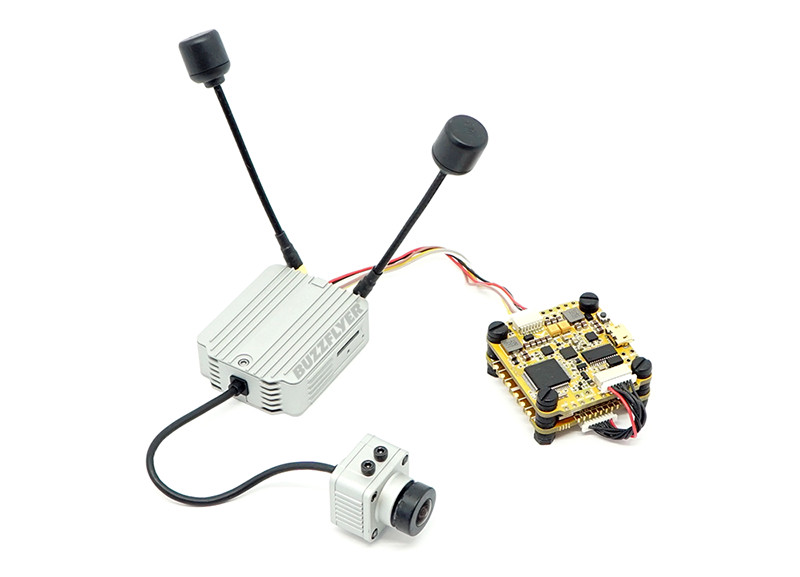

Designed to support the DJI Air UnitThough DJI Air Unit can only support up to 4S, the Infinity 30 Stack can make the DJI Air Unite compatible with 6S batteries by providing a 9V 16W clean power for the DJI Air Unit.
Plug-and-Play. No need to solder tiny wiresThe Infinity 30 Stack includes a bundle of wire to connect the Flight Controller and ESC and a bundle of wire to connect the Flight Controller to the DJI Air Unit. No need to solder any tiny wires, making it simple and clean to build.

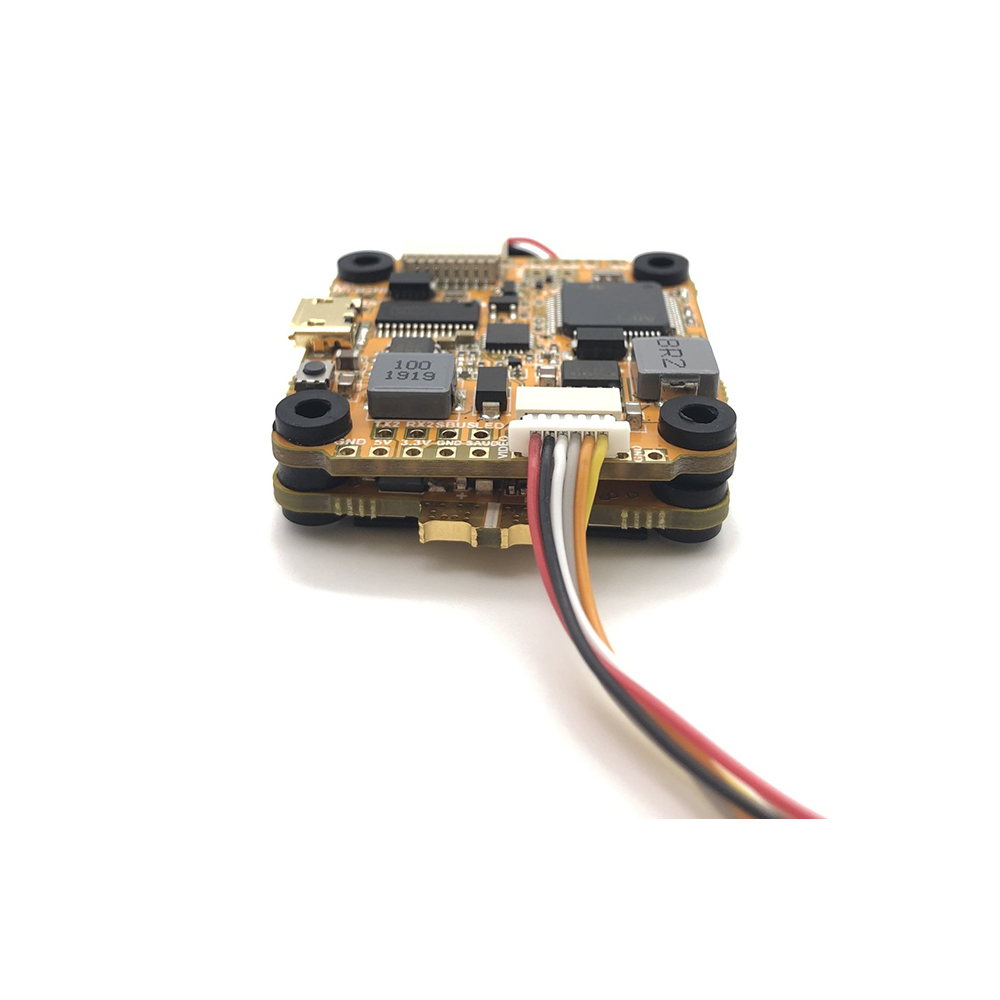

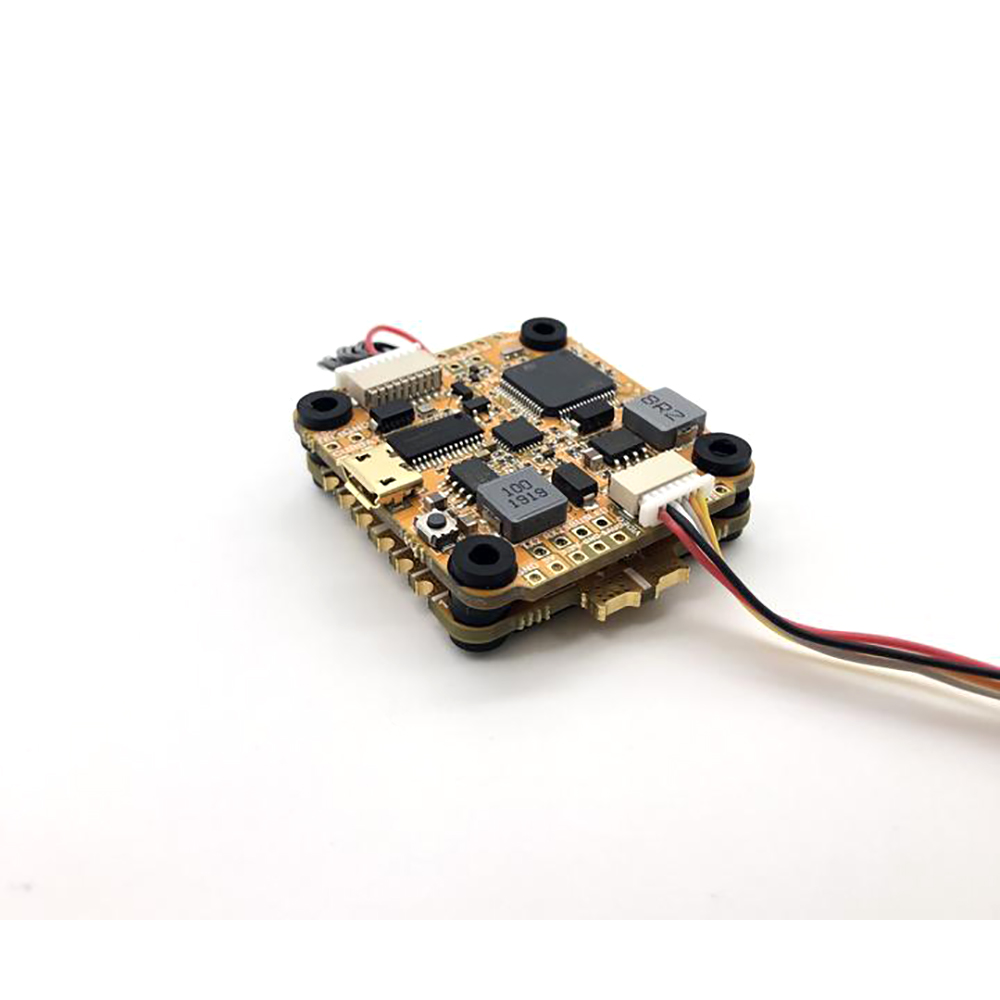

Flight Controller Spec:• MPU6000 Gyro
• STM32F405 CPUE @ 168mhz, can be overclocked
• 3-6S direct battery input
• 5V 2A
• 9V 2A 18W Design for DJI FPV Air Unit
• 5V Camera Power
• betaflight OSD
• Flat bottom PCB for SUPER CLEAN builds
• Weight / Size: 8.36g/36x39 PCB with 30.5x30.5 mounting holes 15mm stack height
• 6 UARTS. UART1 (INVERTER FOR SBUS),
• UART2 (FREE),
• UART3 (INVERTED TELEMETRY),
• UART4 (Free),
• UART5 (Smart Audio)
• UART6(Free)
• Built-in 4 IN 1 ESC socket(including ESC telemetry, External current sensor) JST1.0 8Pin
• Plug and plug with NBD Infinity30 ESC. Also compatible with most of the ESC on the market.
• Built-in solder pads for ESC signal output and power
• Printed layout instructions ON the board - no need for instructions!
• DJI FPV Air Unit socket (use UART1 and UART6)

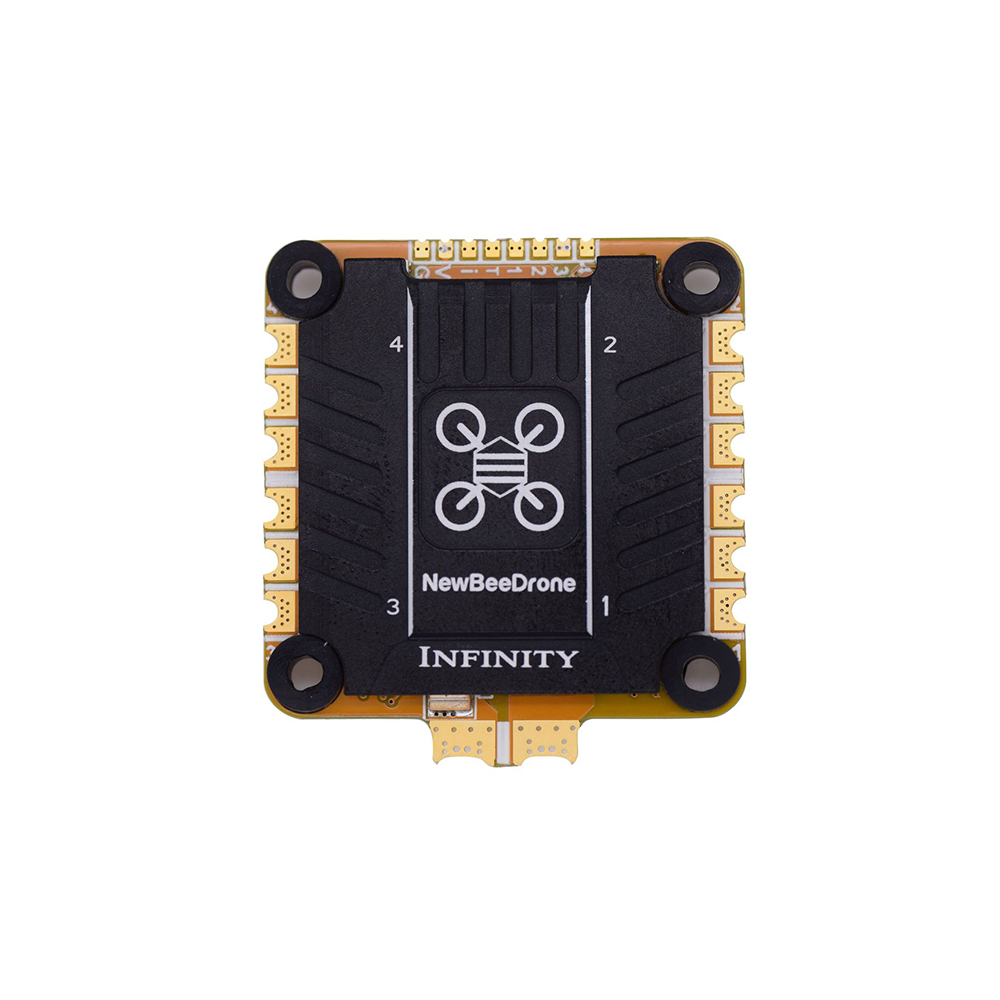

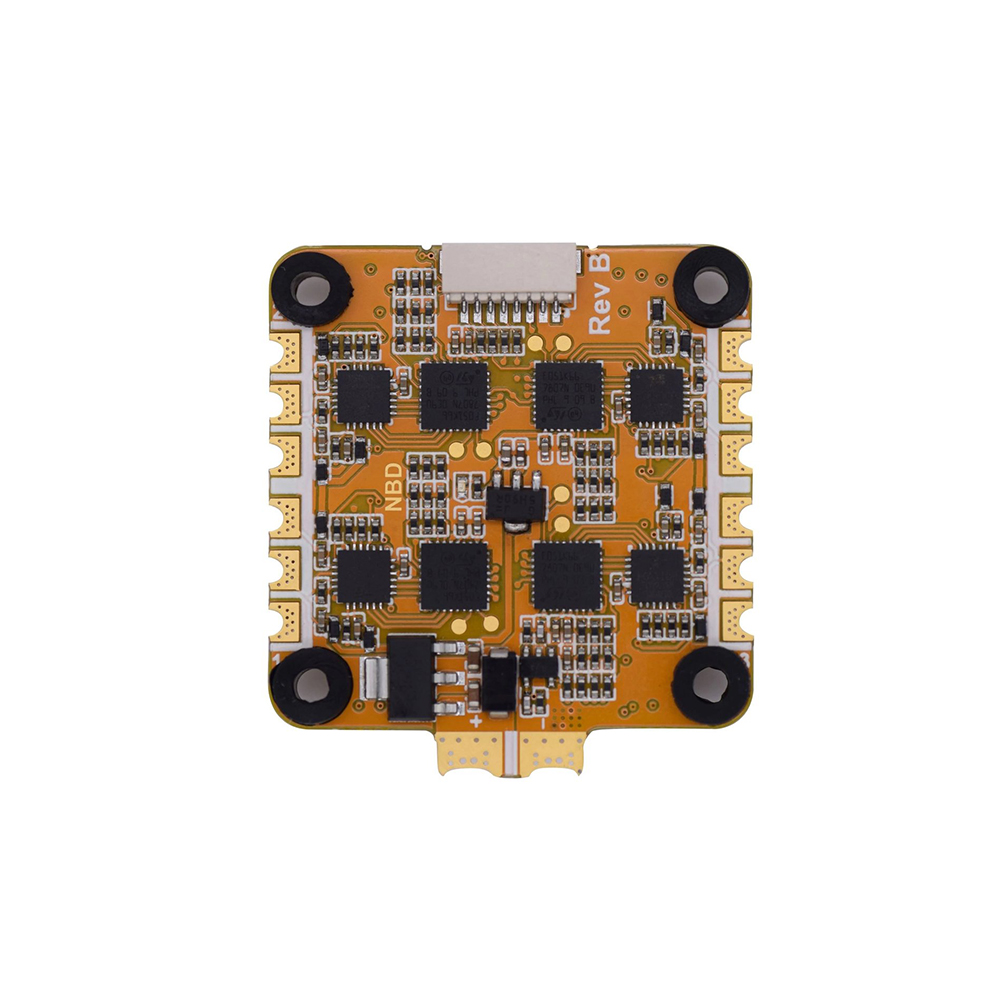

Infinity 30 ESC Spec:• LiPo Power input: 3S-6S
• ESC Programming: BLHeliSuite32
• Cont.Current: 40Ax4
• Burst Current: 55Ax4
• Weight / Size: 15.0g / 41x37.5x6mm
• Mounting holes: 30.5x30.5mm
• Signal plug JST1.0 8pin plug with NBD Infinity30FC
• Solder pad ready for signal and power.
• Heatsink design
• 10 Layer PCB with 2Oz Copper
• On board capacitor: 10uf x 48 Total 480uF, No need for external Capacitor

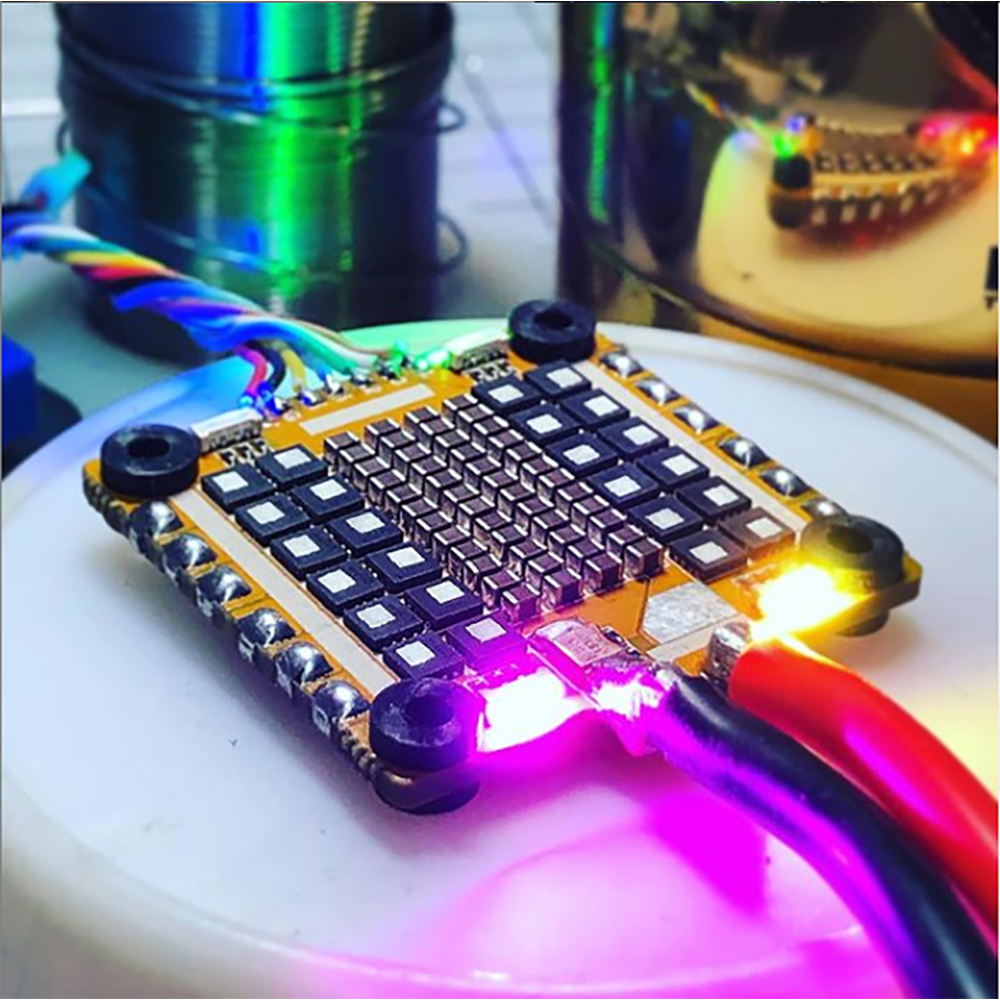

• BLHeli32 Programable Sided RGB LED x4
• Smoov performance design by Team NBD

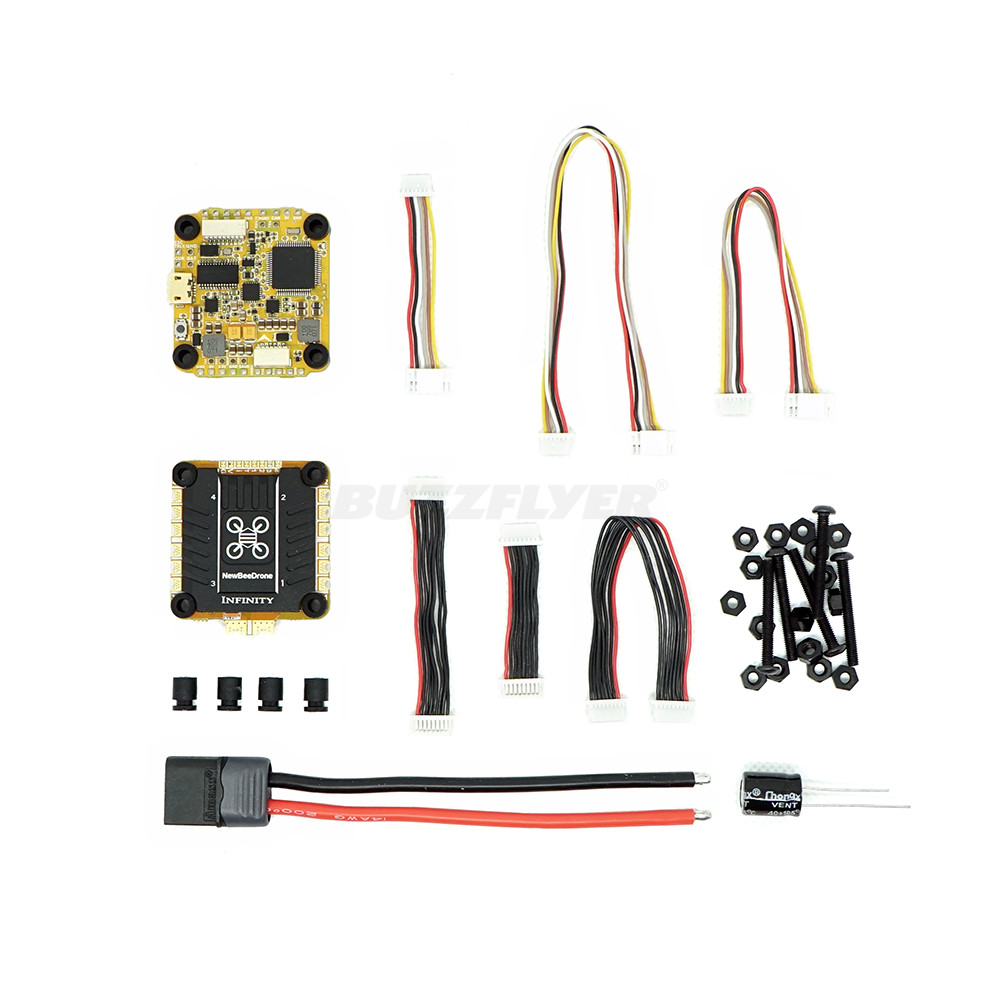

Includes:1x Infinity30 Flight Controller F4
1x Infinity30 4 in 1 ESC BLHeli32
4x Grommets
5x Nylon Screw 27mm
13x Nylon Lock nut
1x Infinity30 FC to DJI Air Unit Cable 40mm
1x Infinity30 FC to DJI Air Unit Cable 100mm
1x Infinity30 FC to DJI Air Unit Cable 150mm
1x Infinity30 FC to Infinity30 ESC cable 40mm
Infinity FC Firmware can be found
HERE!
