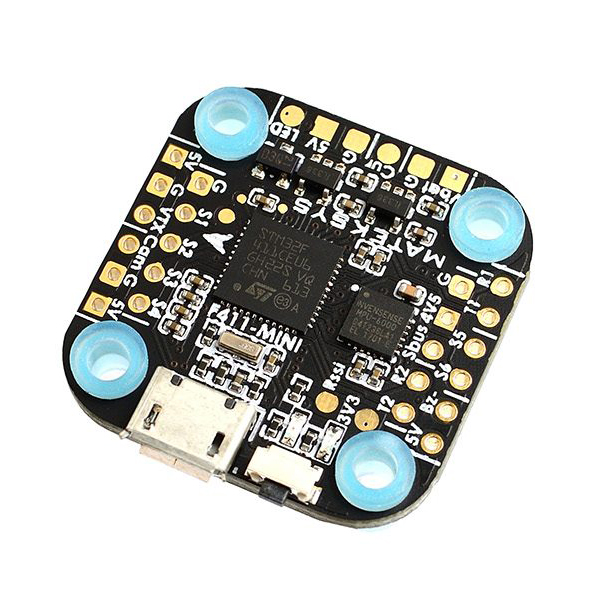

MATEKSYS Betaflight F411-mini Flight Controller

MATEKSYS F411 Mini flight controller with built in Betaflight, 20x20 mounting holes and 100MHz STM32F411CEU6 MCU.

Key features:

• 100Mhz STM32F411CEU6
• 6-Axis MPU-6000
• BetaFlight OSD
• VCP & 2x UARTS
• 6 PWM/DSHOT outputs
• Built-in BEC 5V 2A
• Input voltage 6-30V DC
• Softserial & Camera control supported
• 28*28mm with 20*20mm M4 holes

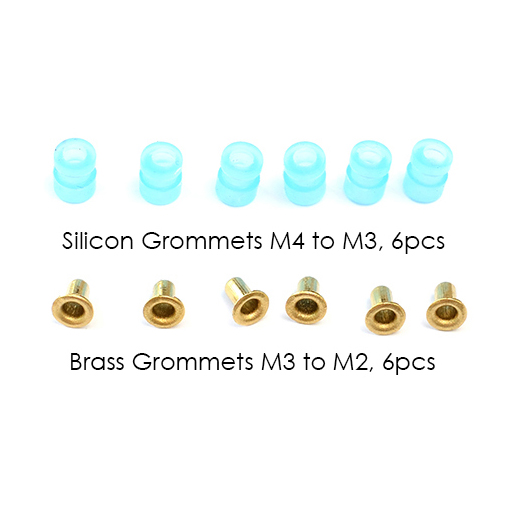

• M3 Silicon Grommets mounting
• M3 & M2 screws compatible
• No blackbox
• MATEKF411 Target

Specification:

• MCU: 100MHz STM32F411
• IMU: MPU6000
• OSD: BetaFlight OSD w/ AT7456E chip
• VCP, UART1, UART2,
• 6x PWM/Dshot outputs
• 2x LEDs for FC STATUS (Blue, Red)
• Built in inverter for SBUS input (UART1-RX)
• PPM/UART Shared: UART2-RX
• SoftSerial supported on S5 & S6
• Camera control supported on Rssi pad
• Battery Voltage Sensor: 1:10
• Current Sensor: No (FCHUB-A option)
• BEC 5V: 2A
• LDO 3.3V: Max.300mA
• I2C1 SDA & SCL available
• WS2812 Led Strip : Yes
• Beeper : Yes
• RSSI: No
• Blackbox: No
• 28x28mm PCB with 20mm mounting holes
• 4.5g
