CORE TRAITS

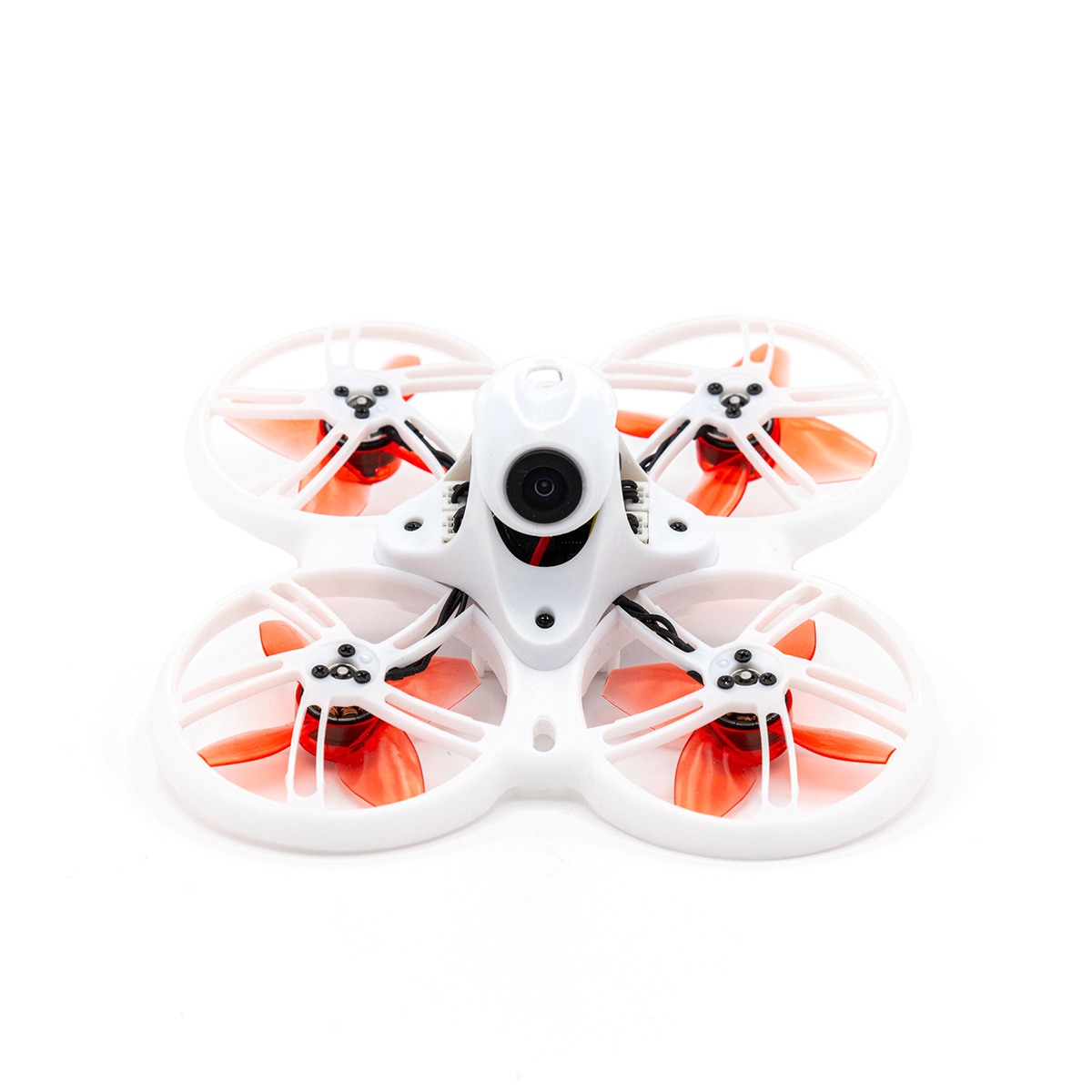

Self-improvement is a core trait for the engineers at EMAX, which is why when approached about a new successor to the Tinyhawk series, they designed the Tinyhawk III to build upon all the strengths of previous generations while improving any shortcomings.
INCREDIBLE DURABILITY

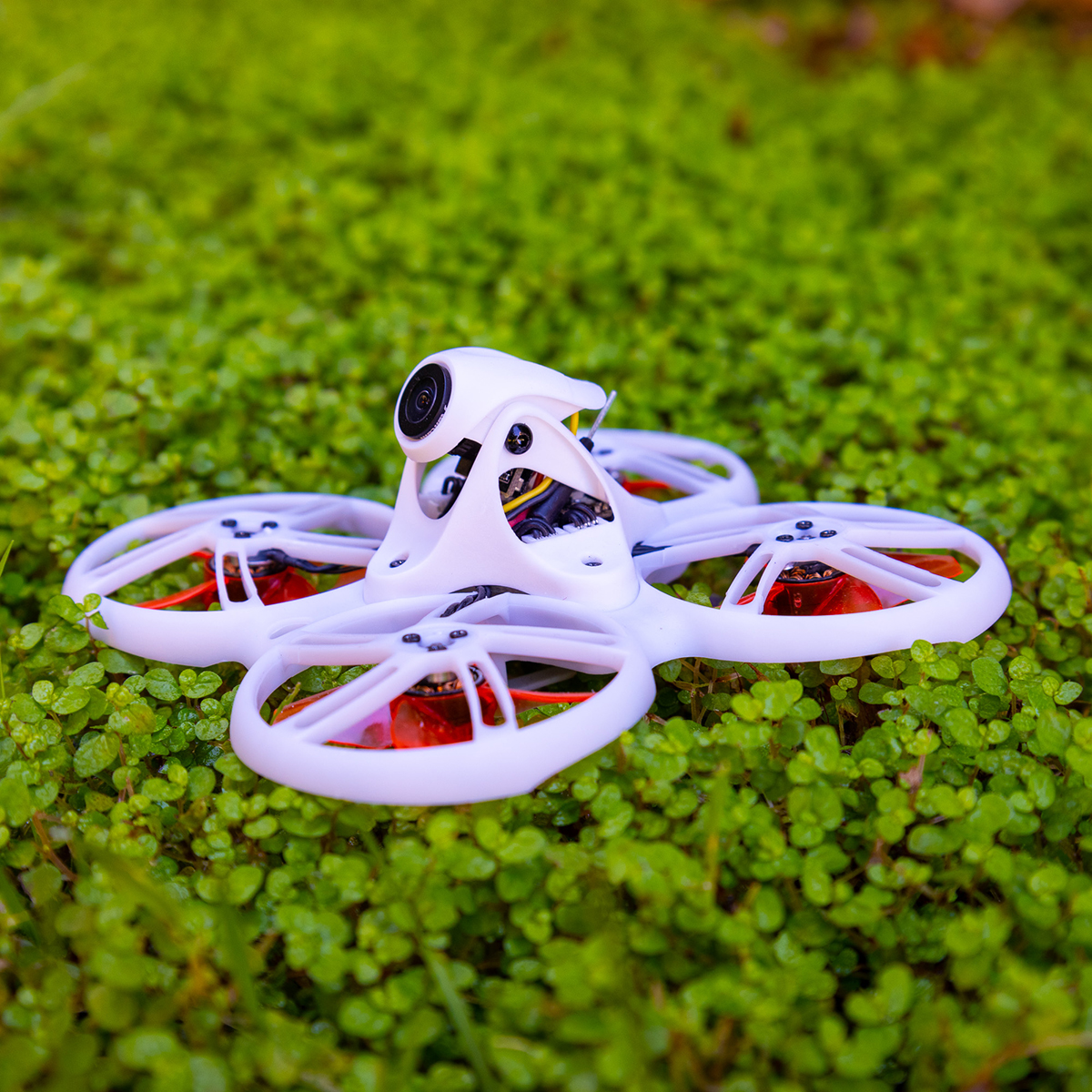

First is a drastically redesigned body frame centered around durability more so than previous generations. With a key focus on strengthening every weak point in the frame, ultimate reliability is achieved keeping the motors and electronics safe within the internals of the aircraft.
POWER REFINED
The Tinyhawk III also features new modifications to the proven Tinyhawk power system. With newly redesigned internals to the motors paired together with a new quad blade propeller, improved efficiency and flight time is achieved providing a better piloting experience for all skill levels.
REPAIRABILITY

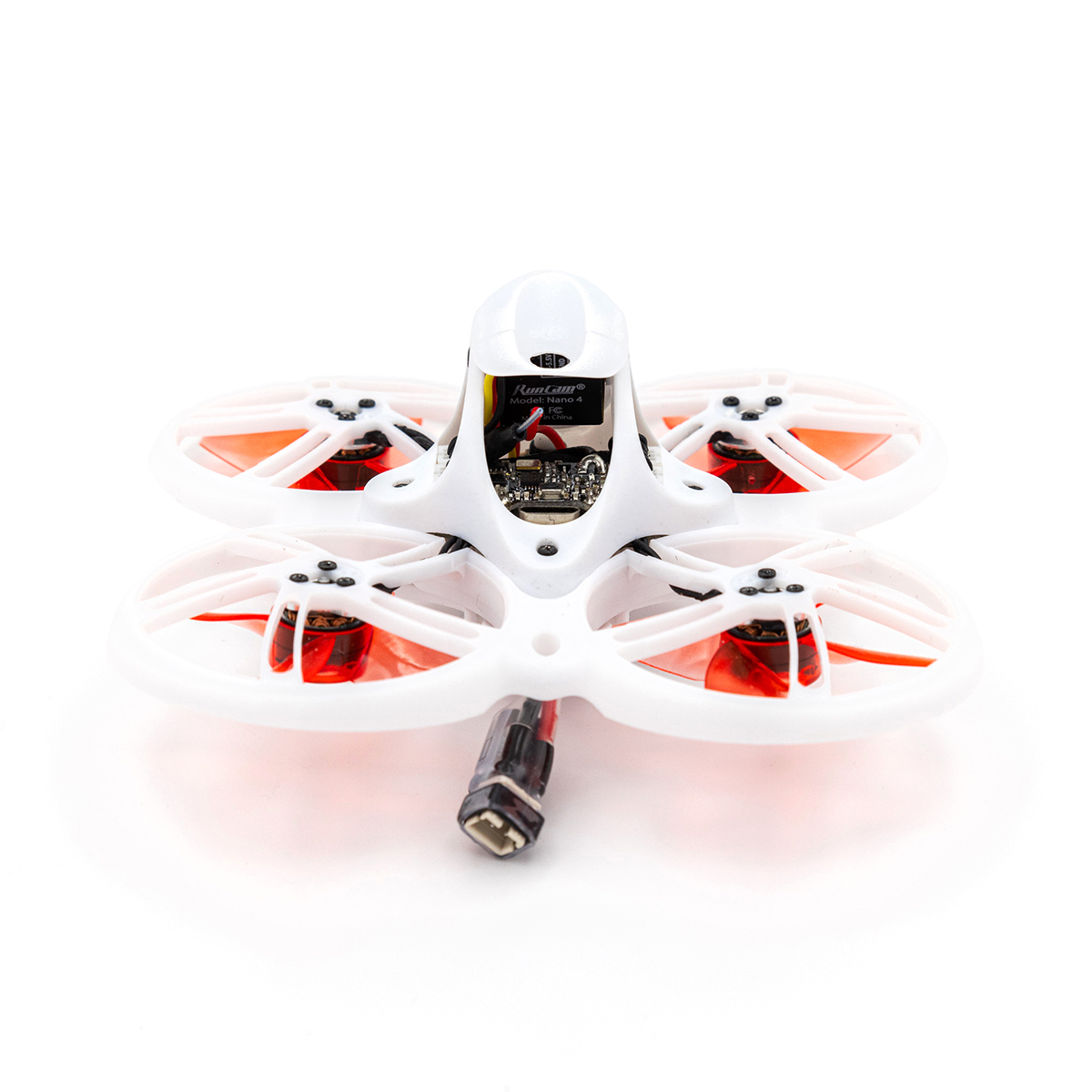

Repairing a racing drone is inevitable which is why the Tinyhawk III was designed with some quality of life improvements such as a centralized mount in order to access the internals as well as improved motor plugs for the ability to quickly swap out motors between rounds at a racing event.
READY TO FLY

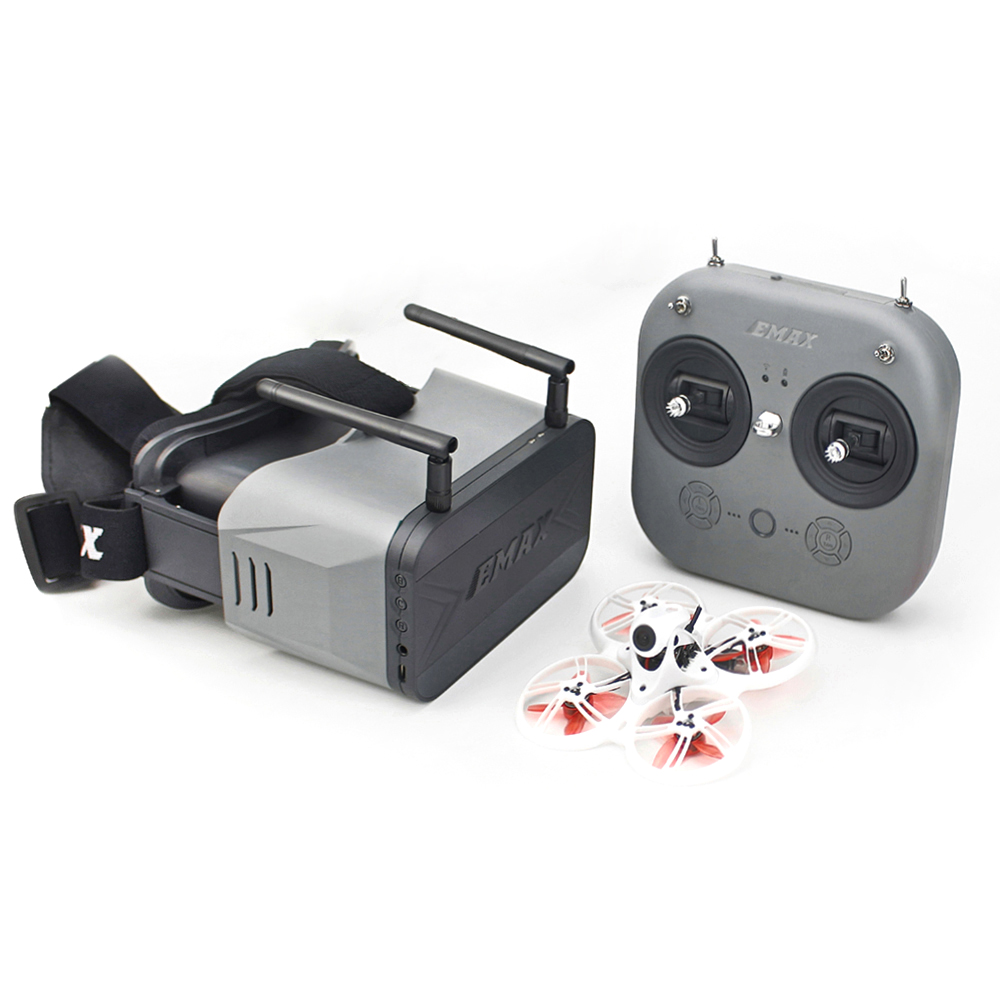

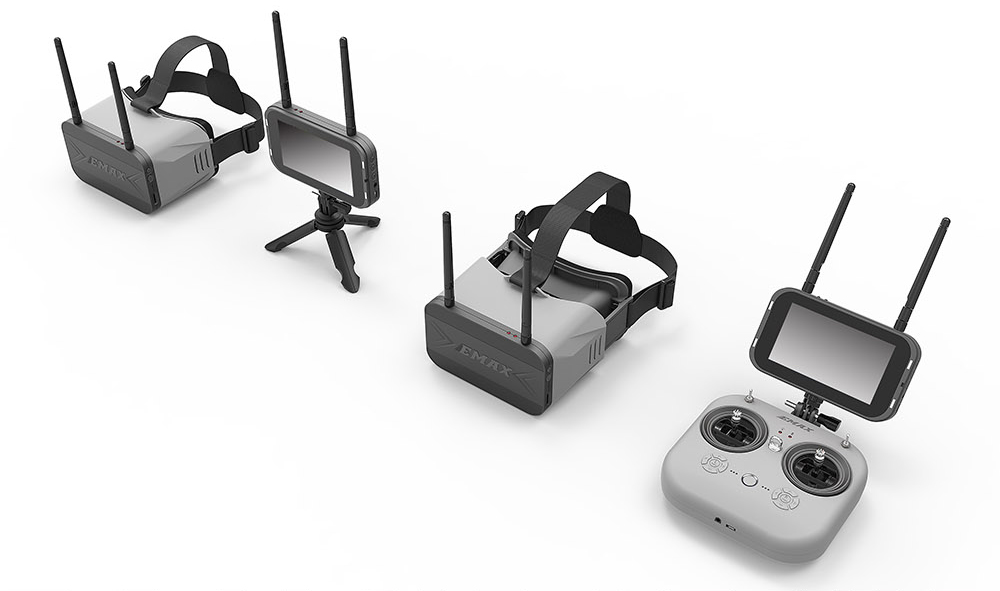

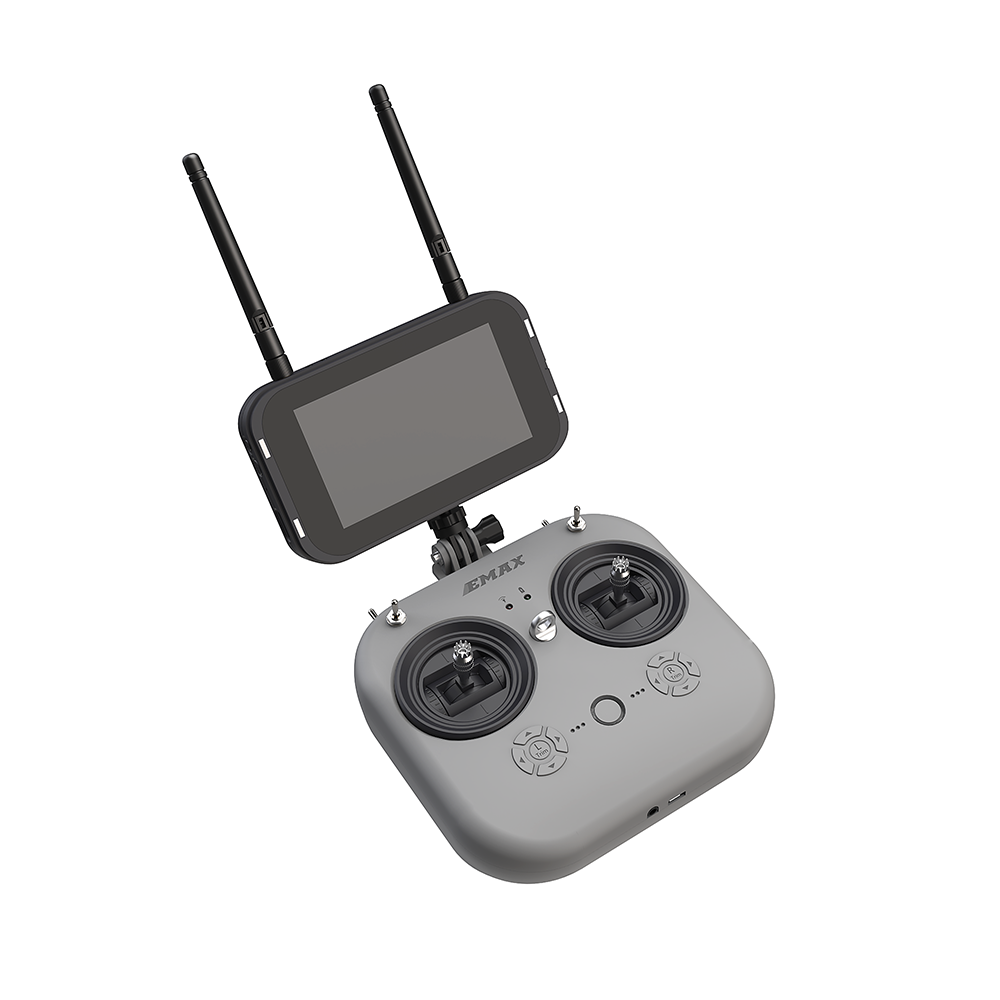

Unveiled with the Tinyhawk III is also the reimagined Transporter 2 FPV Goggle featuring a detachable screen which can optionally be paired to the brand new E8 transmitter, allowing pilots to customize their flying experience to suit their needs.
TRANSPORTER

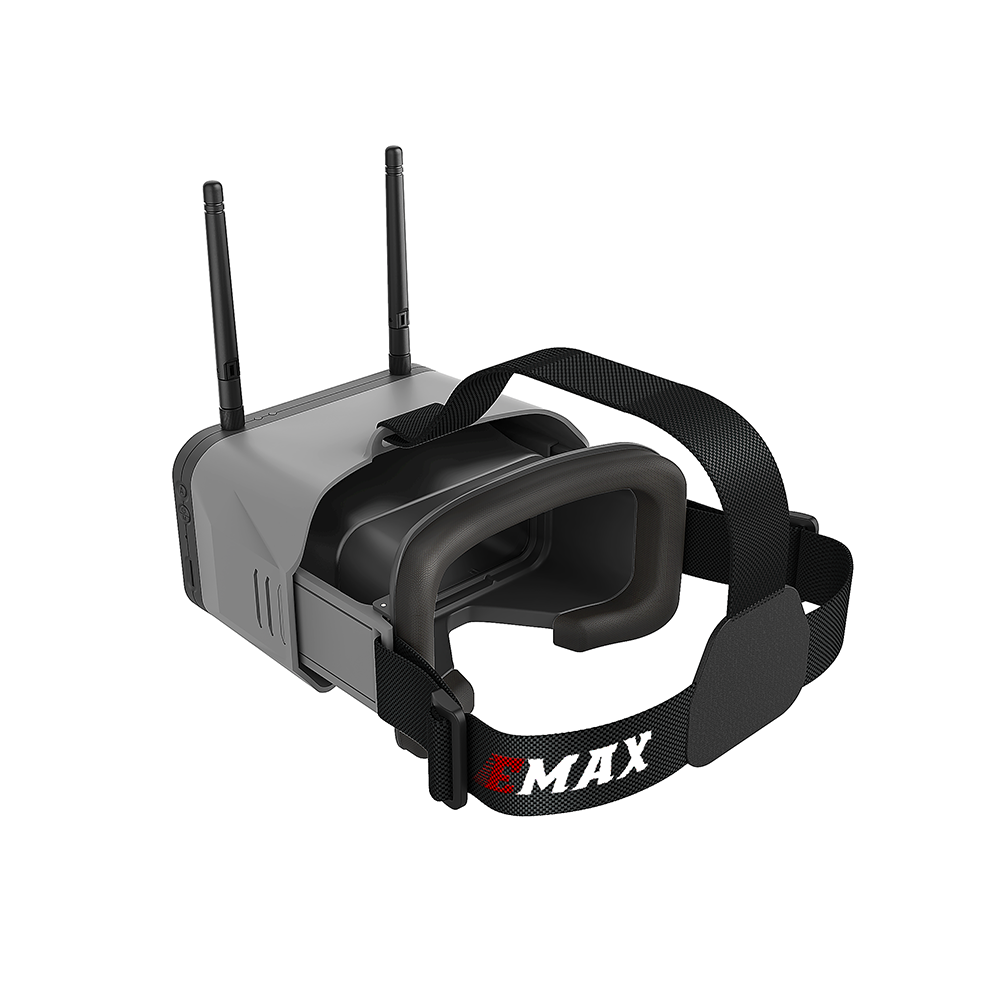

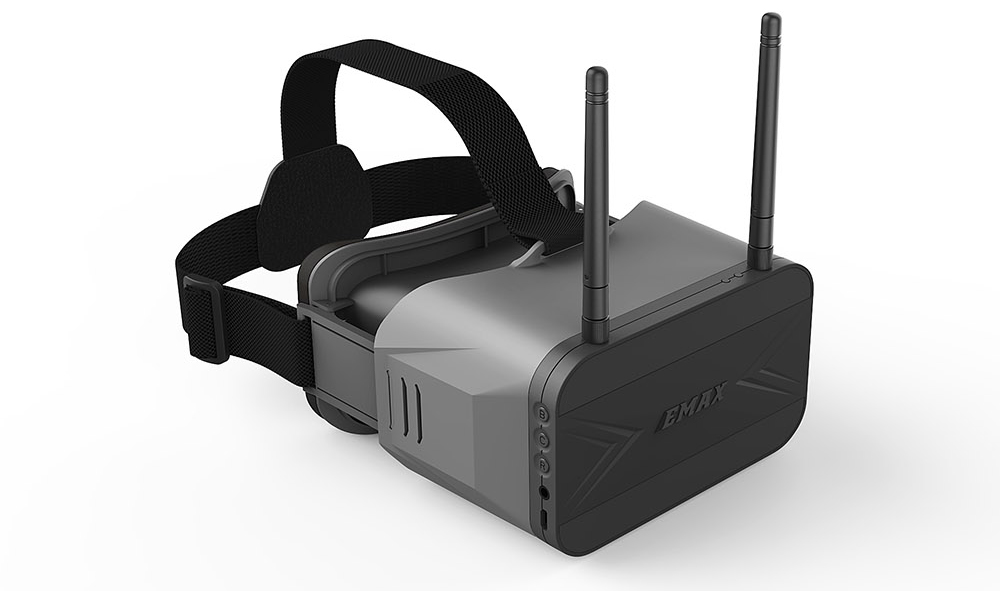

Built into the Transporter 2 is a powerful receiver in order to give pilots the cleanest video feed possible while also featuring a built-in DVR, allowing users to record their FPV flights for review, or sharing flight footage with others.
FULL CONTROL

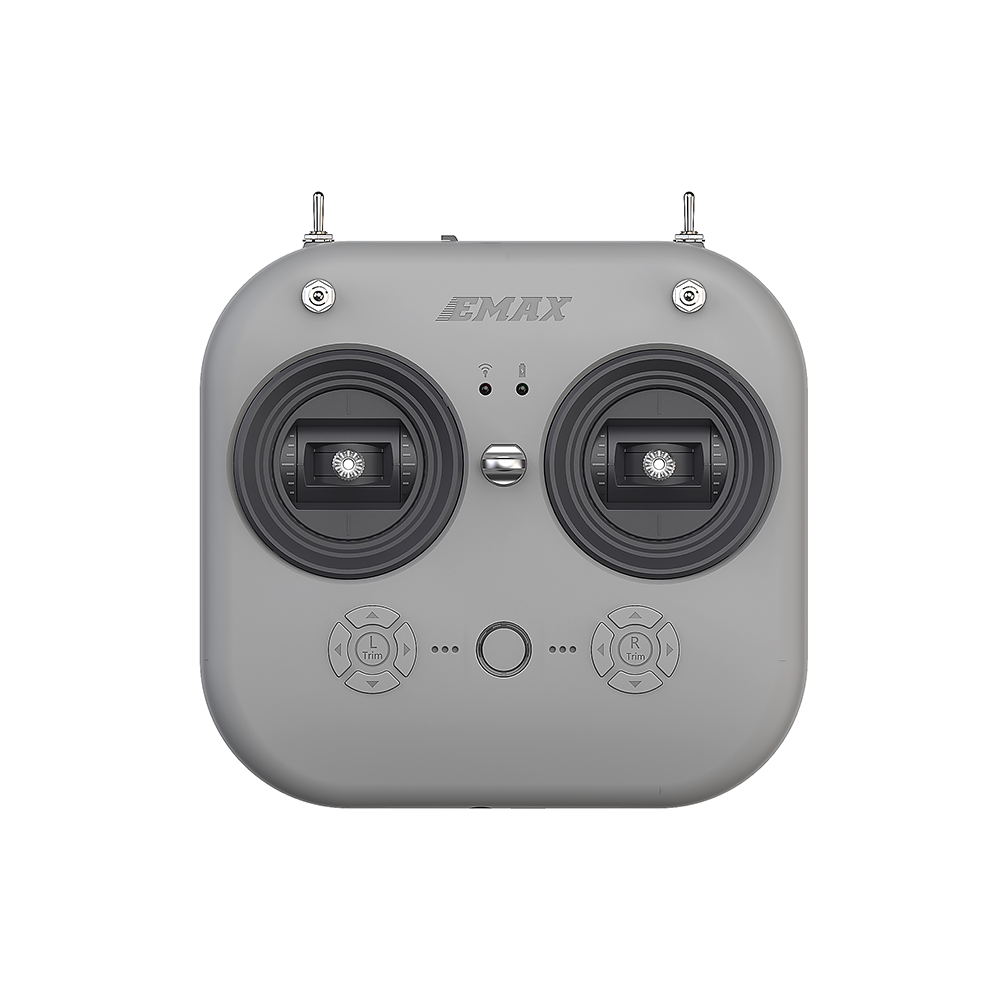

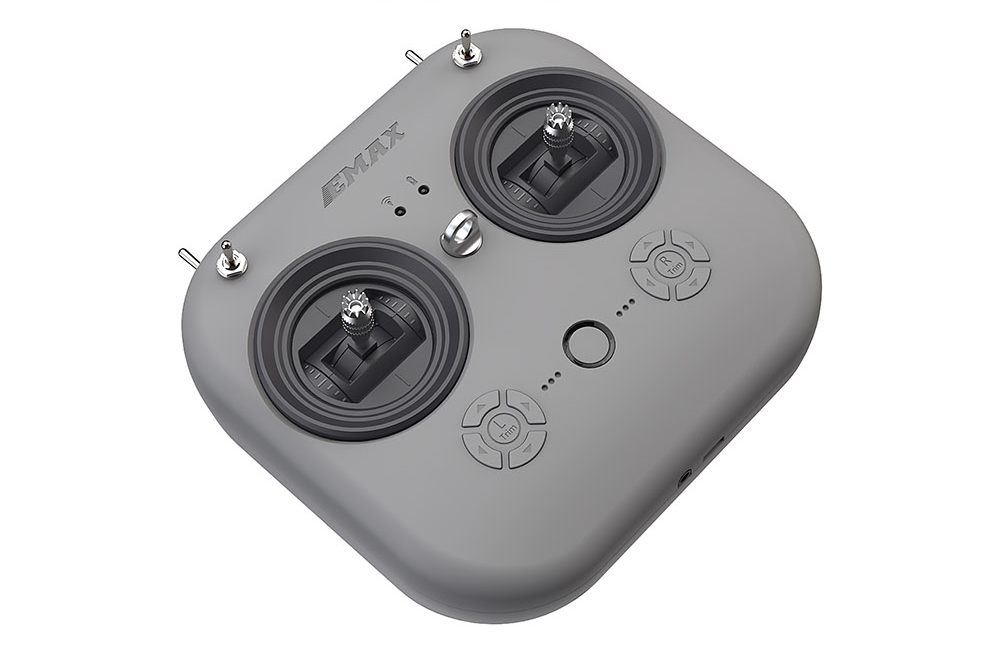

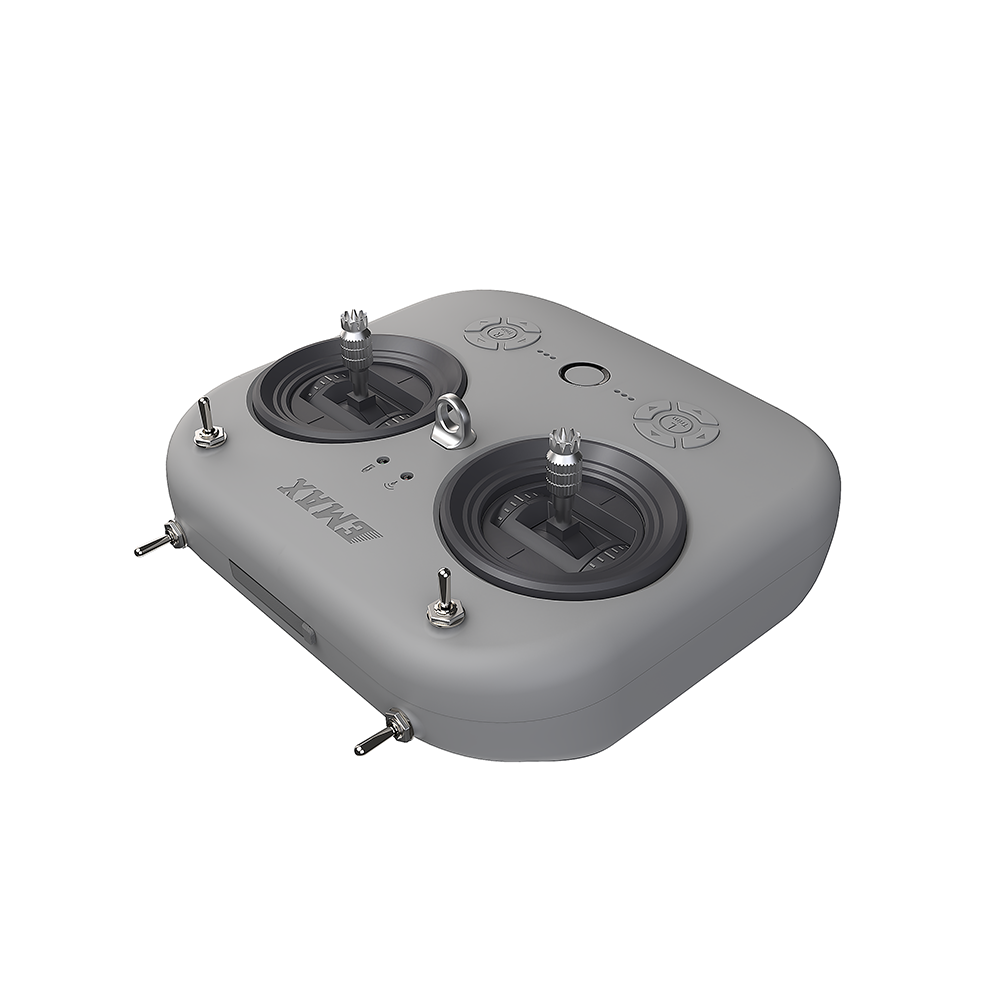

Utilizing high quality gimbals, the E8 transmitter offers unparalleled control over the drone, providing smoothness and precision over previous generations.
GET STARTED

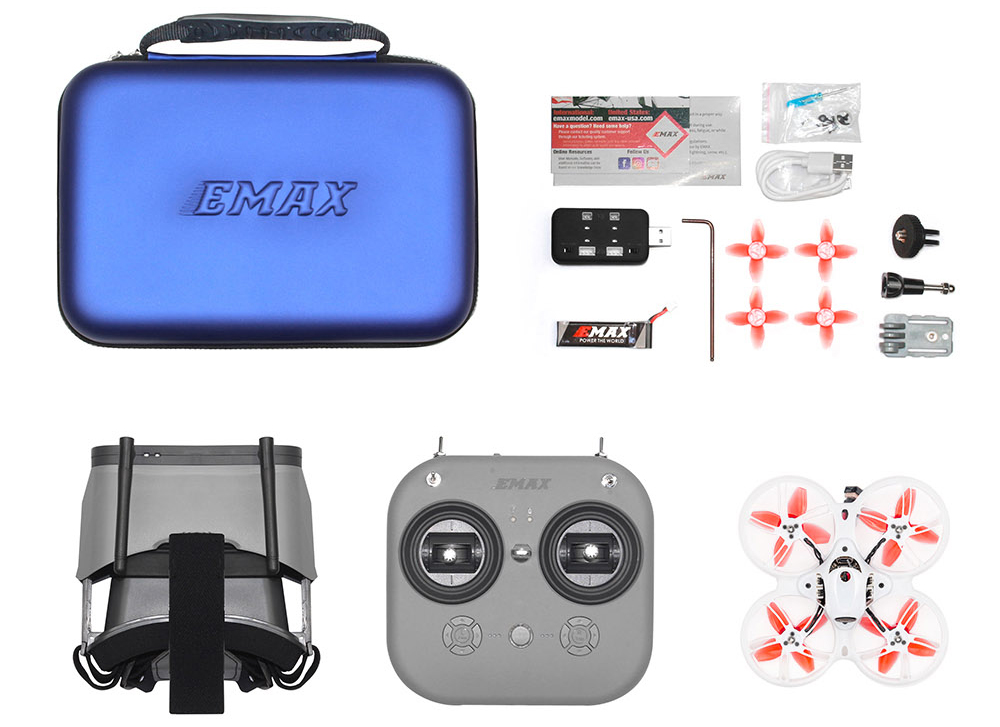

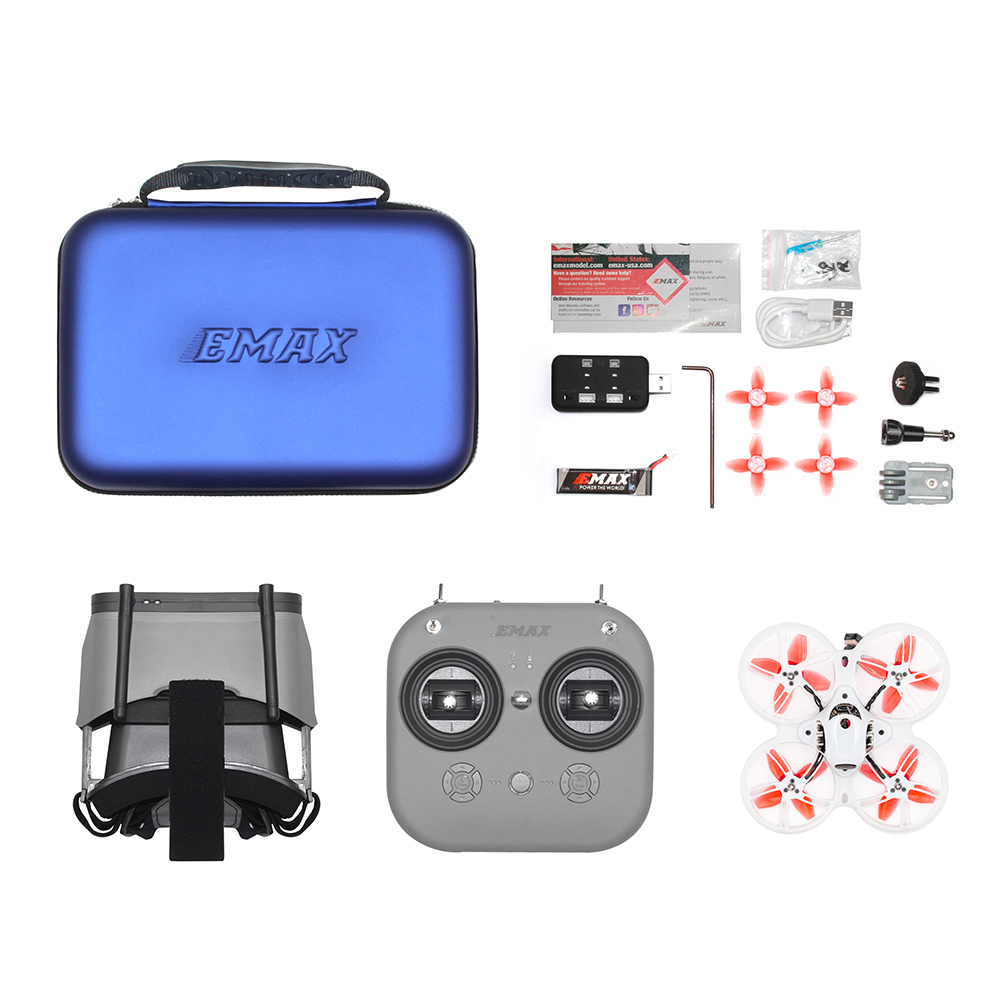

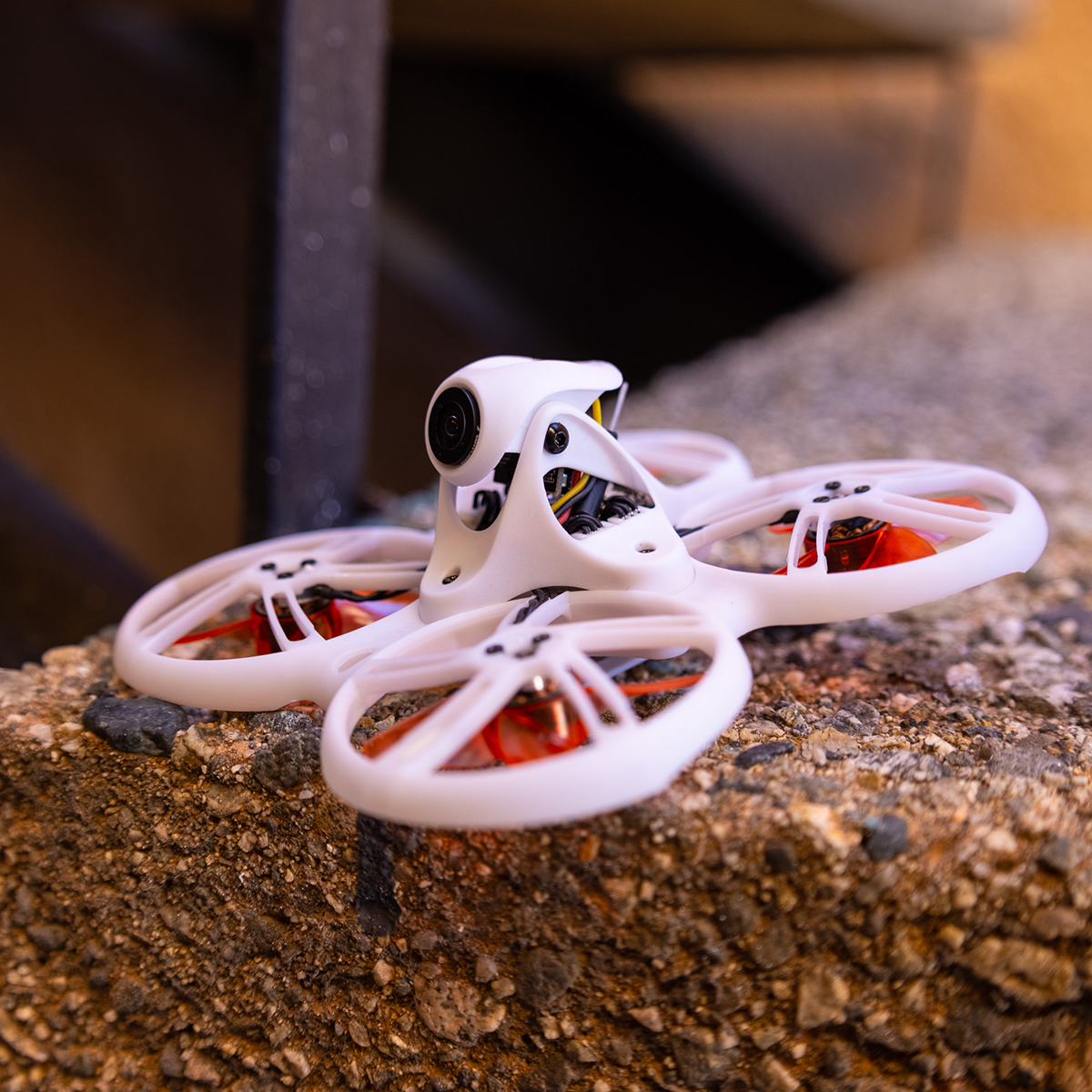

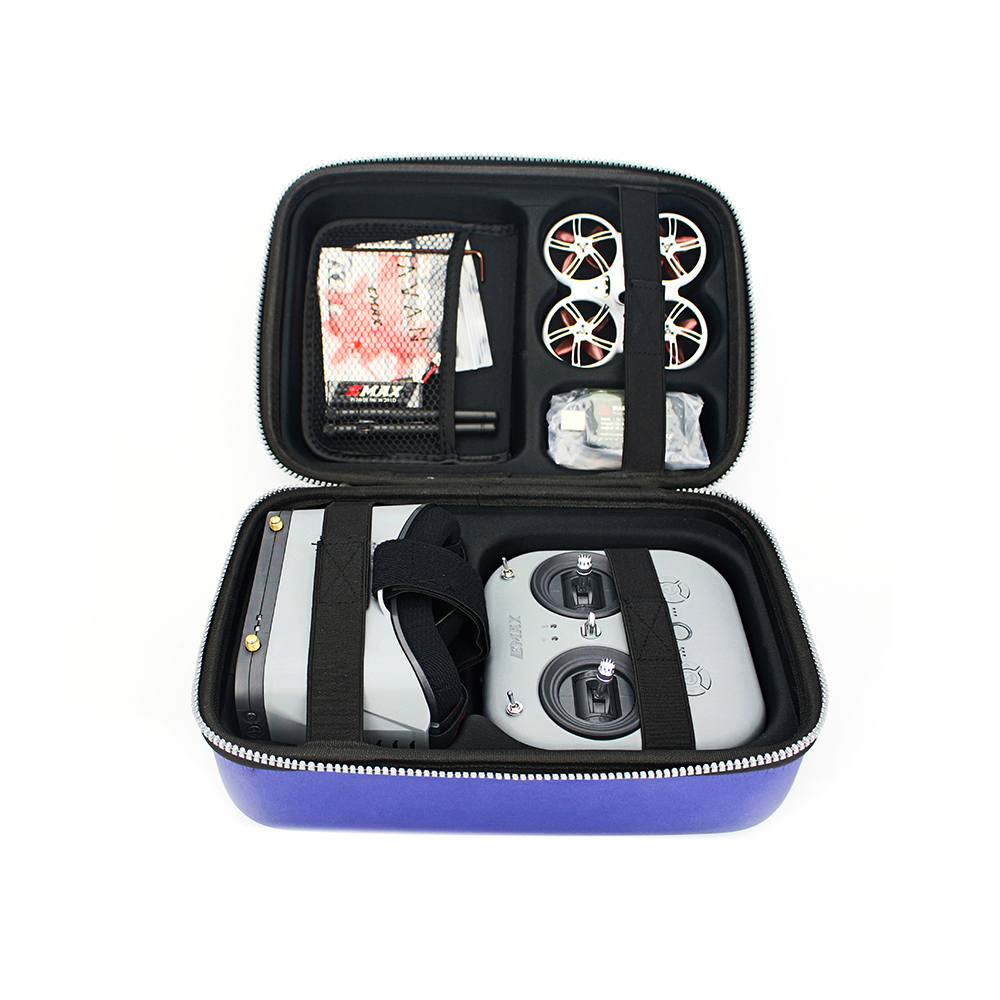

With a sleek carrying case to contain everything you need, the Tinyhawk III builds upon the past in order to create the ultimate micro indoor racing drone ever made.
Product specification

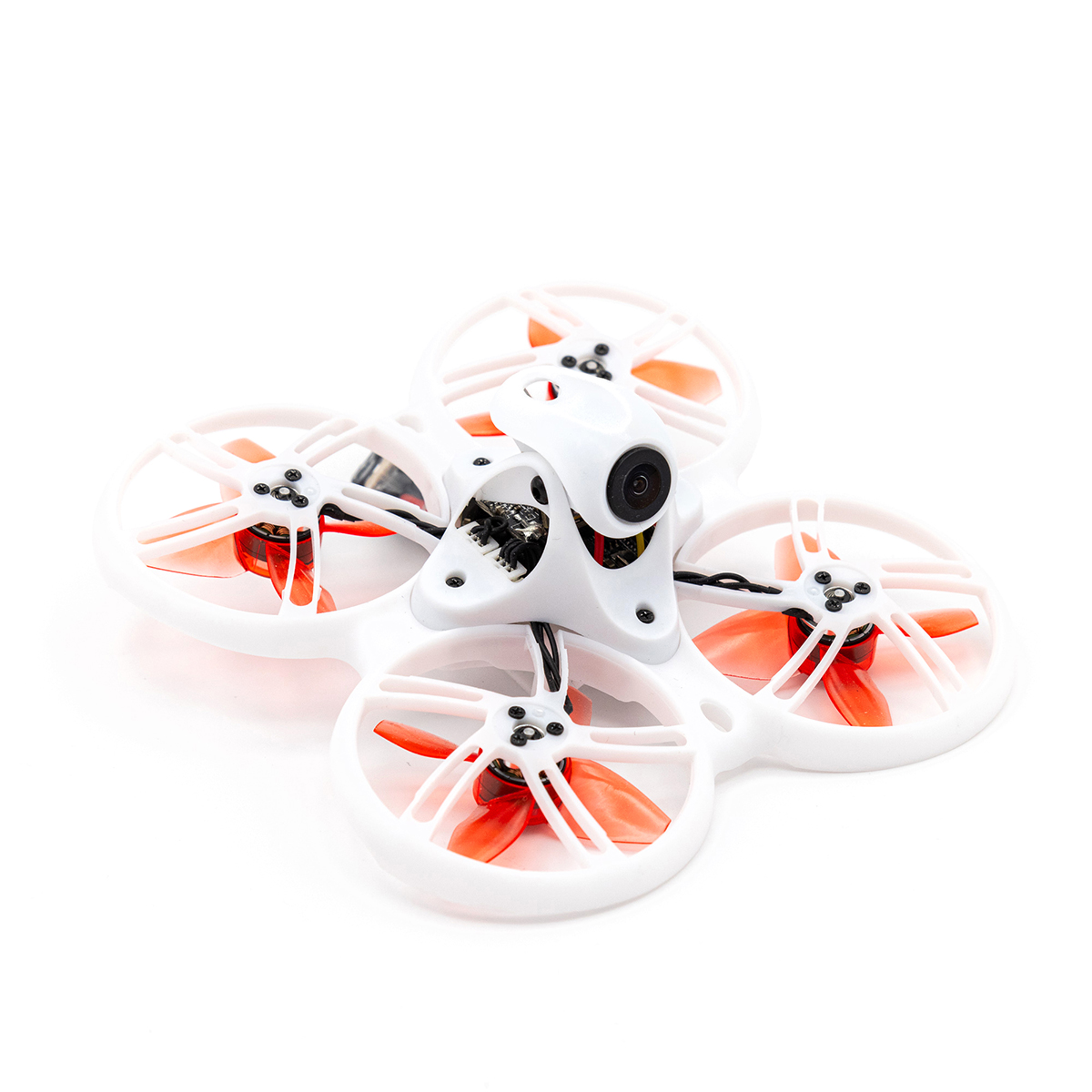

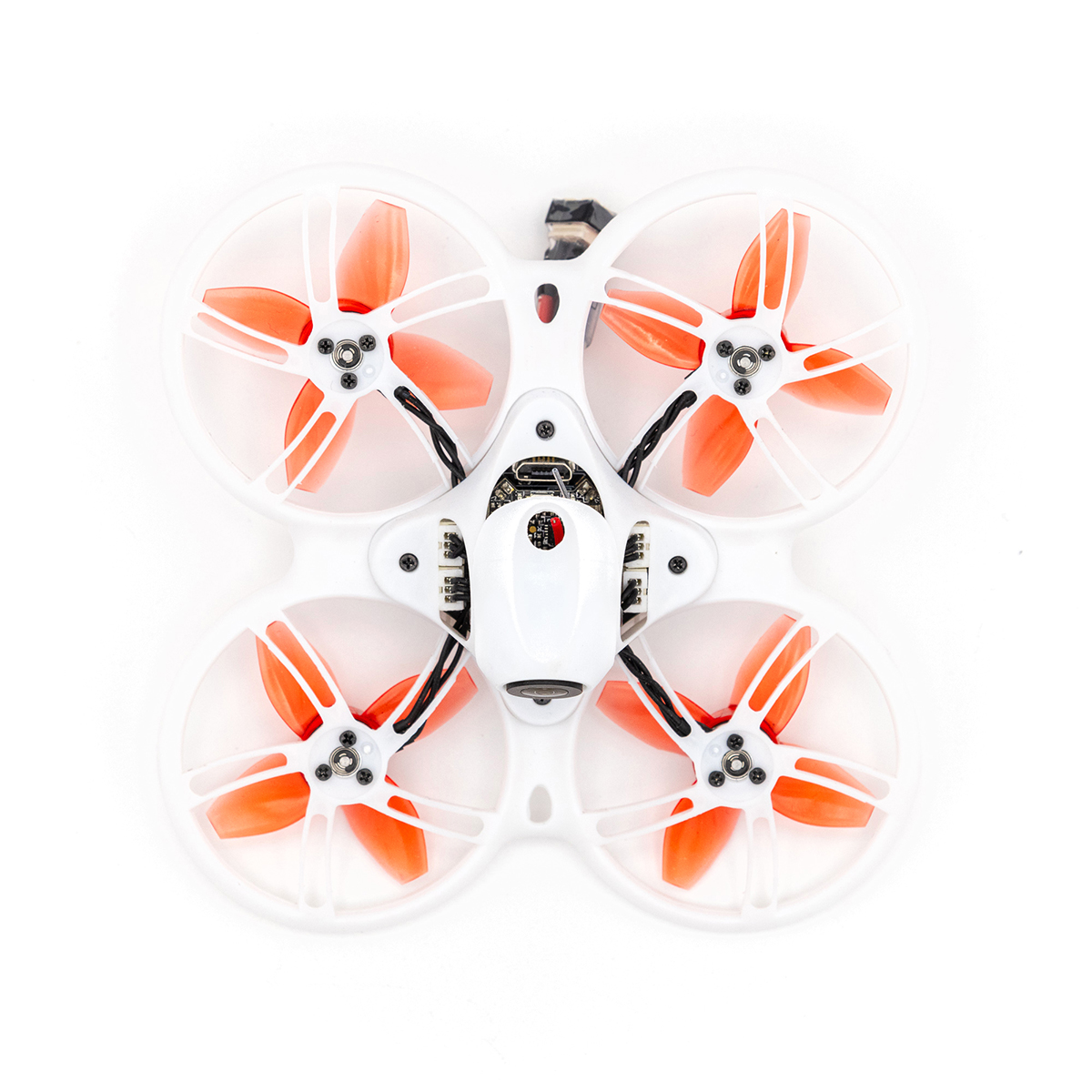

Tinyhawk III
Wheelbase 76mm
Maximum Size L.W.H.105x105x45mm
Weight(Without battery) 32g
Motor TH0802 II 15000KV
Propeller Avia TH Propeller
Main board
F4 (STM32F411 firmware)
4in1 /5A ESC
EMAX Tiny Receiver (SPI/Frsky_D8)
Camera RunCam Nano 4 Camera
VTX 200-100-25mW 37CH (Adjustable frequency) Support SmartAudio
Battrey 1S HV 450mAh
EMAX E8 Transmitter
Maximum Size L.W.H.150x140x45mm
Weight(Without battery) 260g
Number Of Channels 8CH
Frequency 2.4GHz (2400MHz-2483.5MHz)
Out put 22dbm
Battery 18650 Lithium ion battery
Charging System Built in USB 5V- -1A linear lithium ion battery charging system
Working Voltage 4.2V-3.3V
External interface Micro USB.3.5mm Audio interface (wired coach interface)

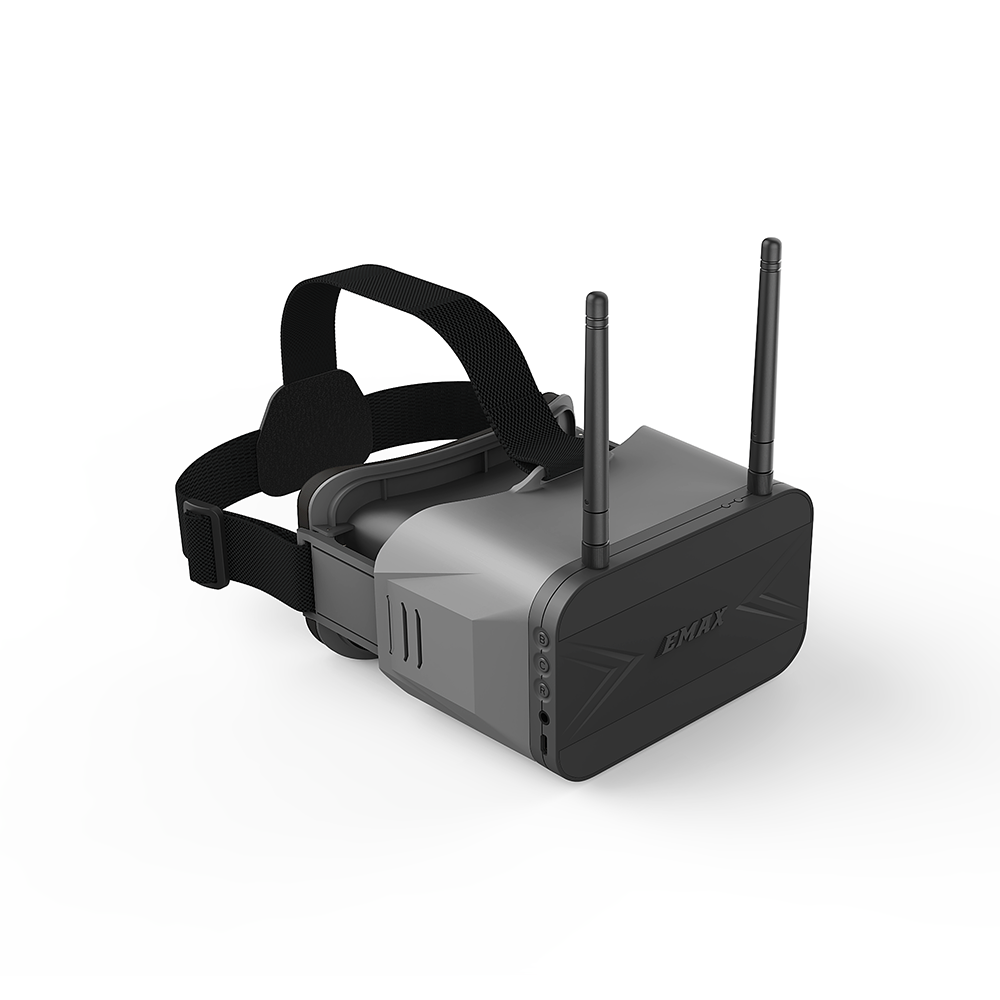

EMAX Transporter 2
Maximun Size
(Without antenna. Folded) L.W.H=155x100x90mm
Weight(With battery) 398g
Screen resolution 480)1800
Screen size 4.3 inch
Battery 1300mAh Lithium ion battery
Working Voltage 4.2V-3.7V
Frequency 5.8GHz (5658MFtz-5945MHz)
Charging System Built in USB 5V- -1A linear lithium to battery charging system
DVR 32G TF card (max) . M)PEG. AVI
Video VGA/D1/HD Off/3min/5min/10min
