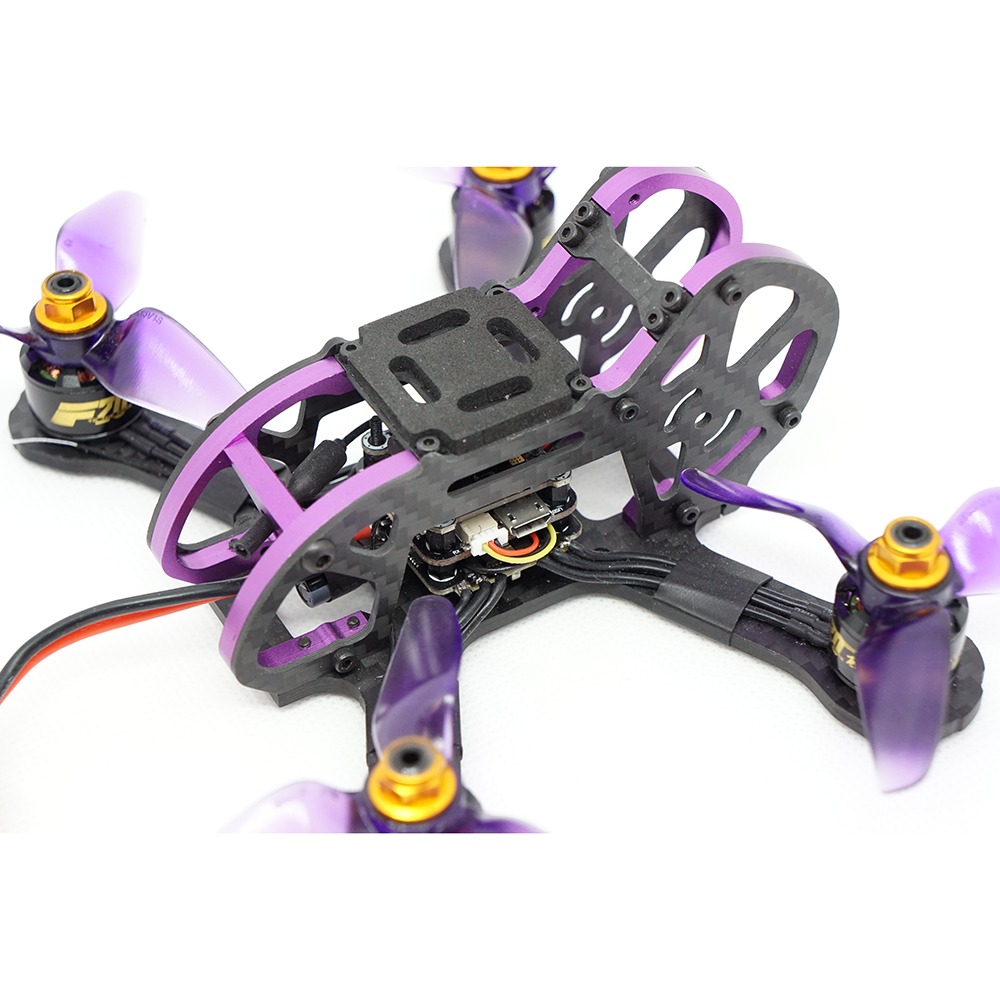

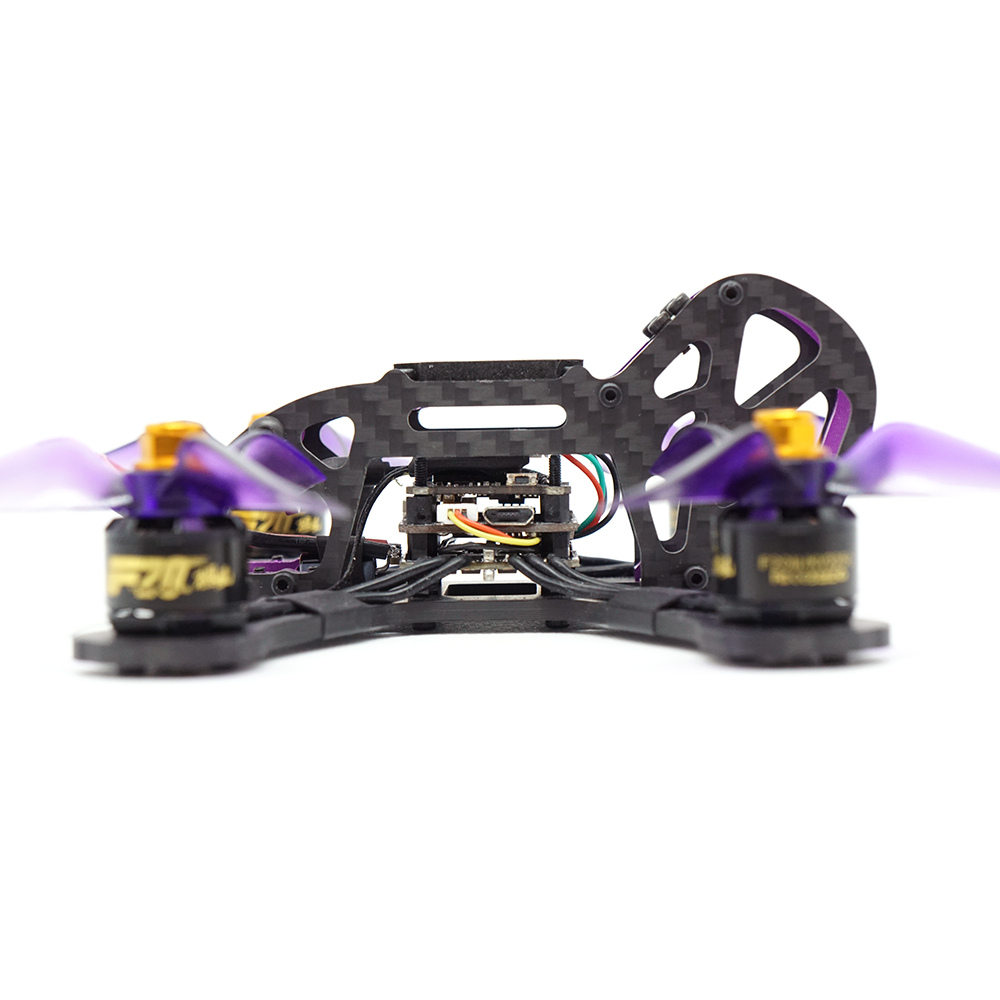

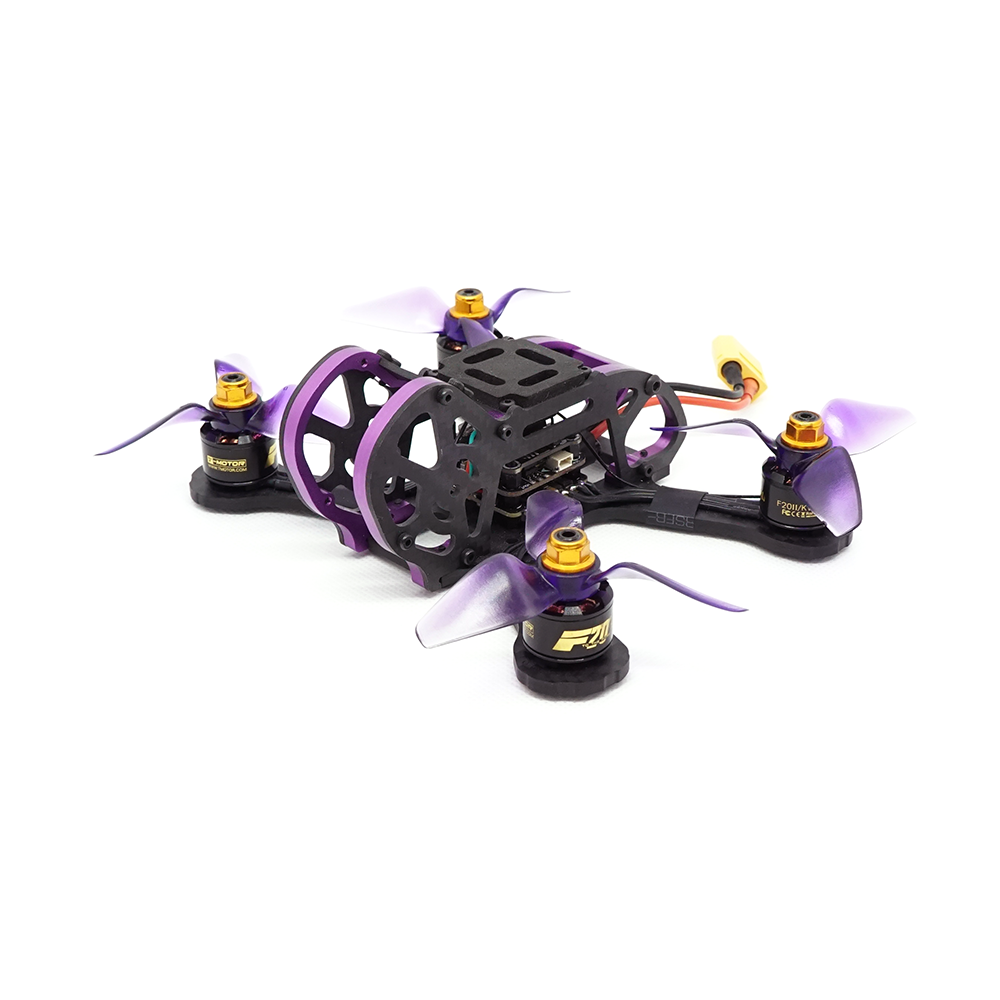

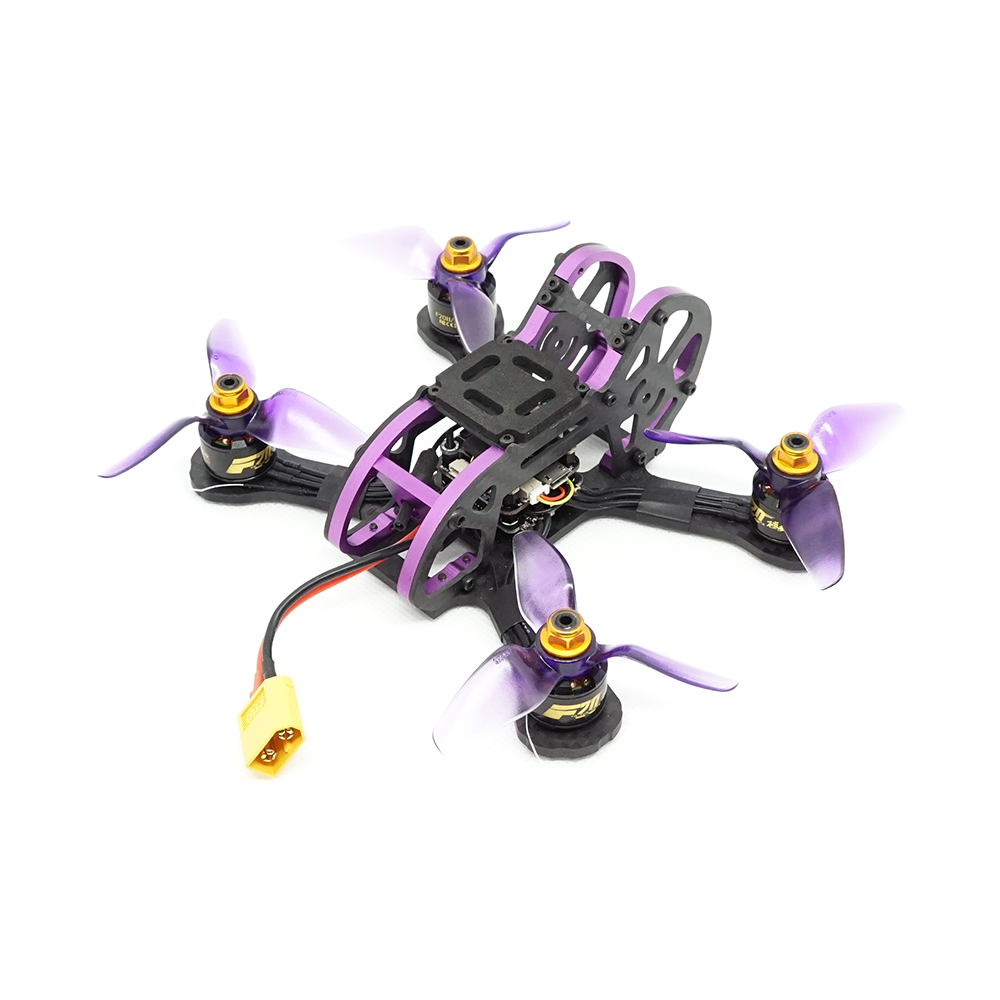

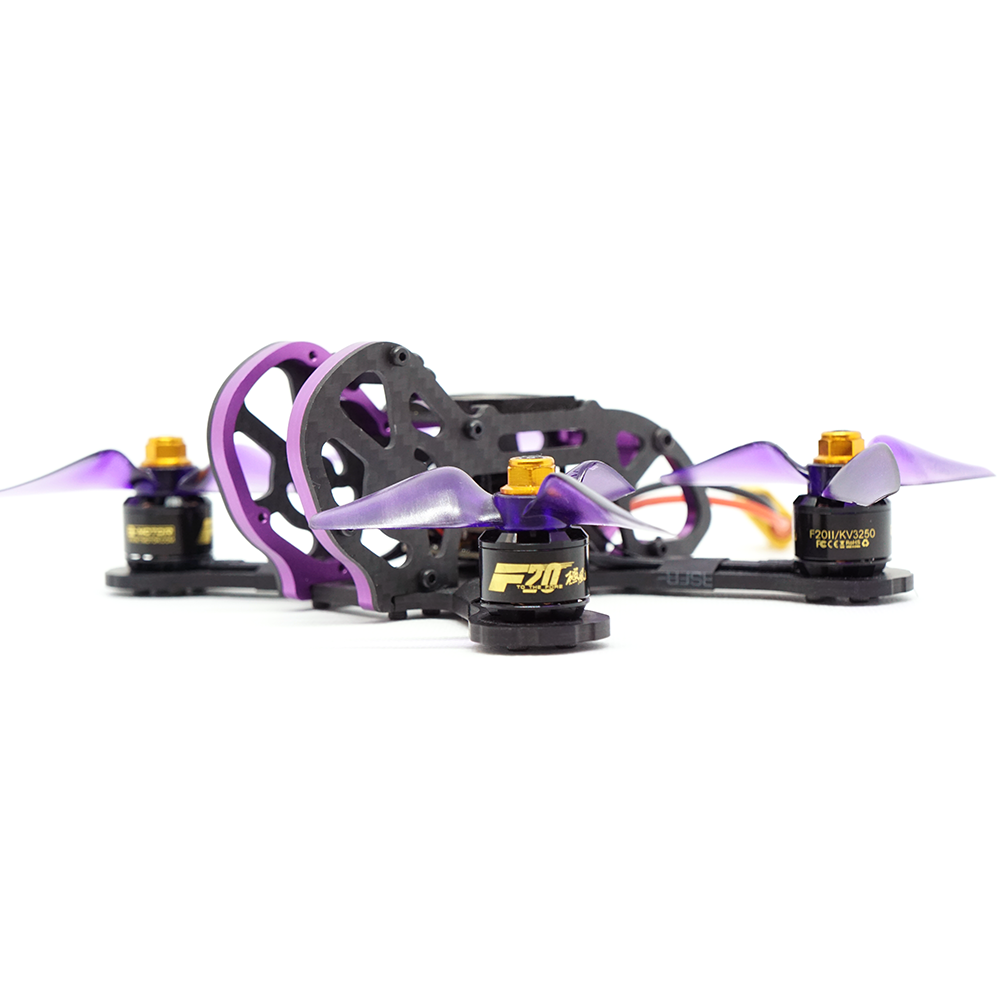

Armattan Japalura 3" Built

As the "younger sibling" to the Chameleon, the Armattan Japalura is the fanciest micro frame around, and the second design in Armattan's selection that features aluminum protection.  Inspired by many of the same principals as the Chameleon, the Japalura is a lighter, more compact package that still supports many of today's FPV standards. This "3 inch" frame can handle full-sized miniquad guts, houses your standard HS1177 camera, and shields everything but the battery with two 4mm thick 6061 aluminum ribs.

Spedix IS100 Tower Mini Stack. This is an all-in-one 20×20mm mini quadcopter stack with 4 in 1 ESC board, Omnibus F4 flight controller and 5.8GHz 25/100mW switchable 40-channel video transmitter. On the bottom of the stack is a powerful 4-in-1 speed controller supporting 2-4s and up to Dshot600 with blheli_s firmware. The ESCs can support 10 second bursts of 25A and continuous currents up to 20 amps. The FC sits at the centre of the stack using OMNIBUS F4SD and has an integrated 5.1V/1.2A BEC. It is an STM32 F405 flight control board with integrated OSD and MPU6000 gyro. There are SBUS/PPM and DSM ports for radio.

TMotor F20 II 3250KV brushless motor combined with HQprops 3x4x3 poly-carbonate propeller for explosive power.

FrSky ultra mini receiver R-XSR is the evolution of FrSky full range XSR receiver. The R-XSR is a standalone receiver with all the functions of XSR, in addition, it’s almost 1/3 size and 1/3 weight of XSR receiver at just 1.5 grams. Moreover, there redundancy function is integrated into this tiny receiver ensures the security, and the IPEX connector makes it more convenient for you to replace antennas.

Just add your FPV camera of choice and goggles for a fully immersive FPV experience.
