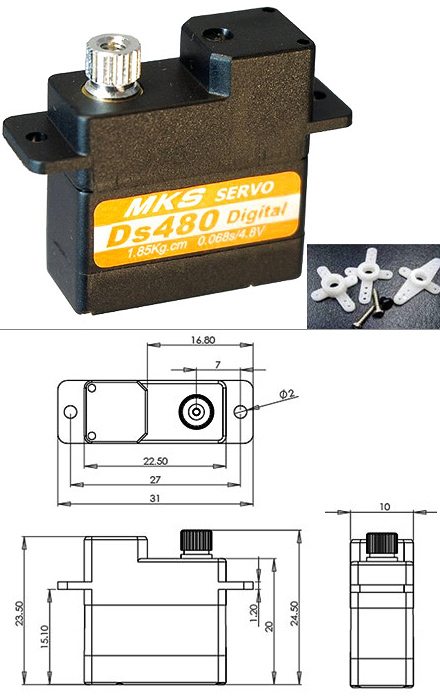

MKS DS480 Rudder Servo Dead band: 0.002ms (Default) Control System: +Pulse Width Control Working frequence: 1520ìs / 333hz (RX) Required Pulse: 3.0 ~ 5.0 Volt Peak to Peak Square Wave Operating Voltage: 4.8 ~ 5.0 V DC Volts Operating Temperature Range: -10 to + 60 Degree C Operating Speed (4.8V): 0.068 sec/60° degrees at no l... More Details
Dead band: 0.002ms (Default) Control System: +Pulse Width Control Working frequence: 1520ìs / 333hz (RX) Required Pulse: 3.0 ~ 5.0 Volt Peak to Peak Square Wave Operating Voltage: 4.8 ~ 5.0 V DC Volts Operating Temperature Range: -10 to + 60 Degree C Operating Speed (4.8V): 0.068 sec/60° degrees at no load Operating Speed (5.0V): 0.065 sec/60° degrees at no load Stall Torque (4.8V): 1.85 kg.cm (25.7 oz/in) Stall Torque (5.0V): 1.93 kg.cm (26.8 oz/in) 360° Modifiable: YES Motor Type: Coreless Motor Potentiometer Drive: Indirect Drive Driver Type: FET Bearing Type: Dual Ball Bearings Gear Type: Metal + Aluminum-magnesium alloy Gears Programmable: YES Connector Wire Length: 15.0 cm (5.9 in) Dimensions: 22.5X10X23.5 mm (0.89x 0.39x 0.93 in) Weight: 9.5 g (0.335 oz)
