Beta85X 4K 4S Whoop - it is undoubtedly the smallest 4S 4K drone.
Since YKS has shared his cinewhoop 4K with a stunning videography, people are fascinated in 4K whoop. So here we are. A real 4S 4K Beta85X whoop!!! Upgraded F4 V2 FC with BLHeli_32 16A ESC, using single N-channel MosFETs, makes the structure and performance more stable and support 4S power definitely. Mounting with Tarsier 4K camera, great choice for cruising, so you can get tons of fun with this cine whoop.
Features
- F4 V2 FC board has added extra 4 pluggable ports for ESC, VTX, RX and LED board, convenient installation and decreasing the dislocated PIN mounting.
- High performance STM32F405 processor FC boards and tuned Betaflight OMNIBUSF4SD (OBSD). Faster input signals with lower latency and higher update rate are reachable.
- Using single N-channel MosFETs on ESC board which have a lower inner resistance. It is dual MosFETs on the original BLHeli_32 ESC board.
- Soldering with 25V/220uf electrolytic capacitor, for protecting ESC board, reducing the defective rate caused by the instantaneous high voltage.
- Installed with Caddx Tarsier 4K camera with ND8 filter which supports APP setting and switchable resolution setting of 4K, 2.7k, 1440P, 1080P.
- Upgraded 1105 motor from 6000KV to 5000KV, with a light weight but definitely will give you extreme power and speed. Motor comes with cable connectors.
- Durable and light enough frame is customized for the Beta85X. To increase its stability, we specially add an extra stiffener brace of carbon fiber. Whole drone no soldering or tinkering necessary.
- 450mAh 4S high rate battery is recommended by default. But pilot could also use their own batteries with battery strap. Optional and affordable.
Beta85X Specification

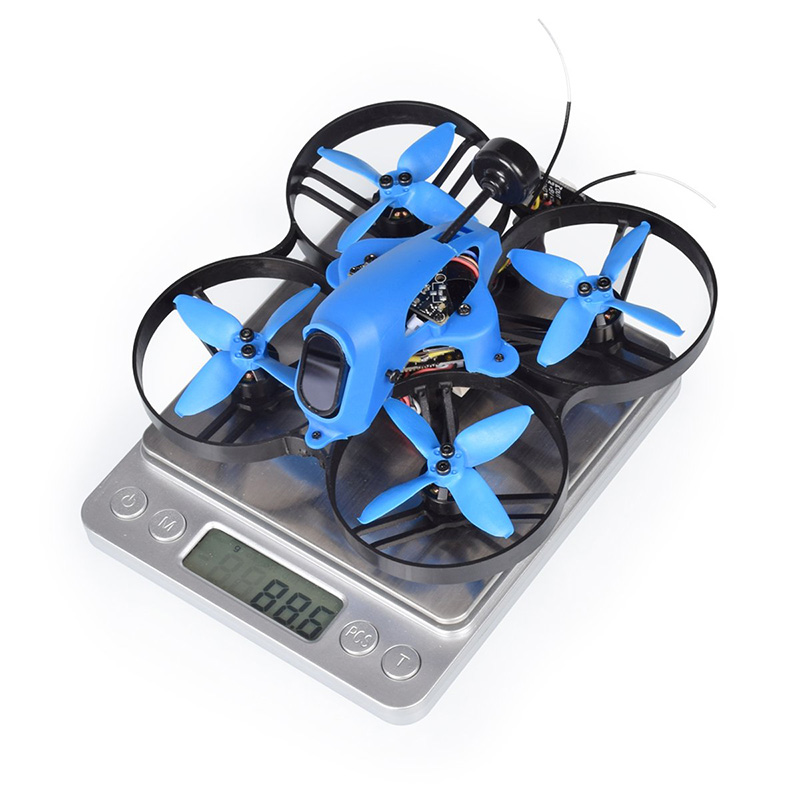

- Weight: 88.6g (without battery)
- F405 V2 Flight Controller and 16A BLHeli_32 ESC
- Motors: 1105 5000KV with connector
- Props: 2" 4-Blades Props
- Camera: CADDX Tarsier 4K
- Canopy: Canopy for Tarsier 4K camera
- Receiver option: Frsky XM+ / DSMX / Futaba S-FHSS / Flysky / TBS Crossfire / PNP
- Recommend battery: 4S 450mAh Battery (Not including)
- 5.8G FPV antenna
- Flight time: 4min - 6min with 450mAh 4S battery
Camera SpecificationFind more details about this Caddx Tarsier 4K camera in another page.
- Weight: 19.5g
- FOV: 4KF 2.8, FOV 150°(16/9), FPV FOV 165°(4/3)
- Lens: Dual lens 2.8 / 12Mega
- Image Sensor: 12M SONY sensor
- TV System: NTSC / PAL, can be changed
- Anti-Shake: Hardware anti-shake
- Scene Mode: Auto / Personage / Scenery / Defog
- Recording Timing Larm: OFF / 1mins / 3mins / 5mins / 10mins
- Horizontal Resolution: 1200TVL
- Image: 16:9 / 4: 3 (changeable)
- Camera OSD: Seperate OSD

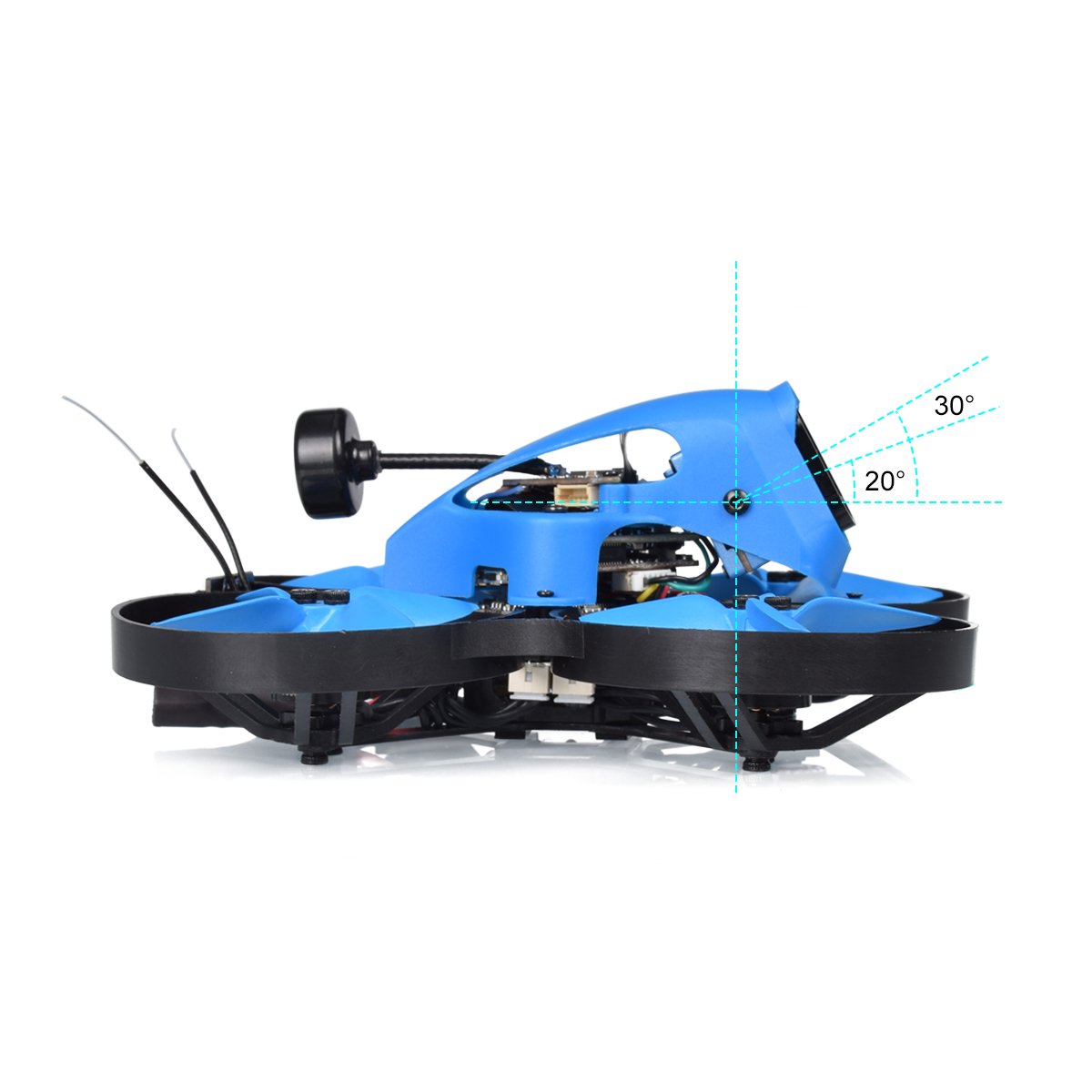

- The camera tilt angle is switchable from 20 degree to 30 degree with ND8 filter.
CADDX Tarsier APP
CADDX Tarsier APP on Apple Store (for IOS phone) or Google Store (for Android phones). Through the APP, you could change the settings like Metering, White balance, EV compensation, IOS limit, Sharpness, Contrast, Saturation.
Package
1 x Beta85X 4K Whoop Quadcopter(4S)
1 x ND8 Filter for Tarsier 4K camera
1 x OSD Menu Board
No battery included. We highly recommend the 450mAh 4S battery for Beta85X 4K Whoop.
