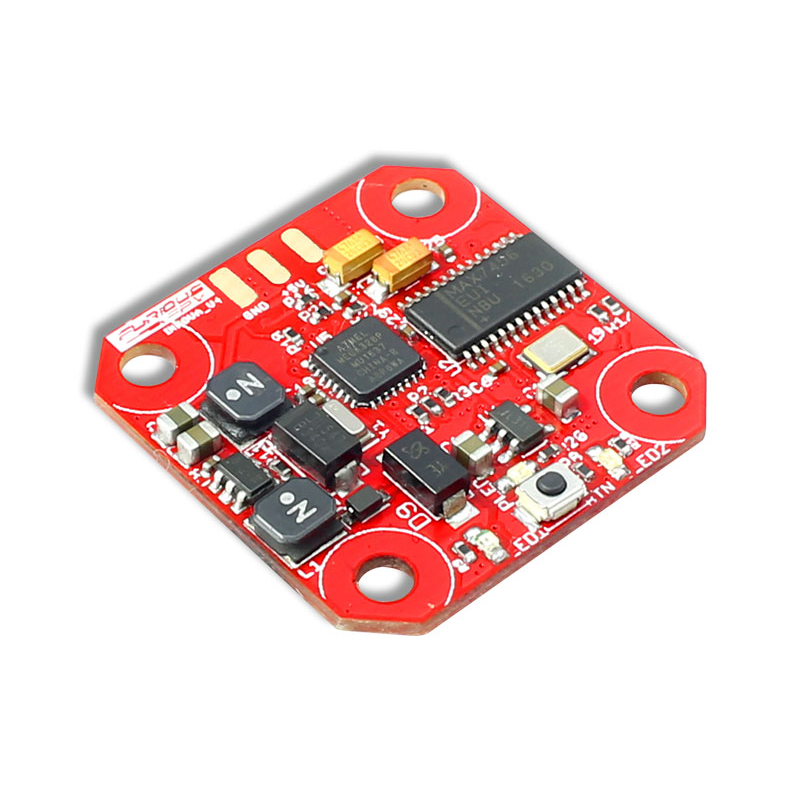

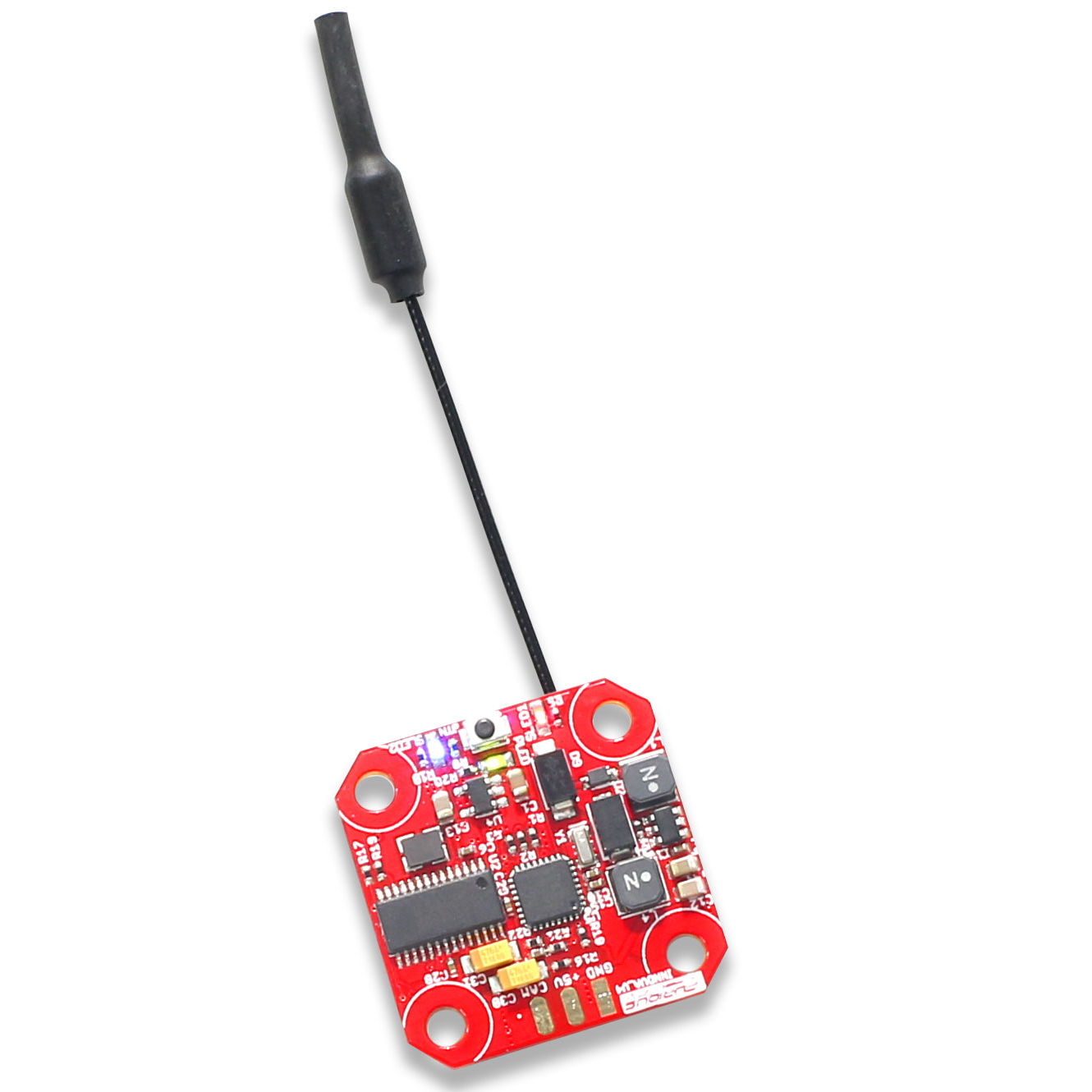

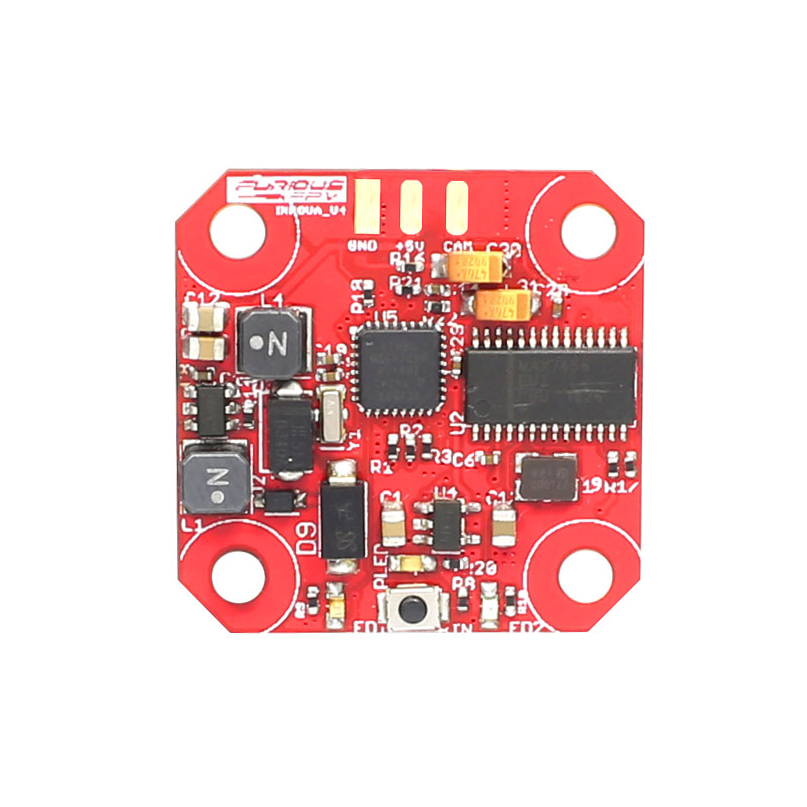

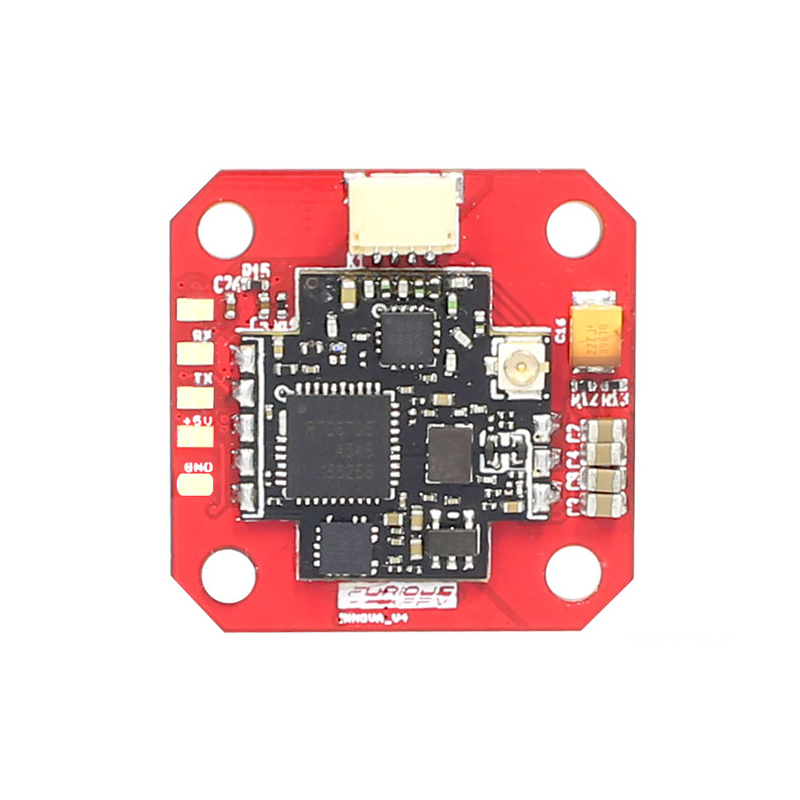

FuriousFPV PIT MODE Adjustable 25/200mW INNOVA V4 OSD/VTX

Furious FPV INNOVA V4 - The Best Gets Much, Much Better.

Refining the powerful INNOVA VTx was no small task, but we did it anyway - introducing new updates & technologies that continue to push the cutting edge in FPV VTx design.

With the powerful functionality already built into the original INNOVA, we took the best system available and made it so much better, adding all new sophisticated features & functionalities that make the all new INNOVA V4 simply brilliant in every way.

Ultra small, light in weight and packed with full of FPV goodness, the INNOVA V4 adds Adjustable Power Output to the mix, allowing racers to vary VTx power from 0.1mW / 25mW / 200mW. The ultra low 0.1mW Pit Mode functionality allows for calibration and tuning while you gear up for the next race.Further this with Stealth Mode power up, you can set your fears aside when powering up your machine, keeping your VTx offline while you system comes up to speed.

Incorporating our proprietary in-house True Vision system, True Vision can run via Chrome, and unlike most complex MWOSD software systems, True Vision is ultra simple, supporting VTx setup, connecting through BetaFlight Passthrough, FTDI, and more.

Simplification is the key and functionality is the game. With the INNOVA V4, adjustability is at your fingertips, allowing VTx power up & shut down via your transmitter, and the ability to select power, band, and channel with a press of a button. Combine this with features like a built-in LC Filter, RaceBand, and InRush Voltage Protection Input / Output via Transient Voltage Suppressor, the INNOVA V4 is the VTx that blows the competition out of the skies.

When it comes to VTx power, functionality and absolute brilliance, Furious FPV provides the next step in ultimate user friendliness with insane feature pack that you won't want to live without when it comes to FPV.

Don't settle for anything less - the Furious FPV INNOVA V4 is ready to rock your FPV and push your flight to the next level

Features:

• Mini Size: 27mm x 27mm w/ 20mm x 20mm Mounting Holes
• Stackable w/ PikoBLX FC, PikoF4 FC & All 20mm x 20mm FC's
• Adjustable VTx Power Output - 0.1mw / 25mW / 200mW
• Race Ready w/ 25mW Raceband Functionality
• 0.1mW Pit Mode for Worry Free Flight Line Tuning
• Stealth Mode Power UpPower On & Off VTx via Transmitter
• Integrated MWOSD FunctionsPID Tuning Capable
• 40 Channel / 5 Band 5.8GHz Frequency Range
• Select Power / Band / Channel at a Touch of a Button
• HV Input Voltage from 2S 7.4V - 5S 18.5V
• Built-in LC filter for video clarity
• FuriousFPV TRUE VISION software
• Inrush Voltage Protection Input and Output by Transient Voltage

Pakage includes:

• Innova V4 OSD/VTX x 1pc
• Linear Antenna x 1pc
• 4pin silicon cable for Innova V4 x 1pc

Specifications:

• Size: 27mm x 27mm
• Mounting Holes: 20mm x 20mm
• Frequency Range: 5.8GHz (5) band (40) Channel w/ RaceBand 5325-9945MHz
• Input Voltage: 2S 7.4V - 5S 18.5V
• VTx Power Output: Selectable - 0.1mW / 25mW / 200mW
• FuriousFPV 60mm 5G8 Ipx/uf.l Connector Linear Antenna

True Vision Software - Seeing Is Believing.

Ultra simple and massively functional, our in-house developed proprietary True Vision software makes setup a breeze. From VTx setup, BetaFlight connection, FTDI and more, True Vision is Chrome friendly and ready to use.

Multi FC Compatible - Stack em' Up.

Stackable with ultra popular flight controllers like the PikoBLX, PikoF4, or any 20mm x 20mm FC setup, the INNOVA V4 adds ultimate integration at ease, allowing for an all in one simplified solution.

0.1mW Pit Mode - Tuning Made Stress Free.

In close confined racing, the last thing you want is channel bleed through to foul up someone else's lap. With Pit Mode, the 0.1mW output allows up close tuning without interference, providing you with stress free tuning as you gear up for your heat.

Stealth Mode Power Up - Low Observable Brilliance.

Stay clear of the wrath of fellow racers by utilizing Stealth Mode Power up, keeping your VTx power down with your system powered up as you gear up for your flight.

Fully Adjustable VTx Power - Race Dominance & Freestyle Fun.

Now, you don't have to choose. 25mW Raceband power output is ready & waiting for your next FPV race. After the flags fall, boost your VTx to 200mW for some long range free ride fun.

Raceband Ready w/ 40 Channel Capability - It's All Up To You.

Raceband ready, the MNOVA features (5) band, (40) channel selection, allowing you to optimize your channel selection for ultra clear video reception. So, choose the channels you need without being locked out of the frequencies you love.

Channel & VTx Power Adjustability - Just the Way it Should Be.

Utilizing CANVAS protocol, you now have full control over VTx power output and channel selection. This makes adjustments ultra easy and massively quick.

Integrated MWOSD Features - Open Source Brilliance.

Opening the door wide for all manners of configurations, MWOSD provides end users with immense levels of data & functions to augment their flight capability. The sky is the limit with MWOSD, allowing you to customize & update the MNOVA to your heart's desire.
