Simplify
your FPV and increase your video resolution with the Furious FPV
DOCK-KING, allowing ultra directional placement for the very best in
signal strength clarity.
With
your receiver mounted in traditional fashion, it is all too natural to
have your head tilted downward, thus compromising your antenna direction
and overall video reception. Further this with head movement that can
compromise your video clarity and increase video breakup, the DOCK-KING
ground station ends all of this with a powerful & compact layout
that optimizes maximum FPV clarity.
The
DOCK-KING allows your TRUE-D V3 unit to be mounted and pointed in the
perfect direction for optimal signal clarity, capitalizing on the very
best video quality as you push your FPV to the max. Further this with
integrated functionality like a built in OSD with dual antenna RSSI
signal bars, you can now monitor both antenna signals to help you
optimize the perfect direction and antenna type for the ultimate FPV
setup.
Alongside
the integrated OSD, the DOCK-KING features a warning buzzer, dual AV
output ports and an external output for HDMI & DVR functionality.
Ultra flexible with feature packed performance, the DOCK-KING
incorporates the ability to be fully configured via smart phone,
offering ultra easy Bluetooth connectivity for on the fly updates &
changes.
Ditch
video drop outs & signal fluctuations that take place with movement
of your head with the Furious FPV DOCK-KING. Compatible with any FPV
goggles that utilize the TRUE-D V3 system, the DOCK-KING is also
compatible with the FatShark Attitude V3, Transformer or HD goggle set.
Simplified,
feature packed and designed to boost your FPV to the max, enter the
Furious FPV DOCK-KING for the ultimate FPV experience.

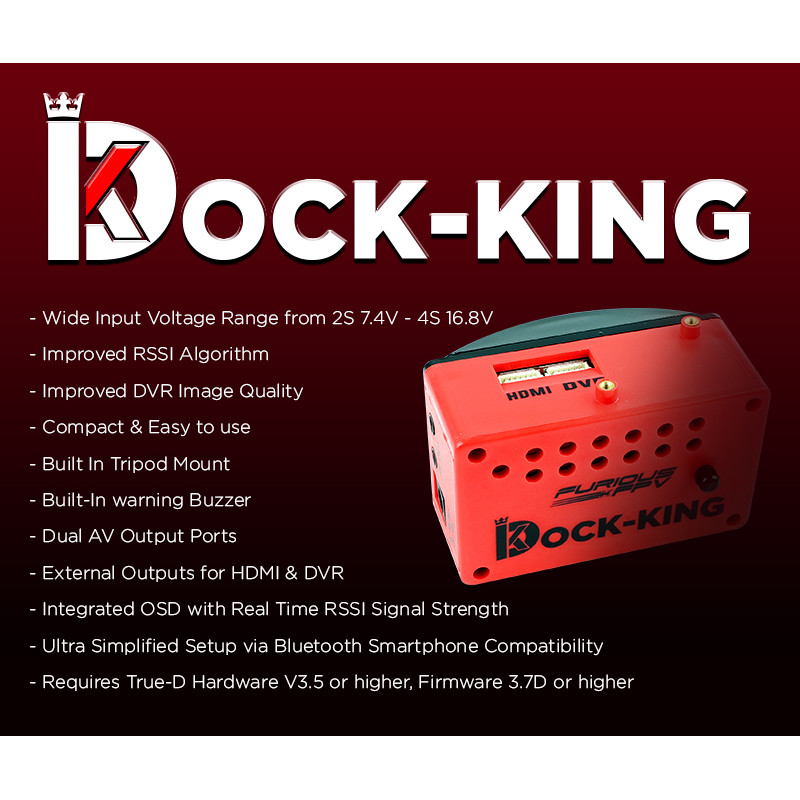

Features:
- Wide Input Voltage Range from 2S 7.4V - 4S 16.8V
- Improved RSSI Algorithm
- Improved DVR Image Quality
- Compact & Easy to use
- Personal race timing system

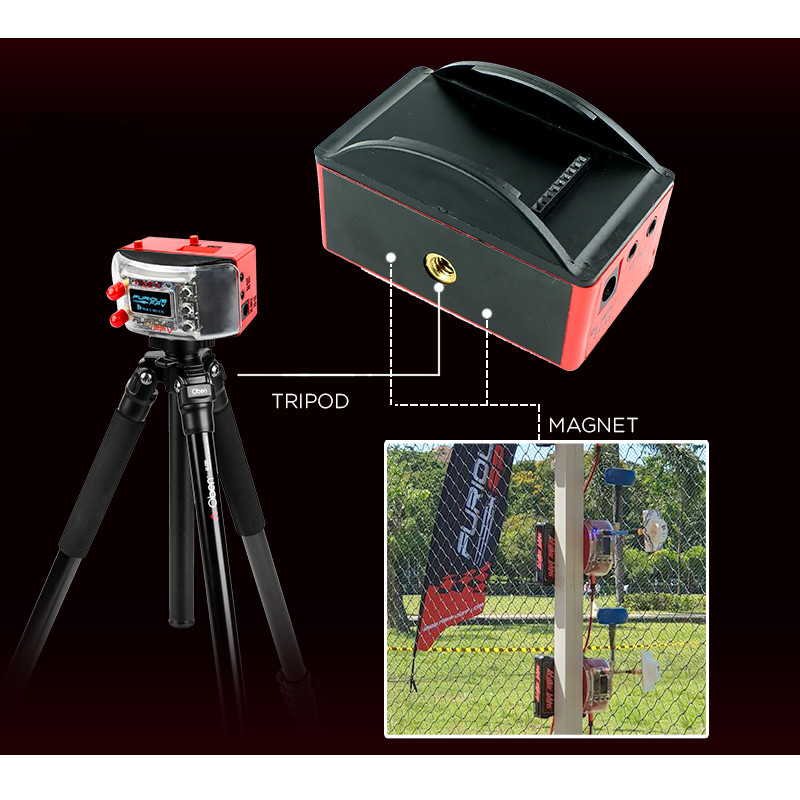

- Built In Tripod Mount
- Built-In Warning Buzzer
- Dual AV Output Ports
- External Outputs for HDMI & DVR (sold separately)
- Integrated OSD with Real Time RSSI Signal Strength
- Ultra Simplified Setup via Bluetooth Smartphone Compatibility
- Requires True-D Hardware V3.0 or higher, Firmware 3.7D or higher
Integrated OSD with Dual Antenna Feedback - Directional Nirvana.
Maximize
your FPV experience with ultra clear video via the dual antenna
feedback system. This dual feedback system allows you to monitor the
signal strength of both antennas in separate fashion, allowing the very
best direction to be chosen, along with the best antenna to be utilized.
Optimal Placement - Video Perfection.
Instead
of relying on the movement of your head to dictate signal strength, you
can now choose the best placement of your receiver system via the Dock
Ground Station. This will optimize your video quality with far less
video dropout or compromise, allowing you to focus on your flight
without having to guess where to "look" to better your video quality
& clarity.
Dual AV Output Ports - Sensory Delight.
Utilize
your DOCK-KING to the max with dual AV ports, allowing you and your
spotter to see the very same zero compromise FPV video feed.
HDMI & AV Output - Ready To Rock.
Pair
the DOCK-KING ground station to any high end goggle set of your choice,
with direct compatibility with the FatShark Attitude V3, Transformer,
HD, or any other goggle system that accepts HDMI input capability. HDMI module is sold separately.
Battery Voltage Info with Buzzer - Stay In the Know.
Integrated
within the OLED screen of the TRUE-D system, you can keep up to speed
on critical battery voltage. When the voltage gets too low, the built in
warning buzzer is there to remind you that the DOCK-KING is ready for a
recharge.
Personal Lap Time Functionality - Push Your Limits.
Keep
tabs on your laps with the built in personal lap time function,
allowing you to track your best laps without the need of a separate RF
timer, thus simplifying your practice.
Smartphone Configuration Ready - The Ultimate In Simplicity.
Setup
is a breeze with full smart phone configuration. Utilizing Bluetooth
capability, there is no PC required, allowing on the fly adjustments
with zero hassle.

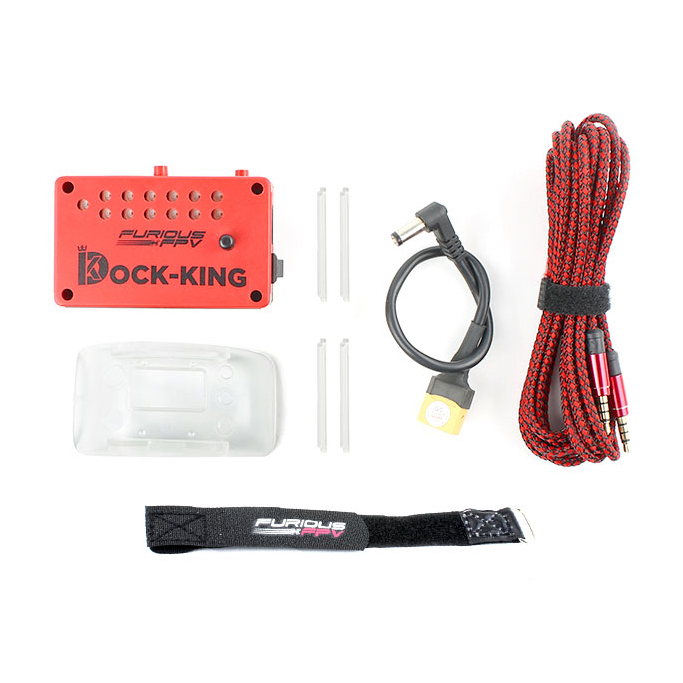

Package includes:
- FuriousFPV Dock-King Ground Station
- True-D V3.5 cover (FPV-0253-S)
- Cables
+ AV Cable (Jack 3.5mm 4 poles)
+ XT60 to DC cable
- Battery strap
- Portable User Manual
