FPV Piggy OSD V2
Our
team at Furious continues to push the boundaries of FPV flight with an
obsessive goal of innovation without compromise. As we push the limits of
innovation and design, our latest project comes to light, offering massive
levels of flexibility, function and space saving goodness.
Enter
the Furious FPV Piggy OSD - our latest creation aimed at revolutionizing

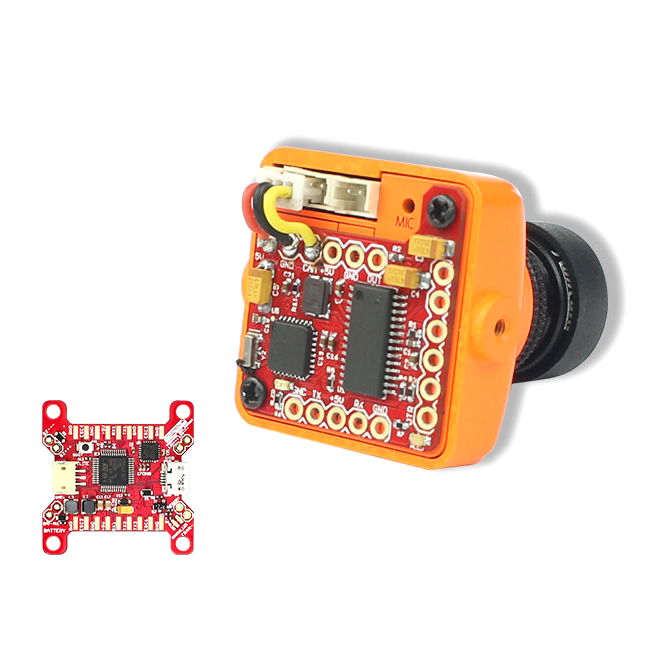

integration like never before. The Piggy is designed to piggyback onto popular
camera systems, such as the HS1177, HS1190, Foxeer and Runcam camera systems.
Once the simple integration is accomplished, the Piggy OSD coalesces with the
KOMBIN or other favorite FC's, adding incredible levels of programming delight.
Take
your favorite camera systems to epic levels of functionality with the Piggy
OSD. This system was designed for the ultimate in simplicity and integration,
offering all new capabilities that mesh perfectly with your FPV systems in
place.
Power
consumption of Piggy OSD is 40mA, measured at 16.6V
Specifications:
- Power input: 5V

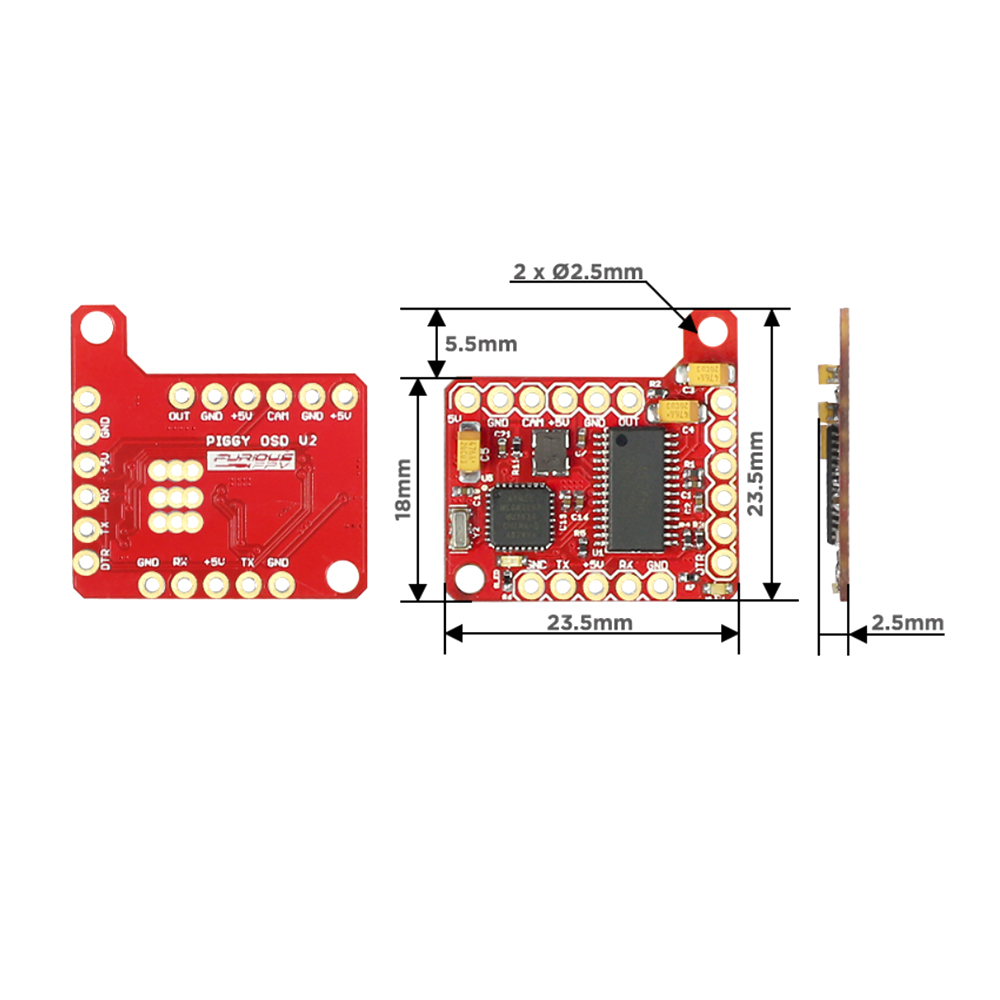

- Size : 23.5 x 23.5 x 2.5 MM
- Weight: 1.1 Gram
Usage: Only for flight controllers
that run Betaflight. If you use other flight controller, the unit also
can be updated new firmware using FTDI tool.
Features:
- New version with smaller size and lighter weight
- Apply new low power consumption chip delivering better performance
- Compatible with flight controls that run Betaflight
- Ability to setting and tunning PID for FC via Transmitter TX
- Ability to configure OSD via Betaflight serial passthrough
New design layout can fit with most of
FPV Cameras such as:
Runcam:
- Runcam Swift
- Runcam Swift 2
- Runcam Eagle
- Runcam Rotor Riot
- Runcam Owl Plus
- Foxeer:
- Foxeer HS1177
- Foxeer Night Wolf
- Foxeer Arrow
- Foxeer Monster
Another cameras:
- Lumenier
- TBS Zerozero V2
