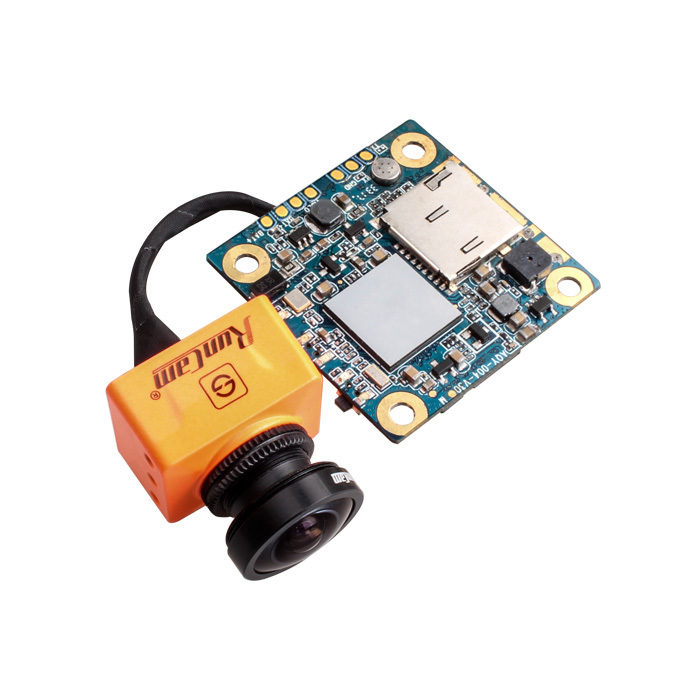

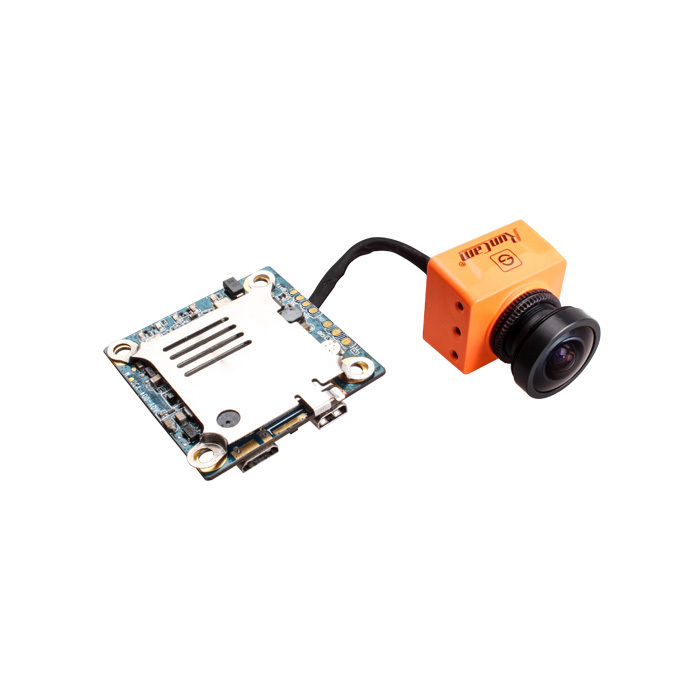

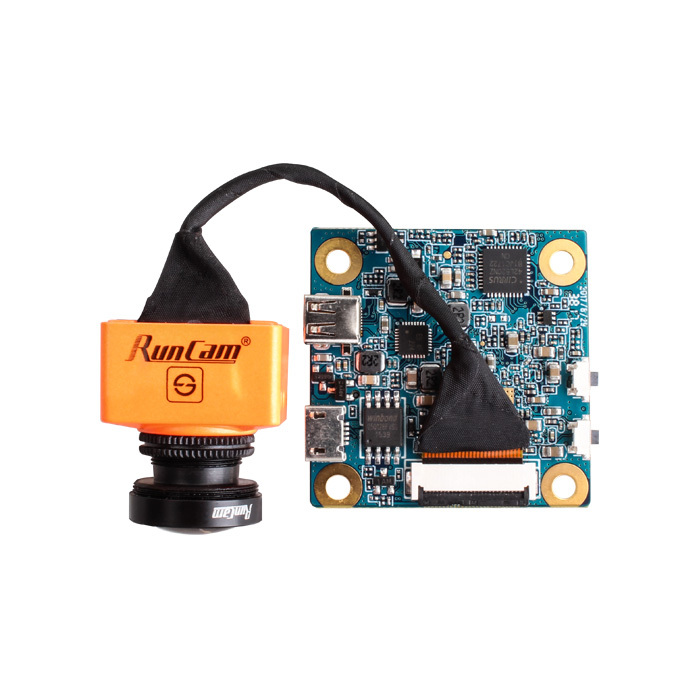

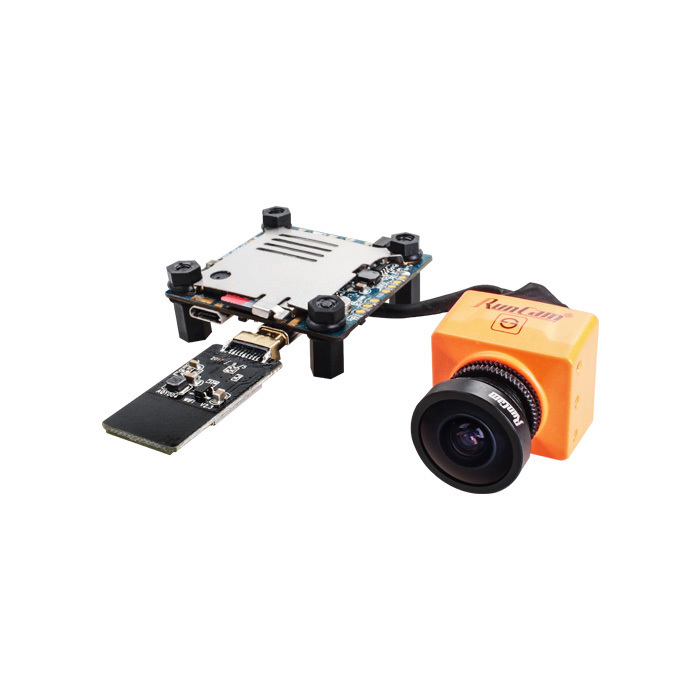

RunCam Split 2 (Includes Wifi Module & 2.5mm Lens)

RunCam Split 2 FPV Camera. Kit includes WiFi module and RC25G 2.5mm FOV140 lens.

Lens Specification:
2.5mm FOV 140 Degree (7.1g)

Features:
- 1080P/60fps HD recording & WDR FPV camera
- Ultra light weight (21g)
- Low latency TV-OUT
- Real-time audio output
- Power-off protection for video files
- Wide voltage (5-17V)
- Anti-drop SD card

Package includes:
1 x RunCam Split 2 FPV camera
1 x Wifi module
1 x SD Card protector
1 x Aluminum mounting bracket
1 x ABS Bracket
1 x Set of Screws
1 x 180mm Lens extension cable
1 x TV out & power USB Cable
1 x 3pin silicone cable (female)
1 x Manual

FOV Angle of Field	FPV FOV 130° / Recording FOV 165°
Video Resolution	1080@60fps / 1080@30fps / 720@60fps
Video Files	MOV
Image Resolution	2 Megapixels
TV Output	NTSC (720*480) / PAL (720*576) Switchable
Real-Time Audio Output	Yes
Interface	Micro USB / UART
Max Micro SD Card Supported	64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II)
WiFi Module	Support (Removable)
Dimensions	PCB 38*38mm / Lens Module 22*20mm
Power Input	DC 5-17V/DC 5V(USB)
Working Current	650mA @5V / 270mA @12V
Weight	21g/23g(Plus Wifi Module)

Download Manual
