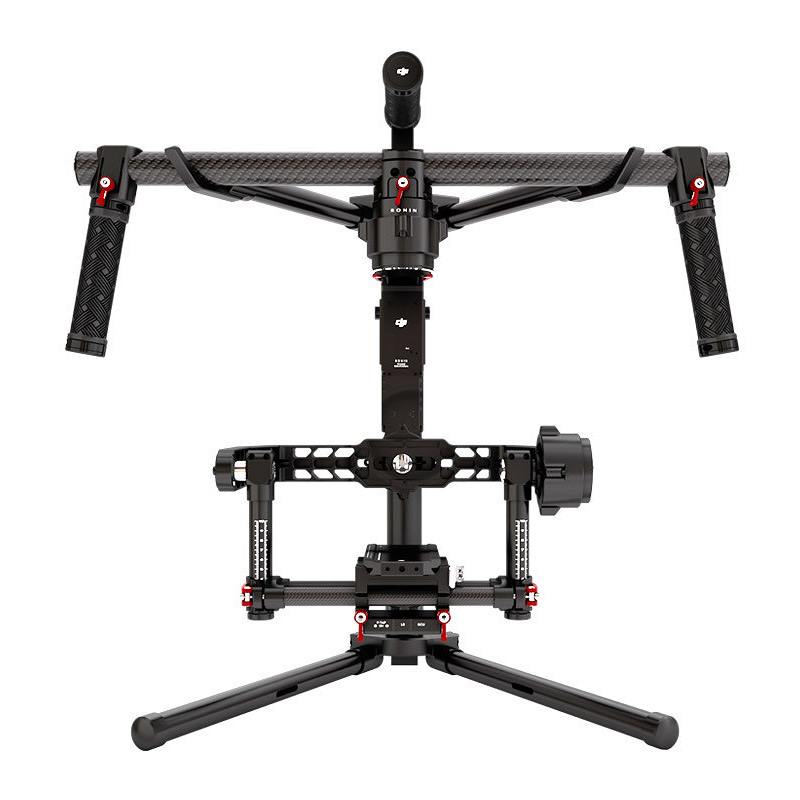

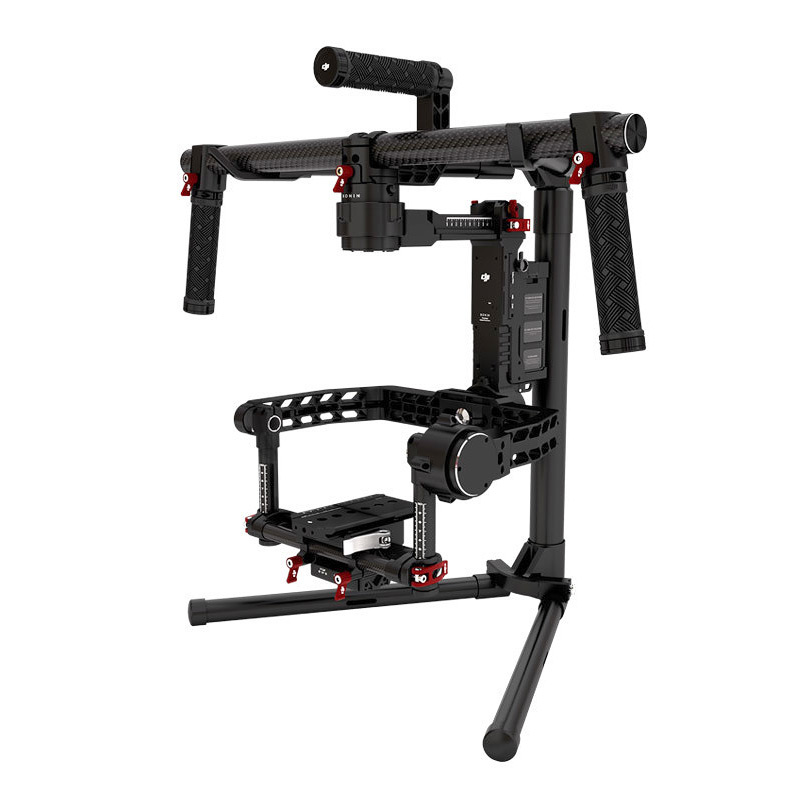

DJI Ronin Handheld Gimbal System

DJI Ronin 3-axis stabilized handheld gimbal system has been developed for the filmmaking professional. High build quality ensures the Ronin meets the demands of rigorous handheld use in testing environments. Custom built ultra-fast processors, extremely accurate sensors, and advanced algorithms, together with fanatical attention to detail has created a system that offers remarkably precise manipulation of control angles. This puts world-class, industry leading technology into your hands and creates unparalleled image stabilization.

Tool Free Adjustment

A built-in balance adjustment system means no tools are needed for setup and adjustment. Changing the setup for different camera arrangements is quick and simple.

Simple 5-Minute Setup

With a little practice, the Ronin takes less than 5 minutes to set up and balance whenever the camera configuration is changed. The built-in ATS (Auto Tune Stability) technology intelligently tunes the Ronin to your camera rig at the touch of a button.

Supports a Multitude of Cameras and Lenses

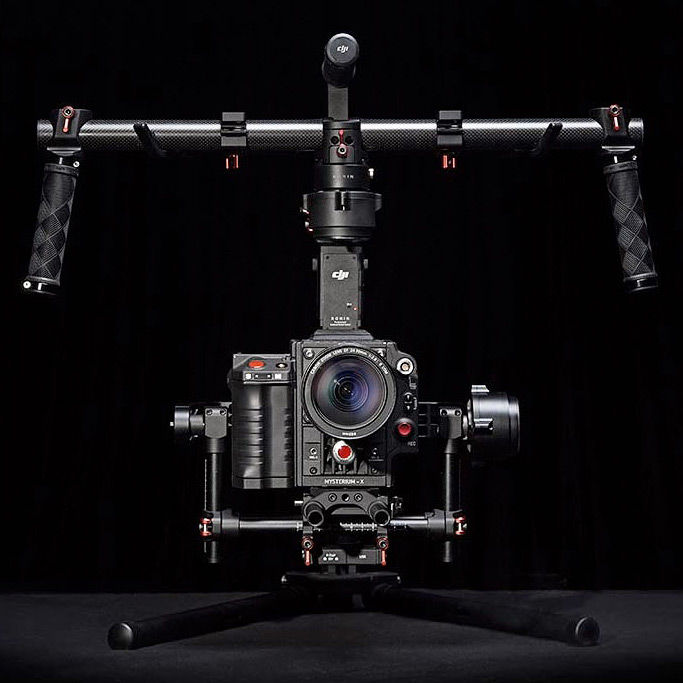

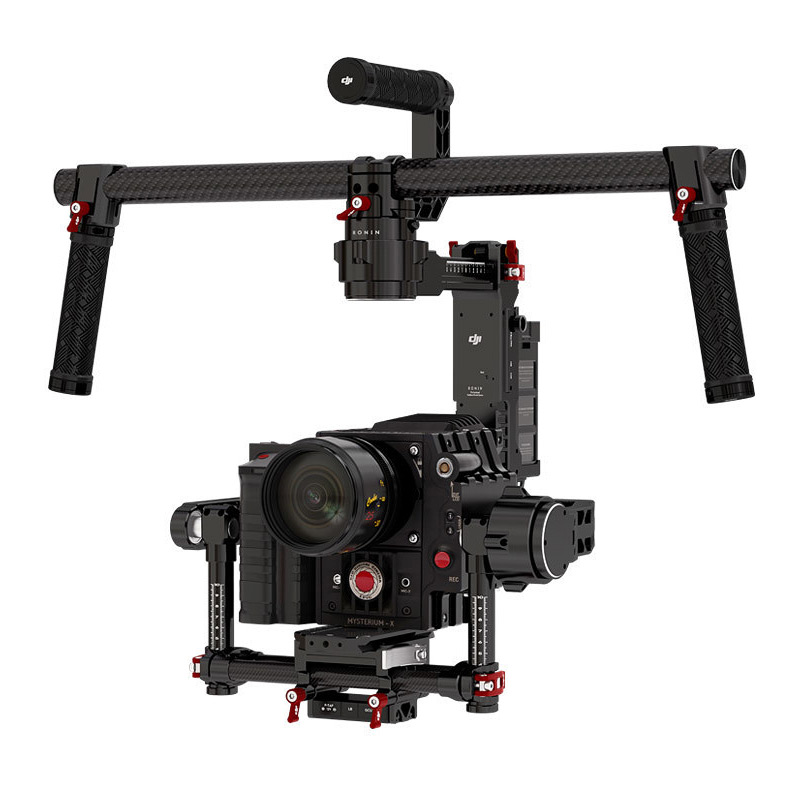

The Ronin is not customized for any specific camera. It can be easily adjusted to carry everything from small & light Micro-Four-Thirds cameras to heavier systems like the Red Epic.

Built-In Functions

1. Three Operation Modes
• Underslung Mode
• Upright Mode
• Briefcase Mode
2. Built-in independent IMU module
3. DJI Specialized Gimbal Drive Motors with Encoders
4. Bluetooth Module
5. USB Connection
6. 2.4GHz Receiver
7. Temperature Sensor
8. DJI Advanced 32-Bit DSP Processor
9. D-Bus/PPM Receiver Supported

Working Performance

• Load Weight (Reference Value): 7.25kg (16lbs)
• Controlled Angle Accuracy: 0.02°

Maximum Controlled Rotation Speed:

• Pan axis: 90°/sec
• Tilt axis: 100°/sec
• Roll axis: 30° /sec

Controlled Rotation Range

• Pan axis control: 360°
• Tilt axis control: Up 45° to Down 120°
• Roll axis control: ± 25°
